Samsung Small Signage QBC 13" / QBC-T 13" Touch
13-inch FHD small signage in touch (QBC-T) and non-touch (QBC) versions: 500 nit, dual-band Wi-Fi and Tizen 7.0.
Samsung

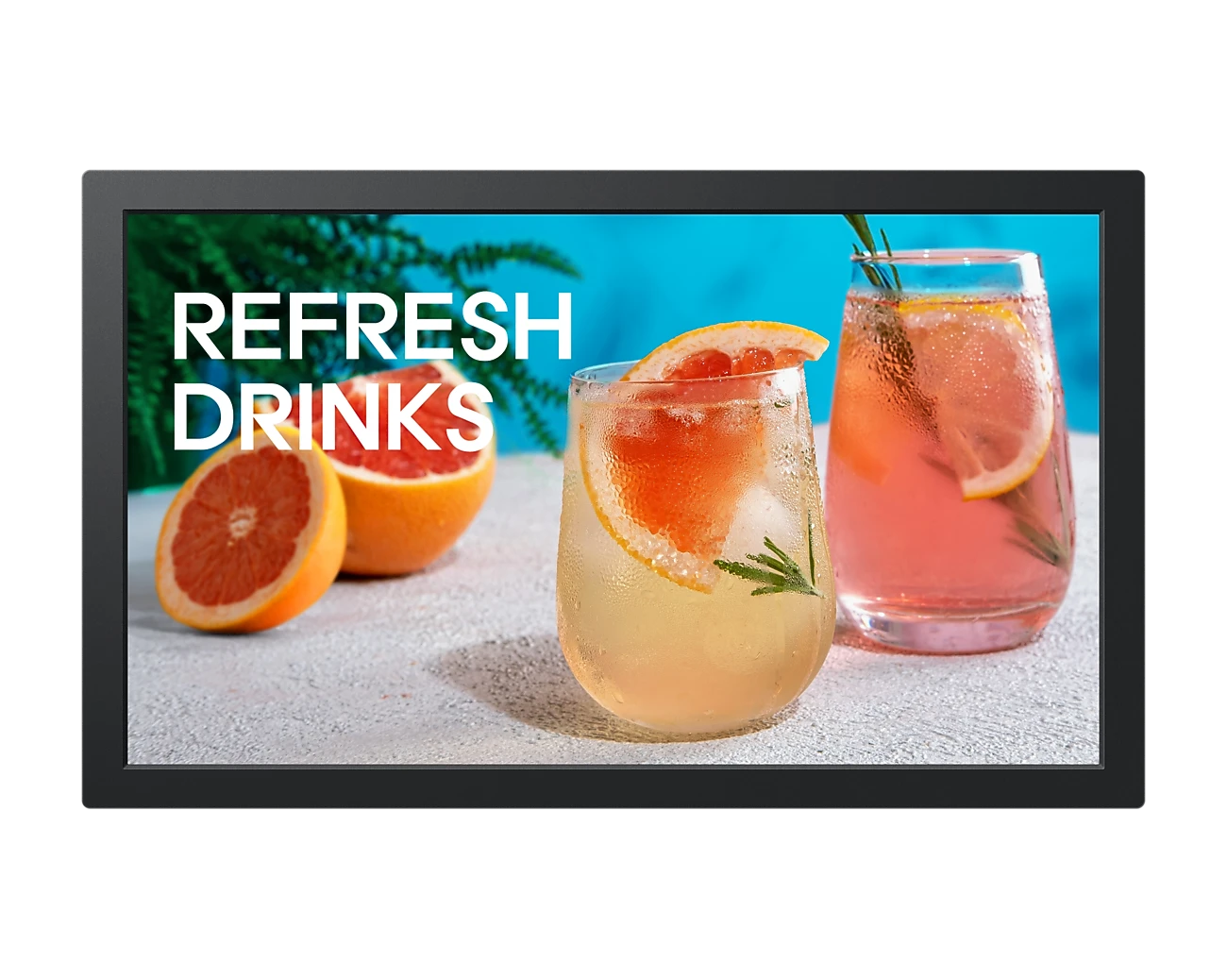

The 13-inch QBC is a small signage display designed for compact spaces such as checkouts, shelves, meeting room entrances and receptions. The same series is offered as QBC-T with a capacitive touch panel, letting customers interact with the screen directly. FHD (1,920 x 1,080) resolution and 500 nit brightness deliver clear images at close range. Home UI, dual-band Wi-Fi (2.4GHz + 5GHz), SmartThings Pro and Samsung VXT make setup and remote management easy.
Featured features
Touch (QBC-T, capacitive) and non-touch (QBC) versions
500 nit brightness
16/7 operation support
Dual-band Wi-Fi (2.4 + 5GHz)
Tizen 7.0
SmartThings Pro and Samsung VXT

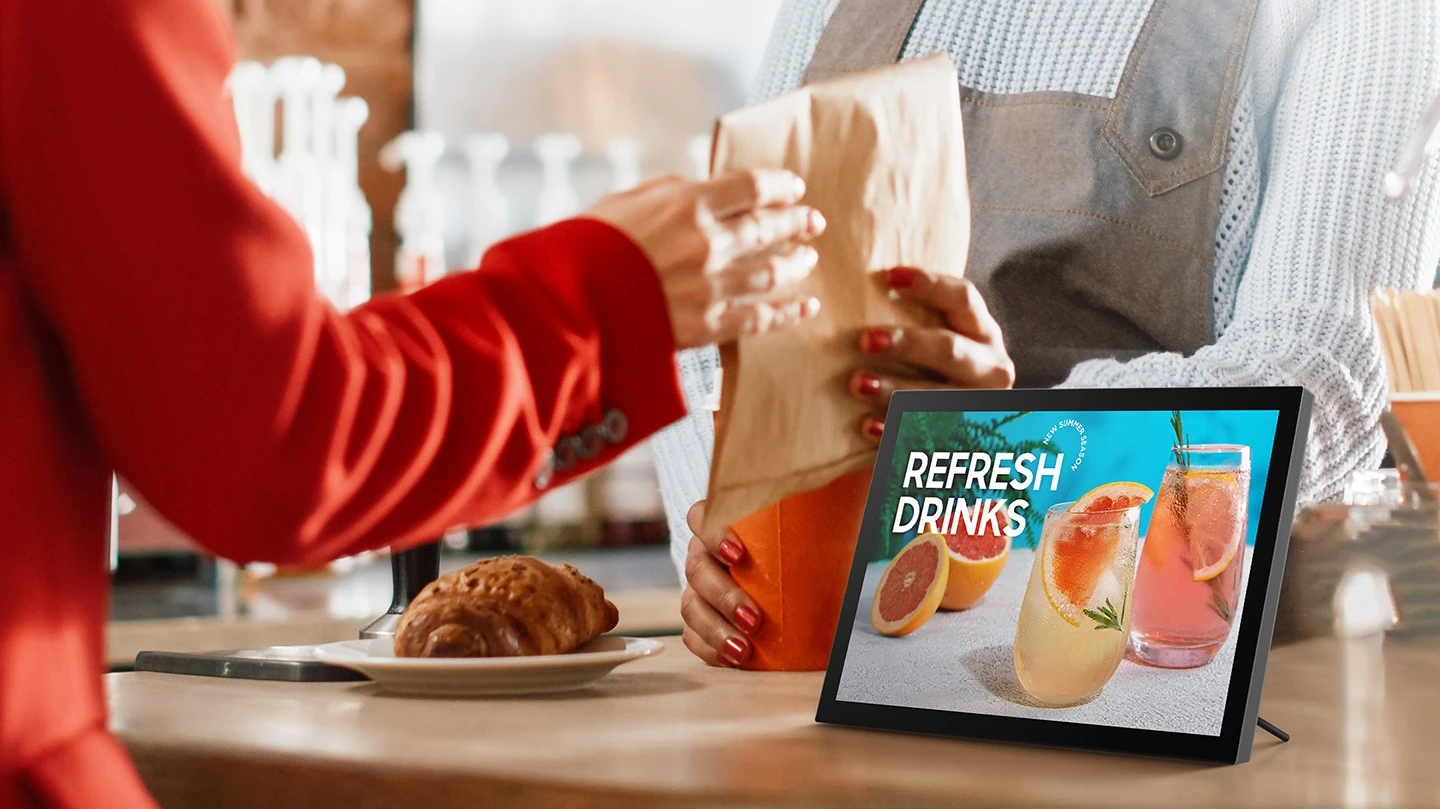

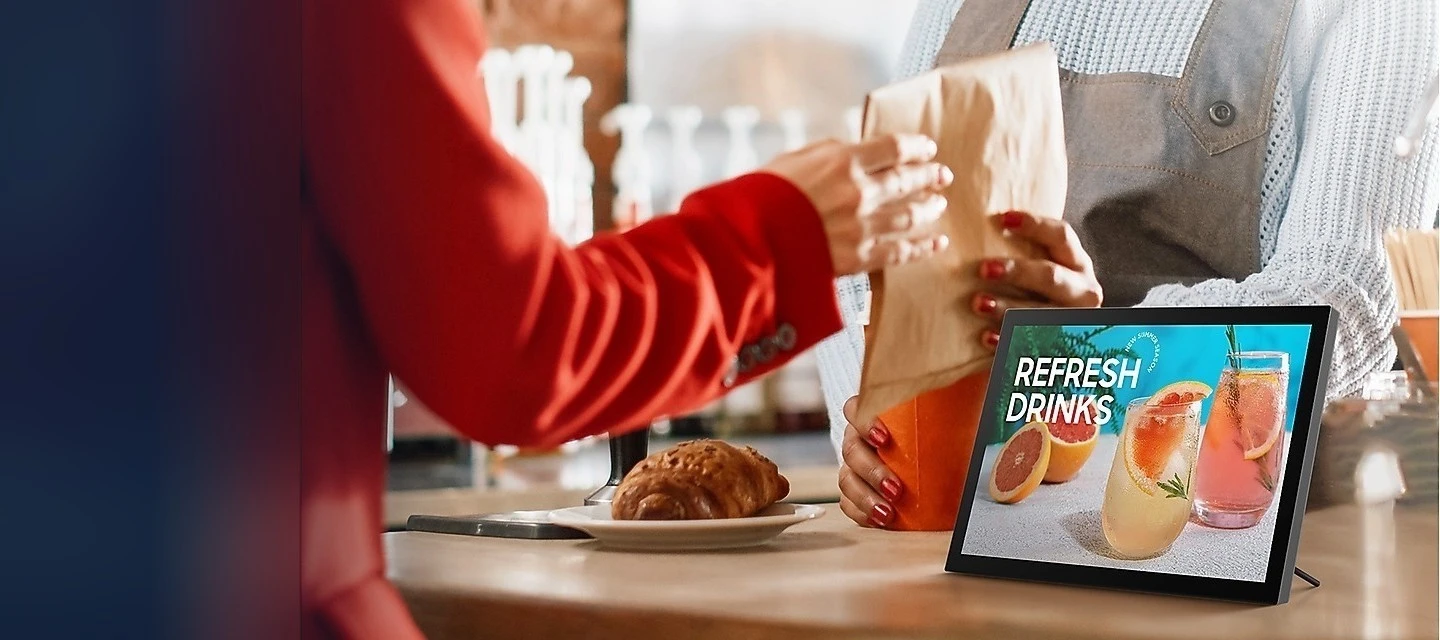

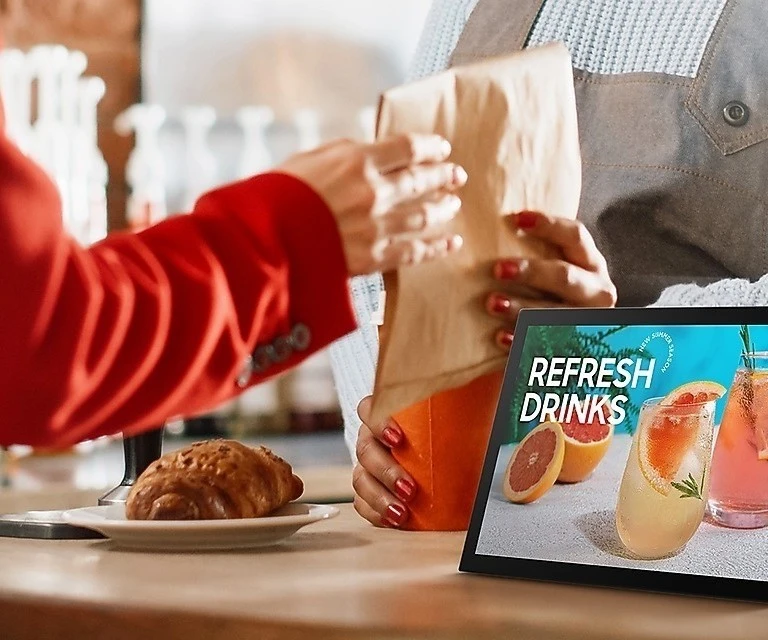

Effective display for compact places
Designed for tight business spaces, the 13-inch QB13C-T combines a space-efficient form with intuitive touch capability. Its responsive 10-point capacitive panel enables easy interaction, making it ideal for customer-facing displays, wayfinding, and compact digital signage. Slim, stylish, and versatile—it fits wherever communication matters.

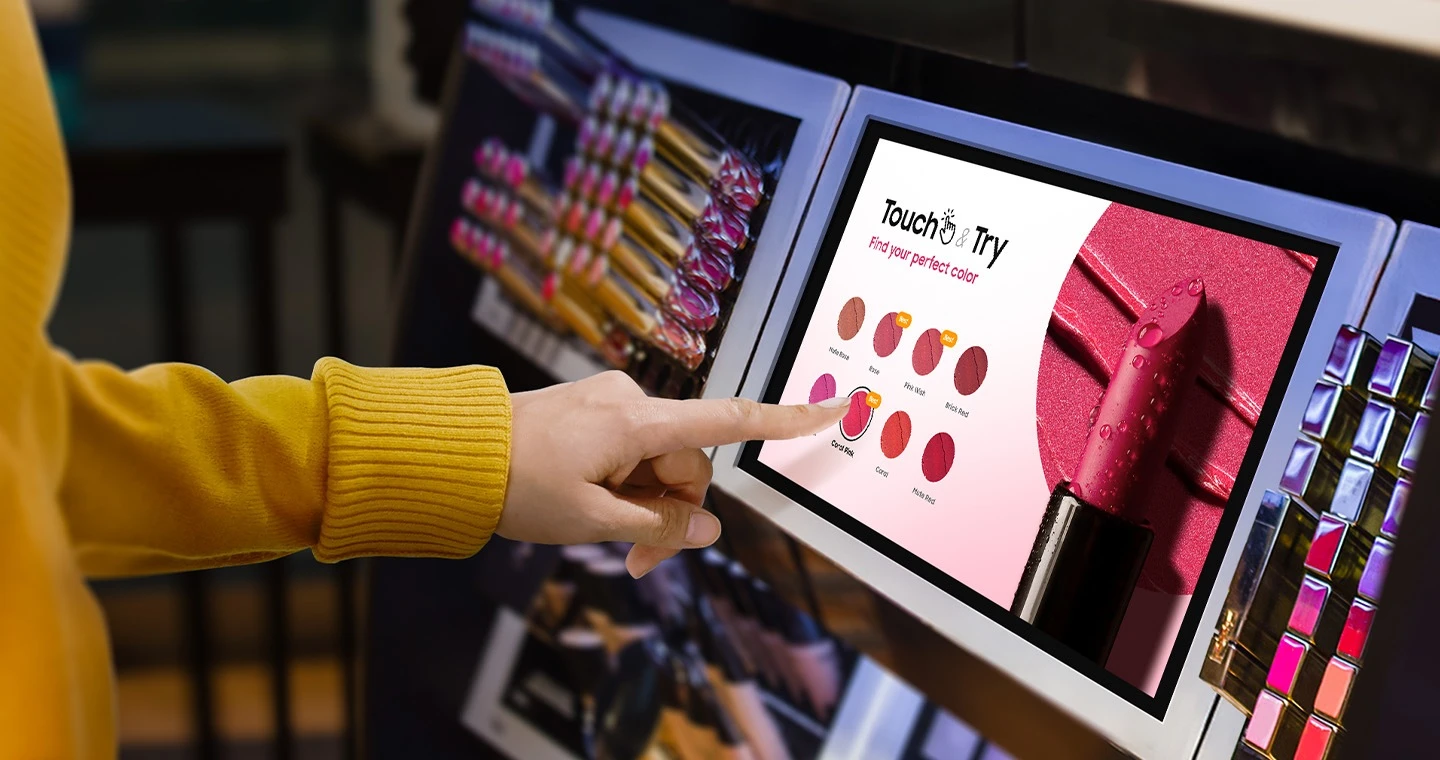

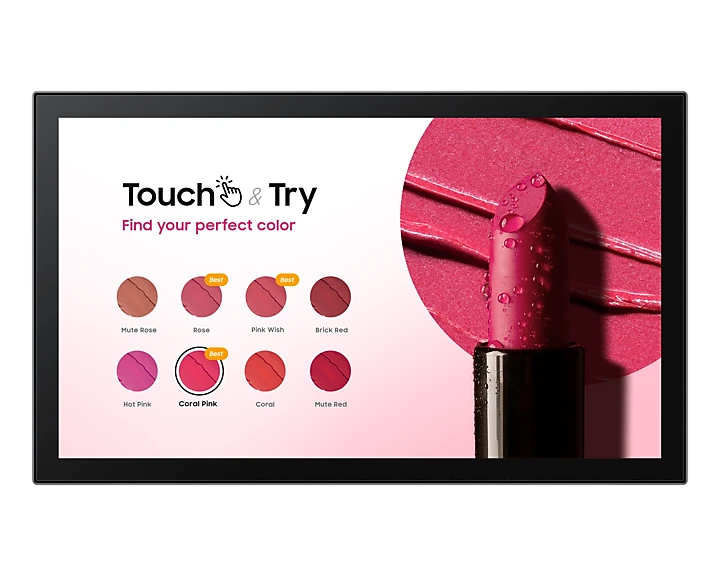

Interactive Touch Panel
Built for compact business spaces, the QB13C-T combines responsive multi-touch with a slim design. Its intuitive touch function make it easy to navigate menus, showcase products, and deliver interactive content. With support for up to 10 touch points, it’s ideal for environments where engaging, interactive experiences are needed in limited space.

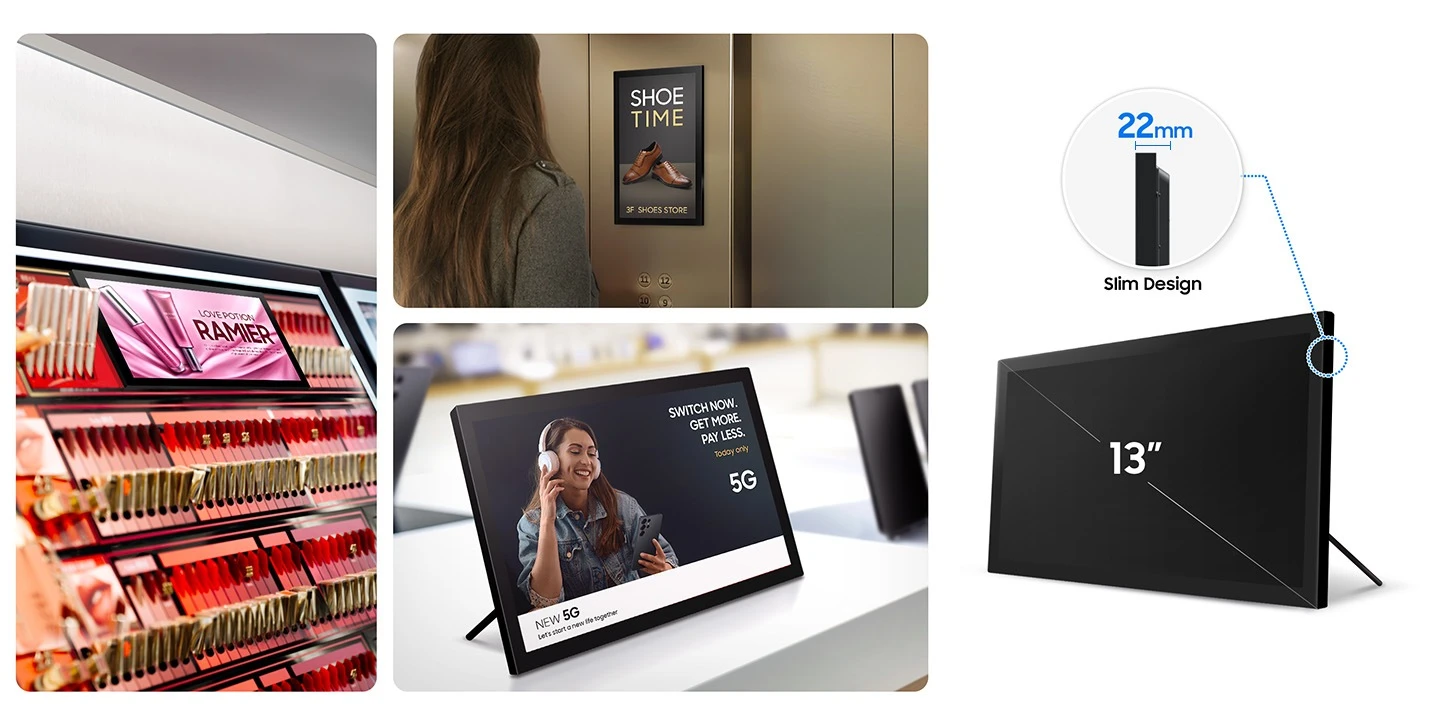

Compact 13" Size & Slim Design
Slimmer than ever at 22mm, the 13-inch compact display fits flawlessly in tight spaces, perfect for maximising visibility without hindering performance. Its smaller design packs the same reliable performance businesses demand, making it a smart choice for any space.

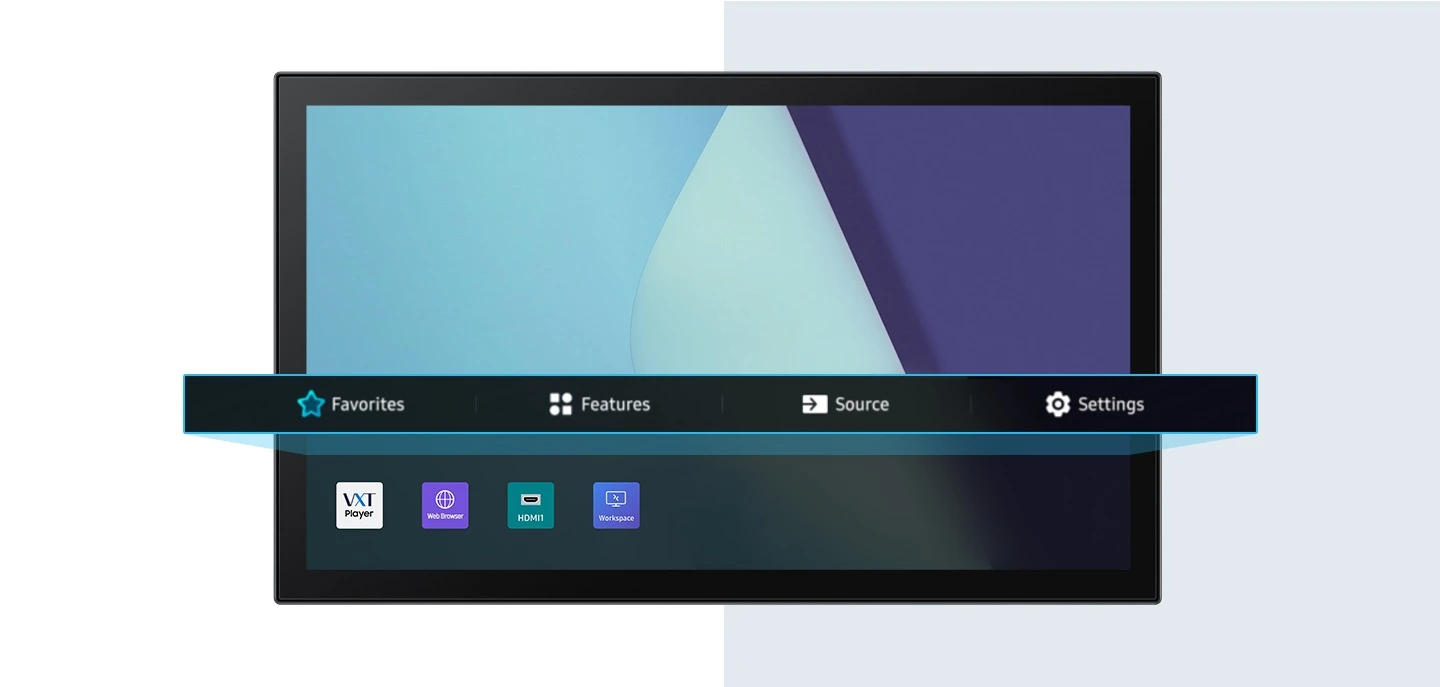

Home UI
The upgraded Home UI brings commonly used settings and sources together in a single, easy-to-access screen. Whether adjusting display inputs or managing device settings, users can navigate key tools faster—without digging through multiple menus.

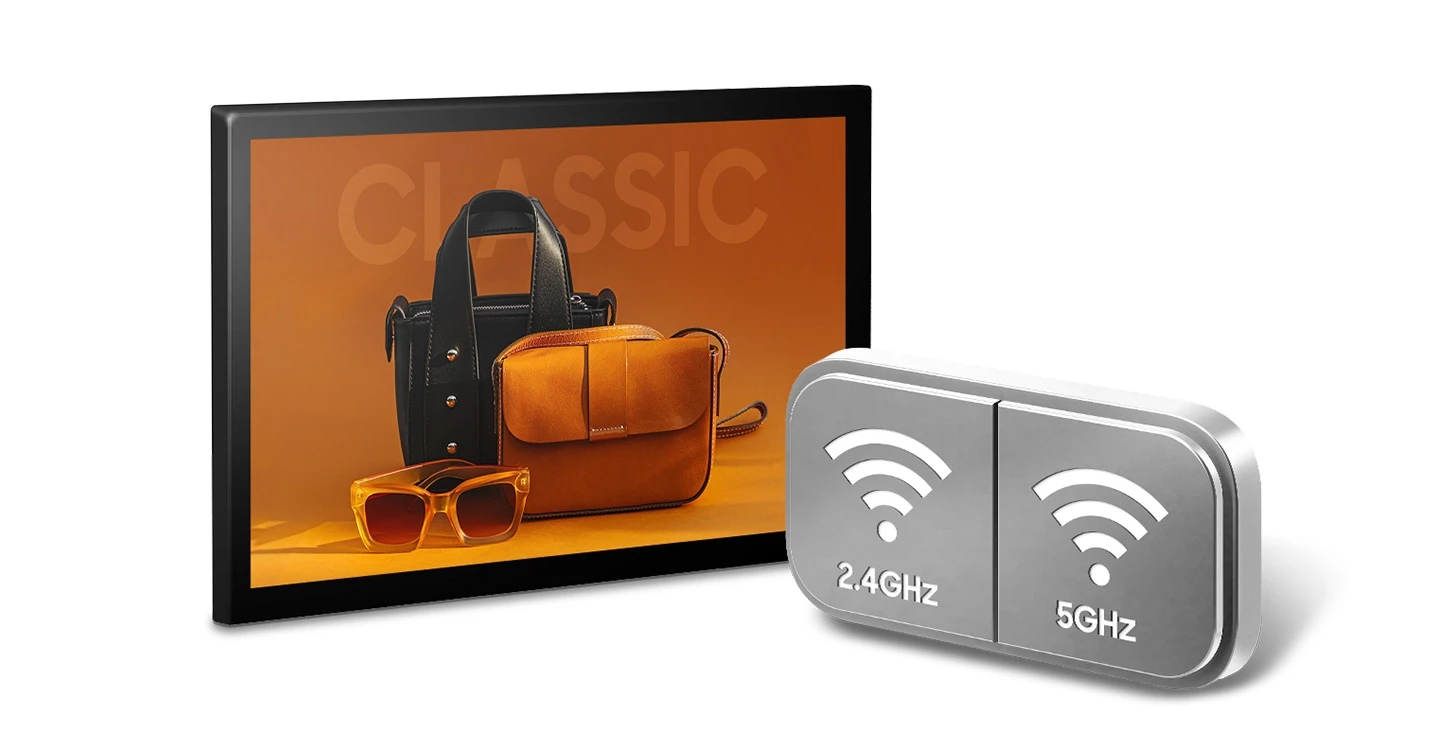

Dual Wi-Fi (2.4GHz + 5GHz)
QB13C-T supports dual-band Wi-Fi with both 2.4GHz and 5GHz frequencies, enabling faster network connections and higher data transmission speeds—especially in high-traffic areas.

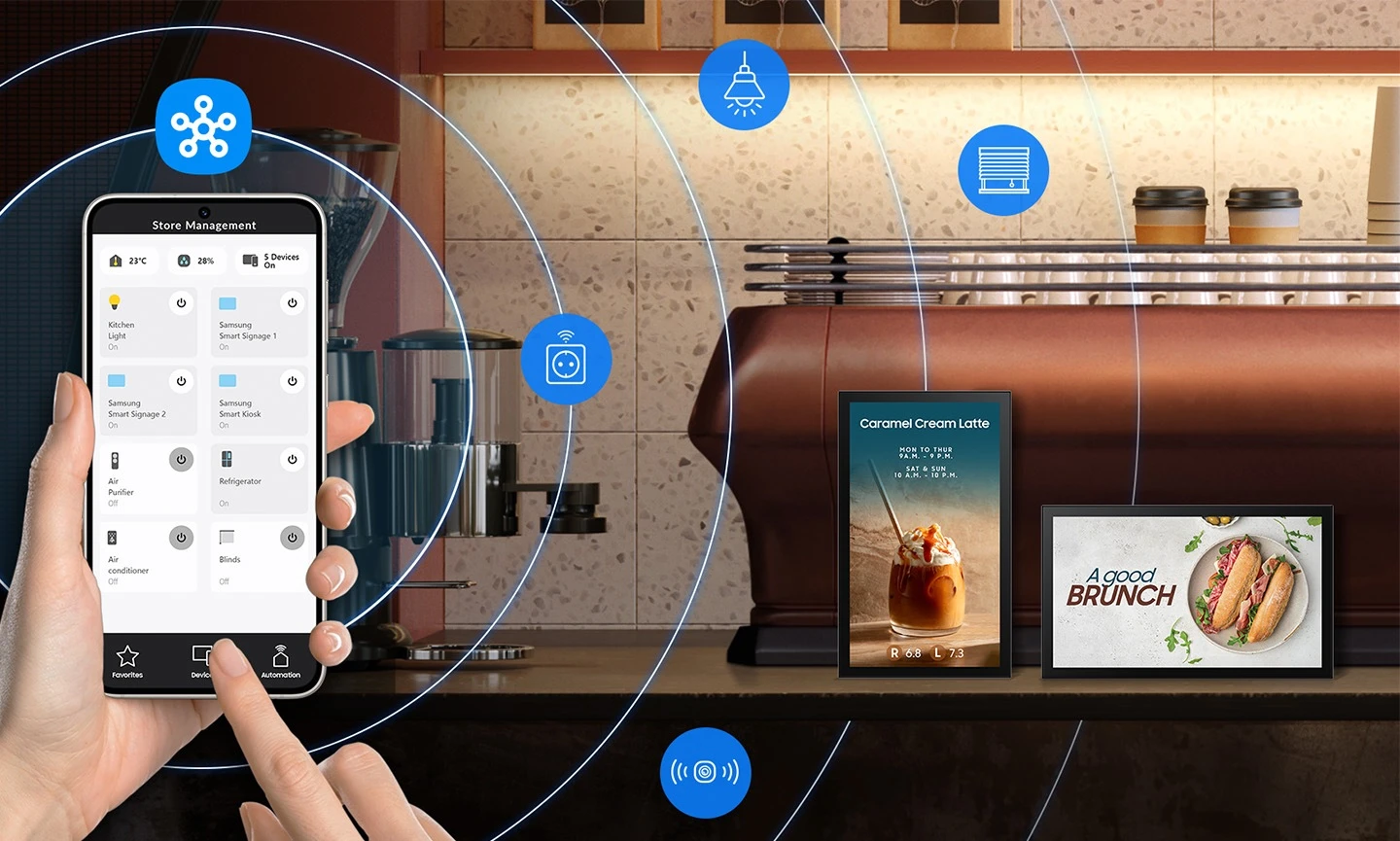

SmartThings Pro
SmartThings Pro brings IoT connectivity into Samsung signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.

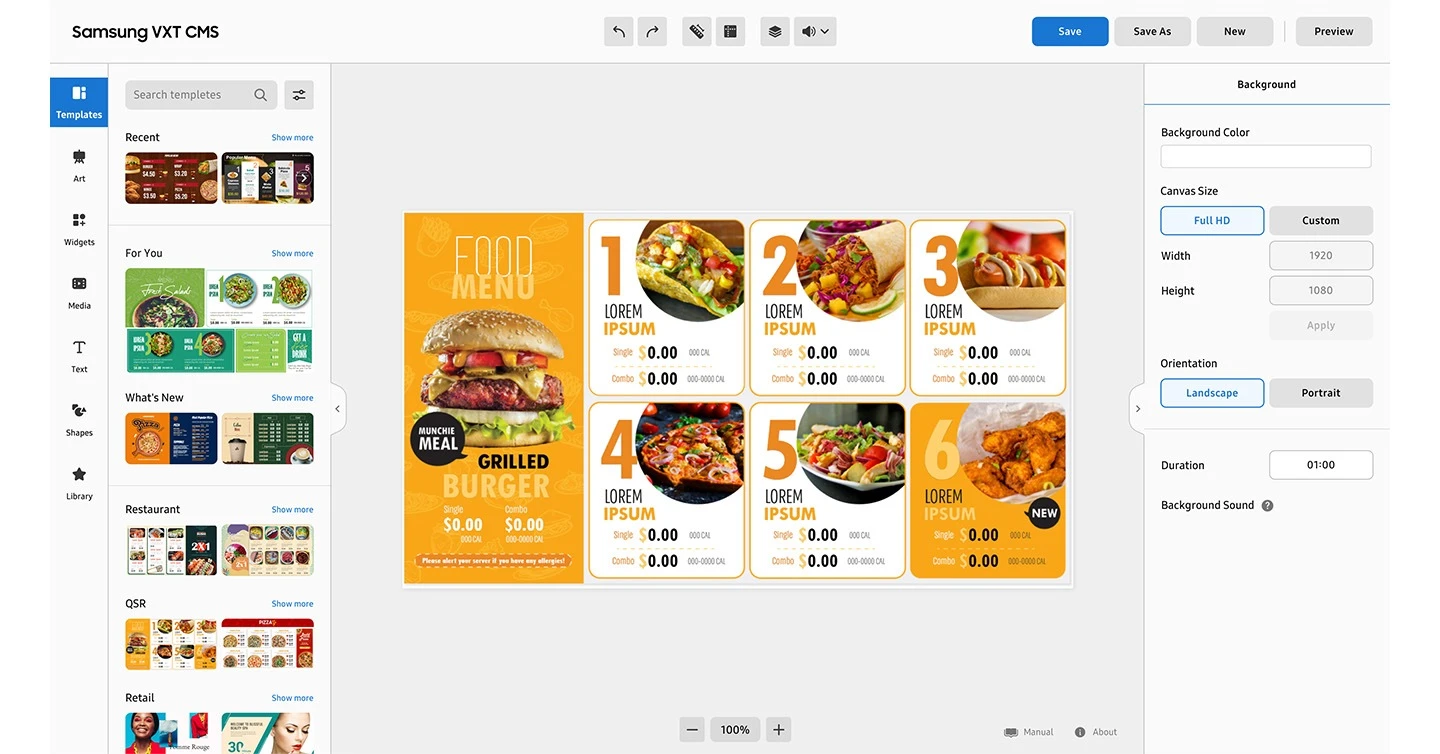

Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.
Choose size / model
Model code: LH13QBCEBGBXEN
Technical specifications
- Brightness (Typ) 500 nit
- Contrast Ratio 800:1
- Viewing Angle (Horizontal/Vertical) 170/170
- Colour Gamut 45 %
- Glass Haze 25 %
- H-Scanning Frequency 56 - 84.5 kHz
- USB 1 (Type C - Data transfer only)
- RS232 In Yes
- Power Consumption (On Mode) 35 W
- Set Dimension (WxHxD) 322 x 193.5 x 19.9 mm
- Set Weight 0.8 kg
- Package Weight 1.70 kg
- Humidity 10 ~ 80%, non-condensing
- Bezel Width 12.1
- Bezel Color Black
- Frame Material Non-Glossy
- Stand Inbox(Simple Stand) (2ea)
General product specifications
- Diagonal Size 13"
- Panel Type ADS
- Resolution 1,920 x 1,080
- Pixel Pitch (HxV) 0.153 x 0.153 mm
- Response Time 30ms
- Maximum Pixel Frequency 148.5 MHz
- V-Scanning Frequency 48 - 75 Hz
- Contrast Ratio (Dynamic) 10,000:1
- Operation Time Support 16/7
- HDMI In 1
- DP In No
- Version of HDMI 1.4
- Version of DP No
- IR In No
- Audio In No
- Audio Out Stereo Mini Jack
- RJ45 In Yes
- WiFi Yes
- Bluetooth Yes
- Power Supply AC100-240V 50/60Hz
- Power Consumption (Sleep Mode) 0.5 W
- Package Dimension (WxHxD) 520 x 64 x 238 mm
- Temperature 0 - 40 ℃
- VESA Mount 100 x 100 mm
- Mount WMN-2090SC
- OS Version Tizen 7.0
- Flash Memory Size 8GB
- EMC Class B
- Safety 60950-1, 62368-1
