Samsung Indoor LED IEA
Indoor LED in P1.5, P2.0 and P2.5: easy, cost-saving installation, flexible design, accurate colour at low brightness and UHD delivery.
Samsung
IEA is an LED display series for retail, corporate and public indoor spaces, offered in 1.5 / 2.0 / 2.5 mm pixel pitch. Easy, cost-saving installation and a flexible design adapt to different screen sizes.
Clearly refined visuals, accurate colour in low-brightness areas and fine-tuned uniformity deliver a consistent picture. Streamlined UHD content delivery and managing content and devices from anywhere simplify operation.
Featured features
Easy, cost-saving installation
Flexible design
Accurate colour at low brightness
Fine-tuned uniformity
3,840 Hz refresh rate

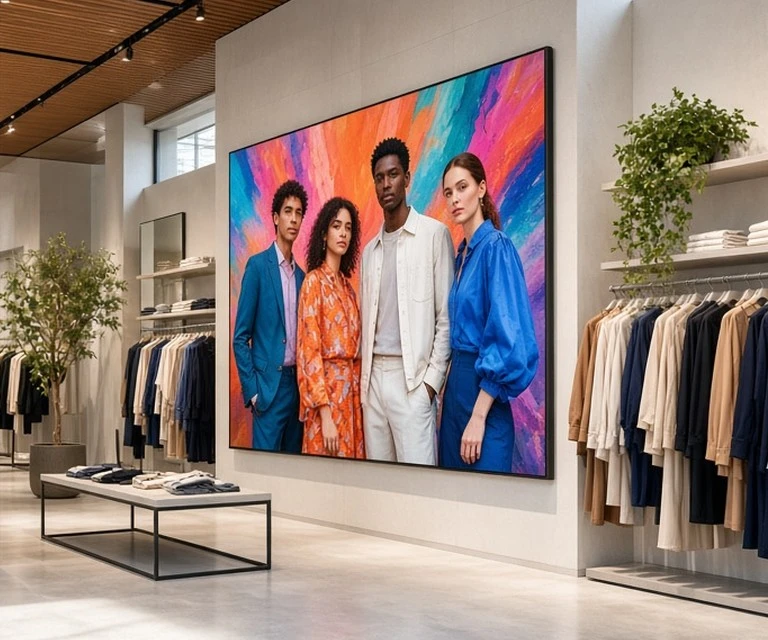

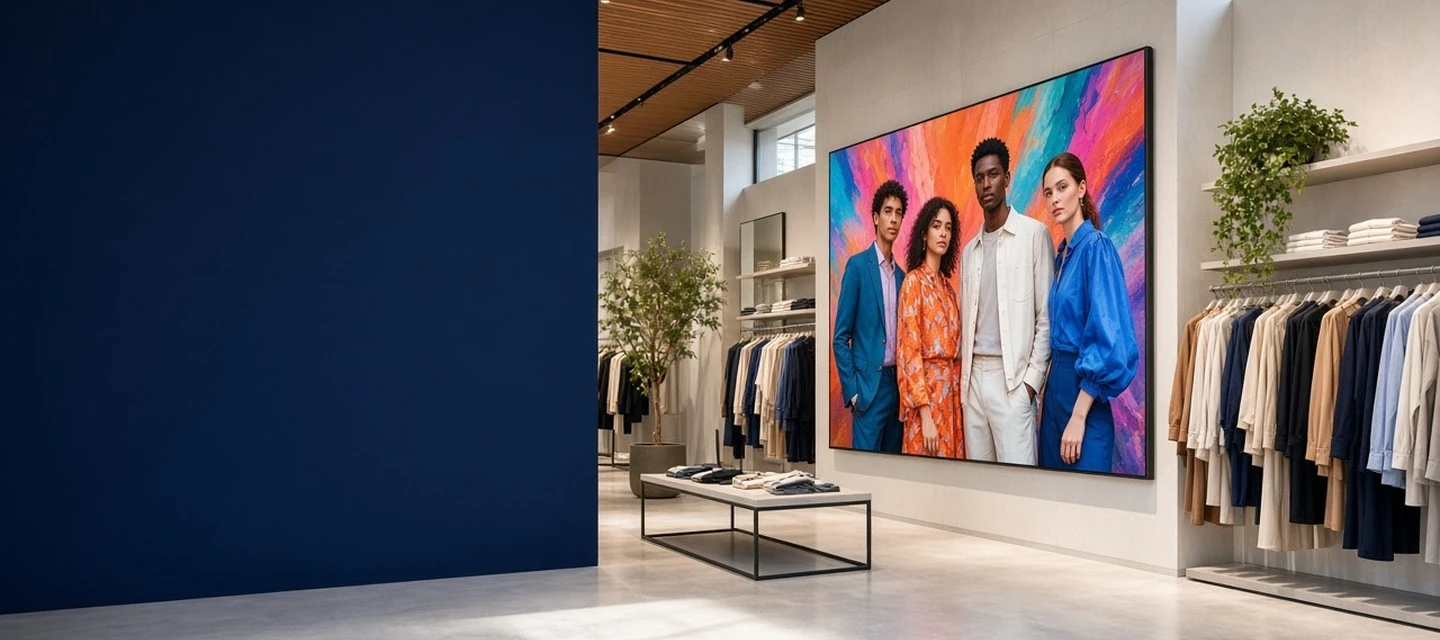

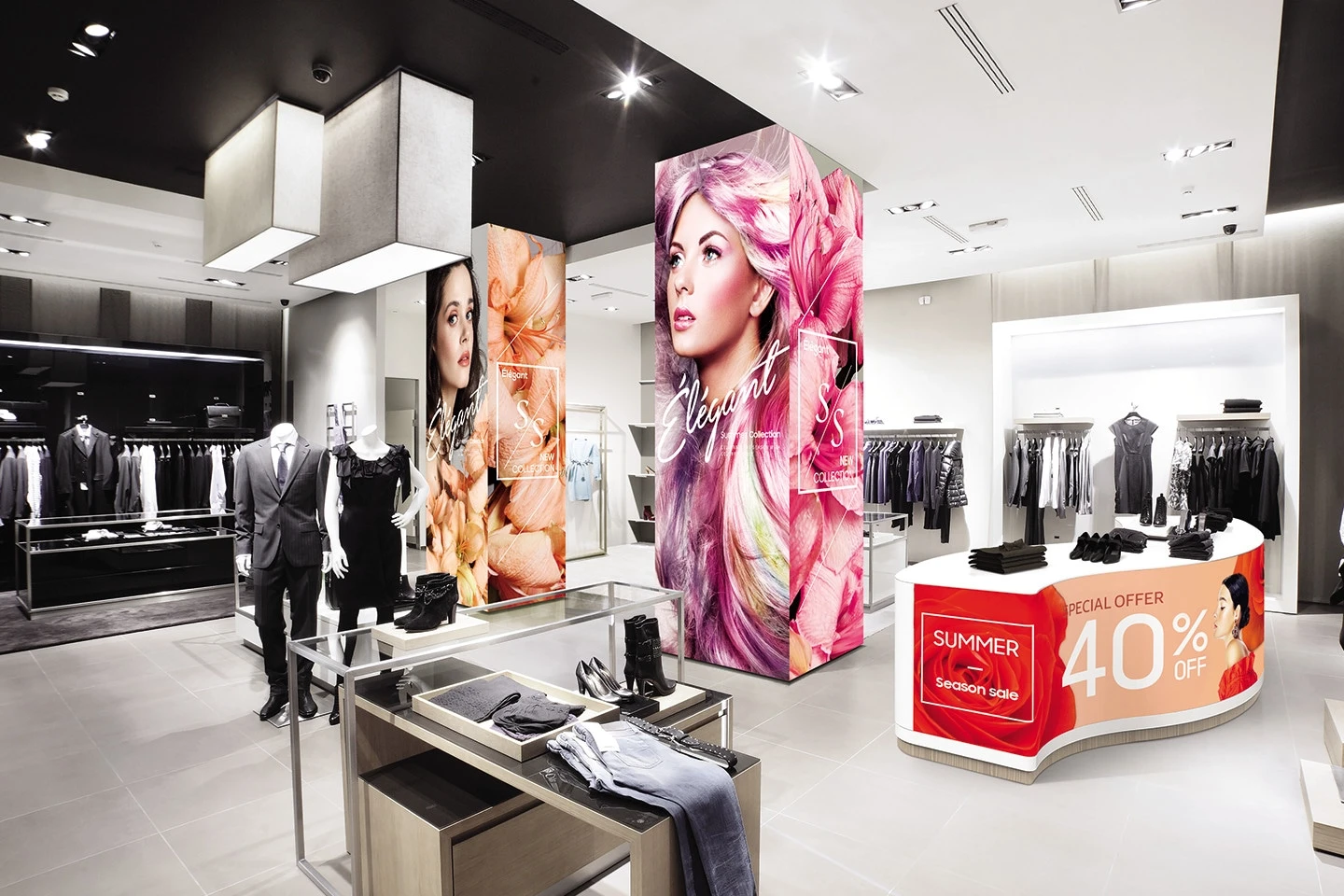

Captivate potential customers
Samsung’s IEA series LED displays deliver stunning picture quality at a cost-efficient price point. These displays can be custom-fit for specific space requirements so that customers can enjoy a more immersive experience.

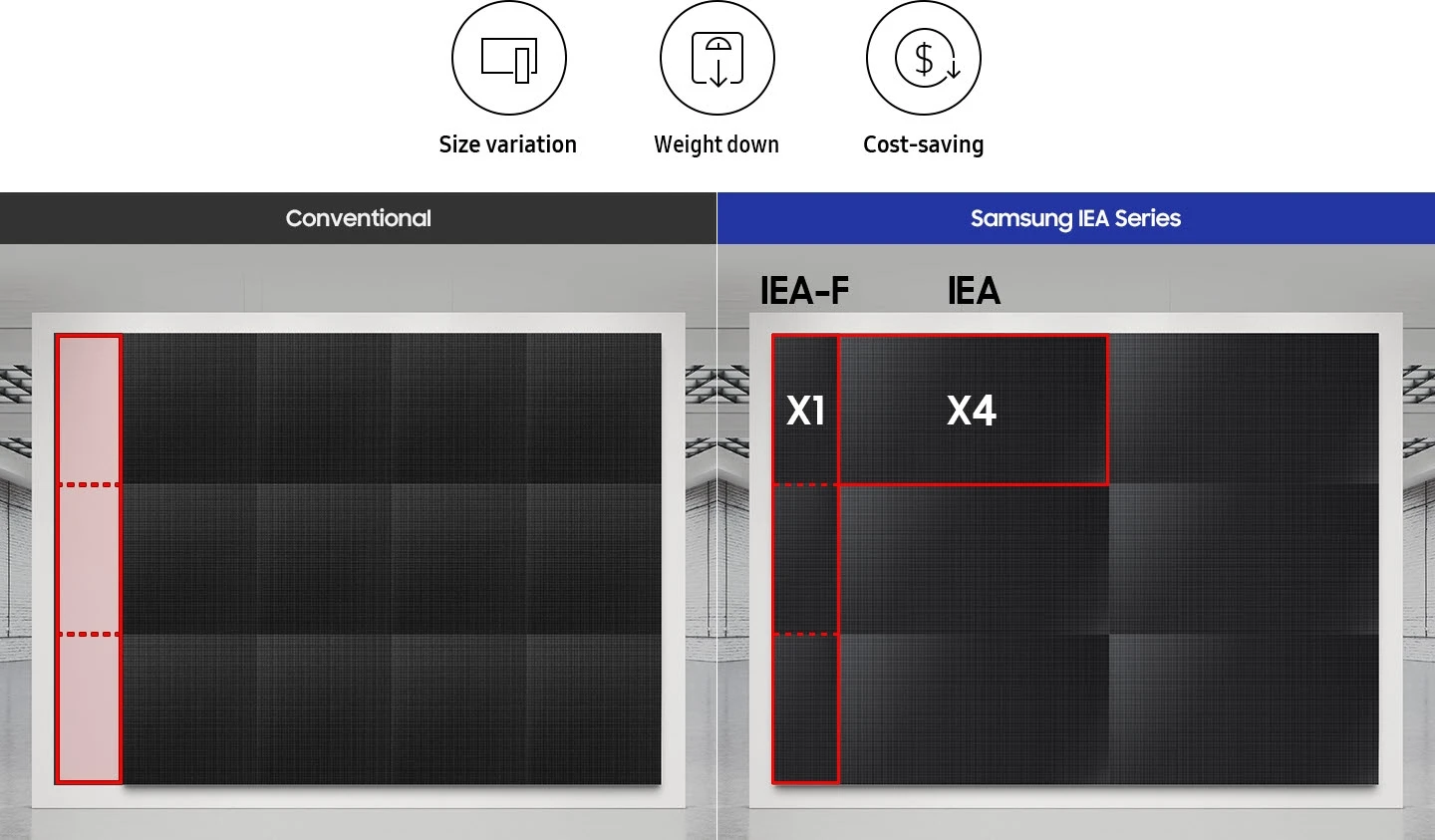

Easier, cost-saving installation
The IEA series supports two cabinet types. One features a larger, lighter screen compared to conventional cabinets, simplifying installation. The other is a quarter of the size and provides more design flexibility.

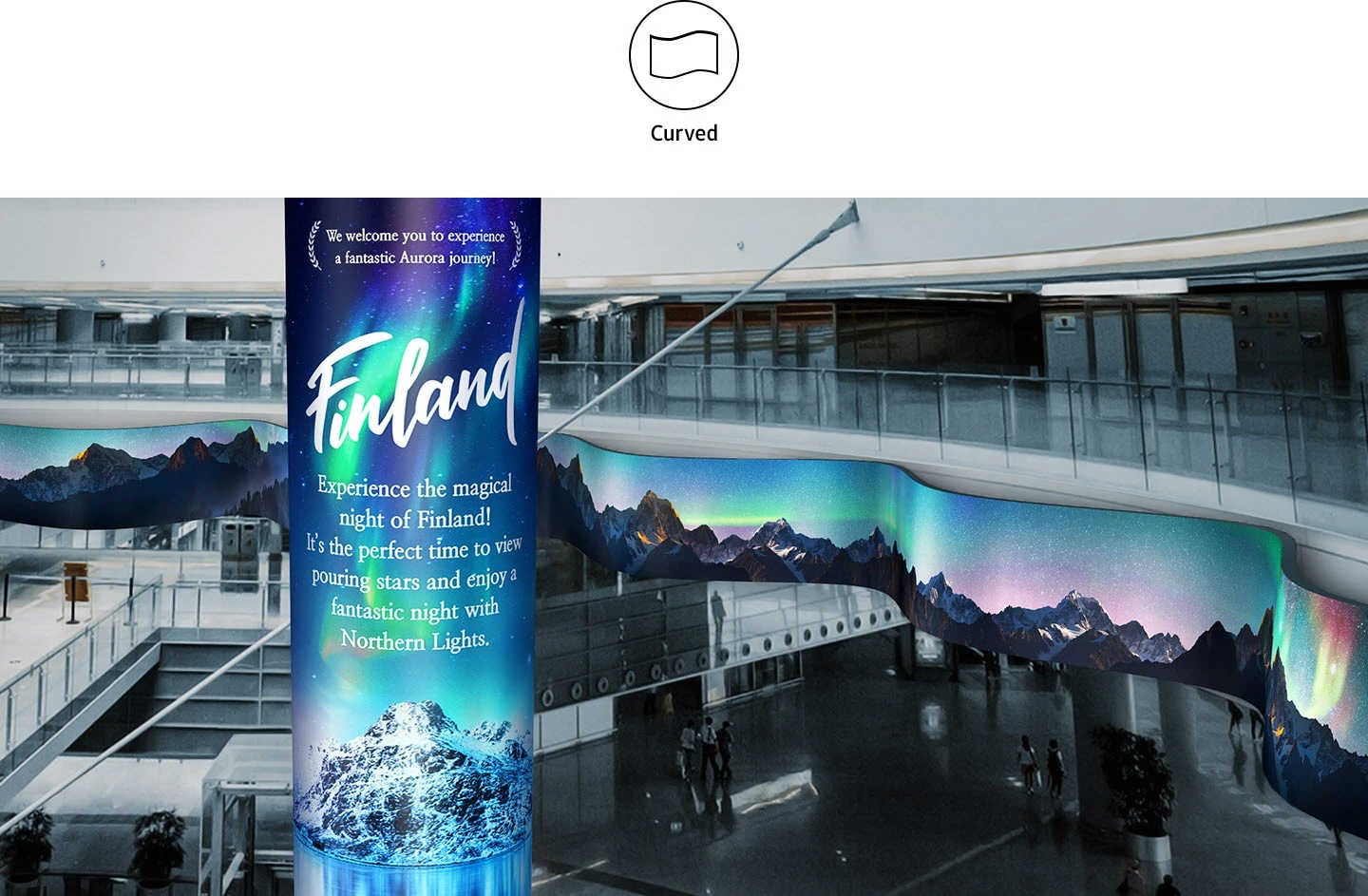

Flexible design
The IEA Series’ advanced design provides flexibility for any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved* and l-shaped installations — content can be displayed to meet the preferred layout for any store location.

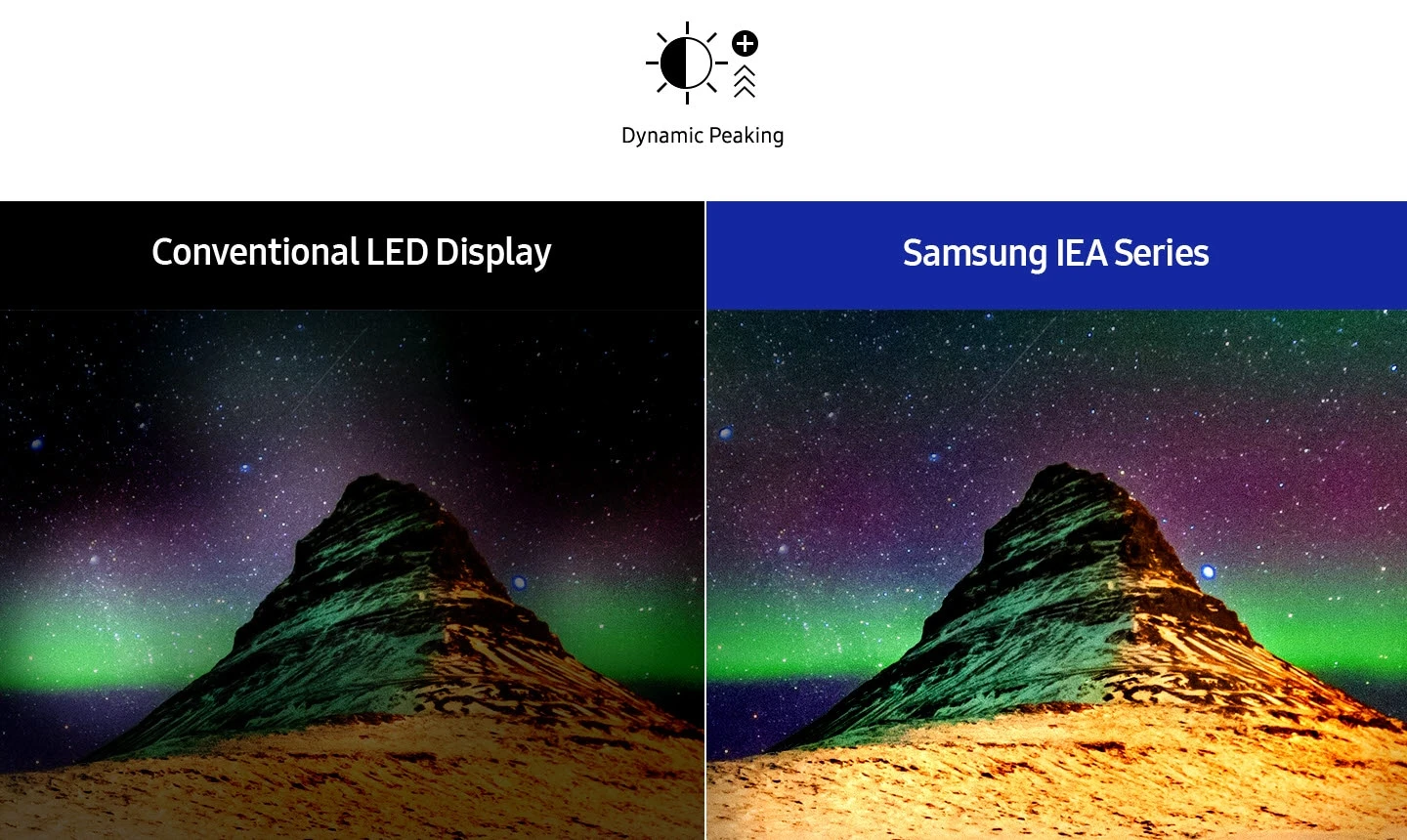

Clearly refined visuals
LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with improved contrast and without shine and in-depth Colour Mapping ensures an accurate expression of colours.

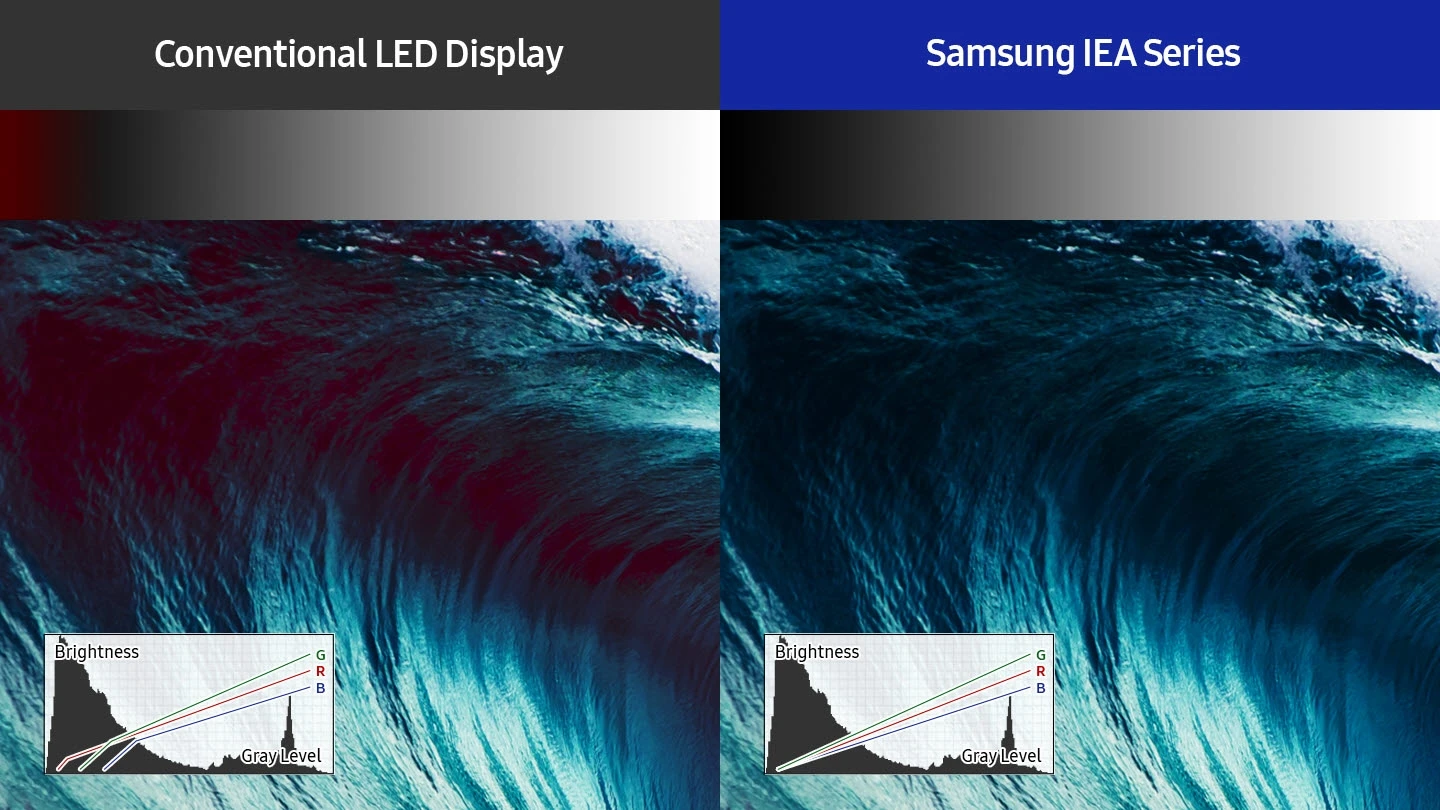

Accurate colour in low brightness arena
Conventional LED displays struggle to present red, green and blue colour hues accurately in low greyscale settings. The IEA series overcomes these challenges through a unique algorithm that maintains R/G/B gradation and delivers precise, detail-rich hues in low-brightness indoor environments.

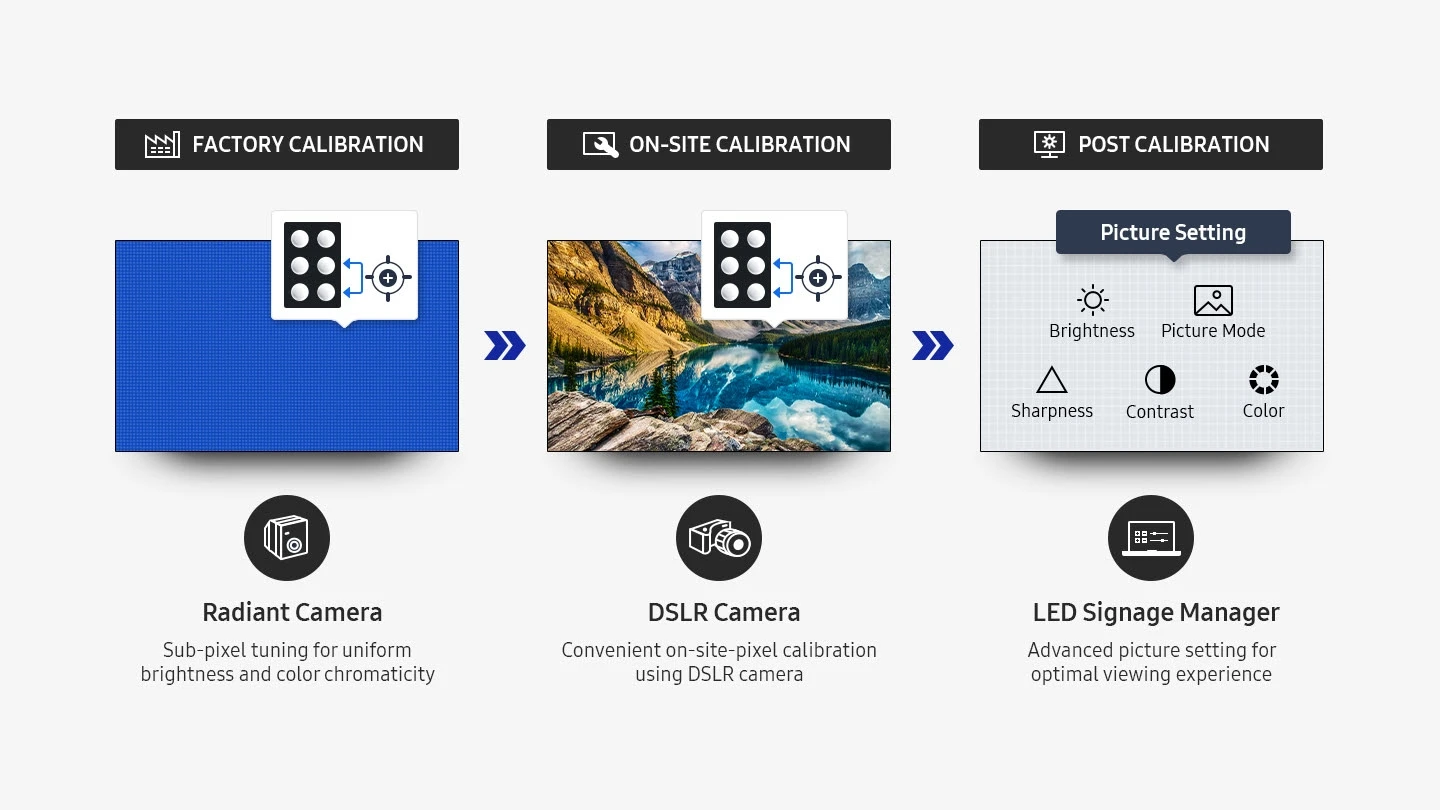

Fine-tuned uniformity
Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all sub-pixels for uniform brightness and colour chromaticity. When coupled with the Samsung LED Signage Manager’s advanced picture settings, this enhanced treatment produces outstanding presentation.

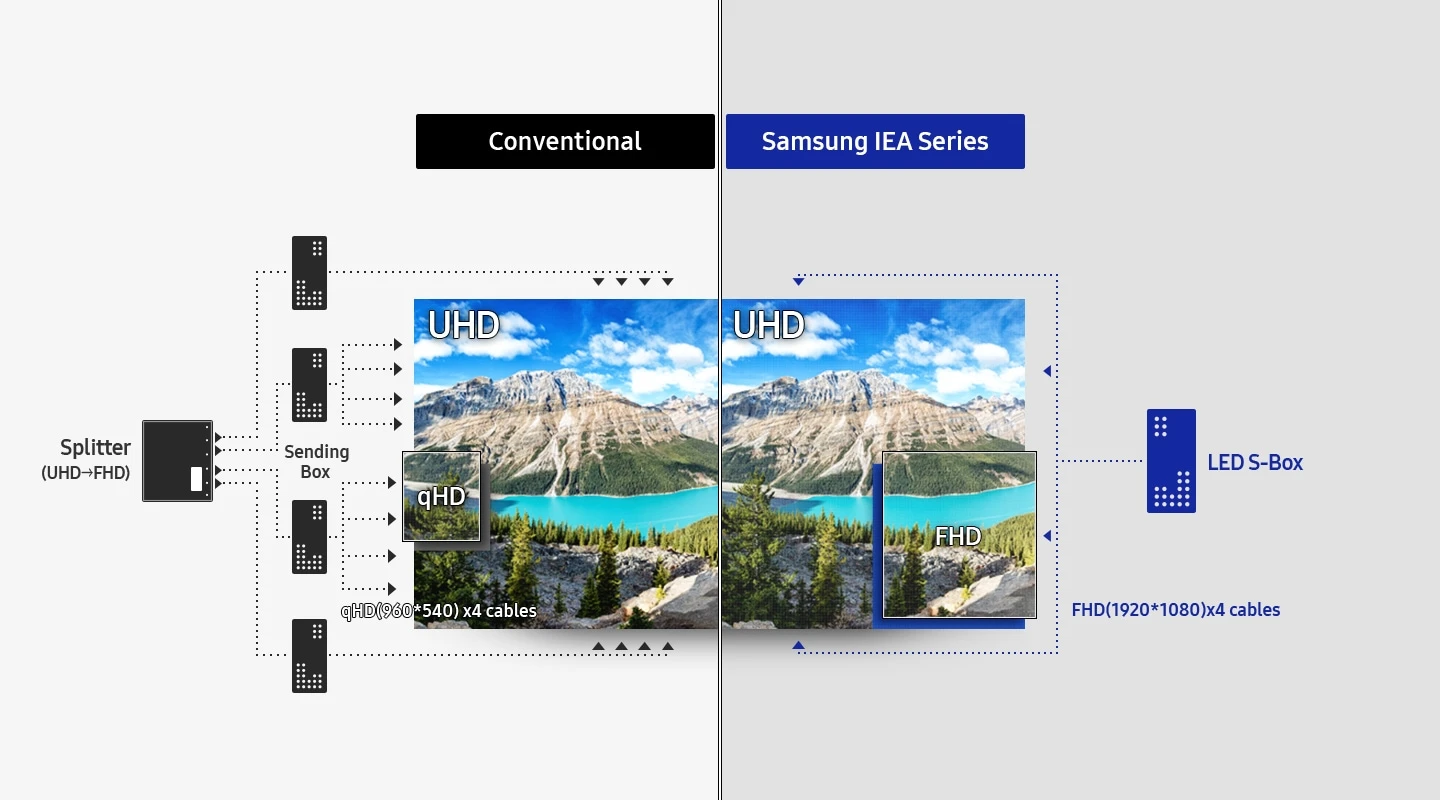

Streamlined UHD content delivery
Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralised device. The S-Box transmits UHD content across multiple IEA series displays without requiring external boxes or splitters, helping businesses enjoy faster and more cost-efficient operations.

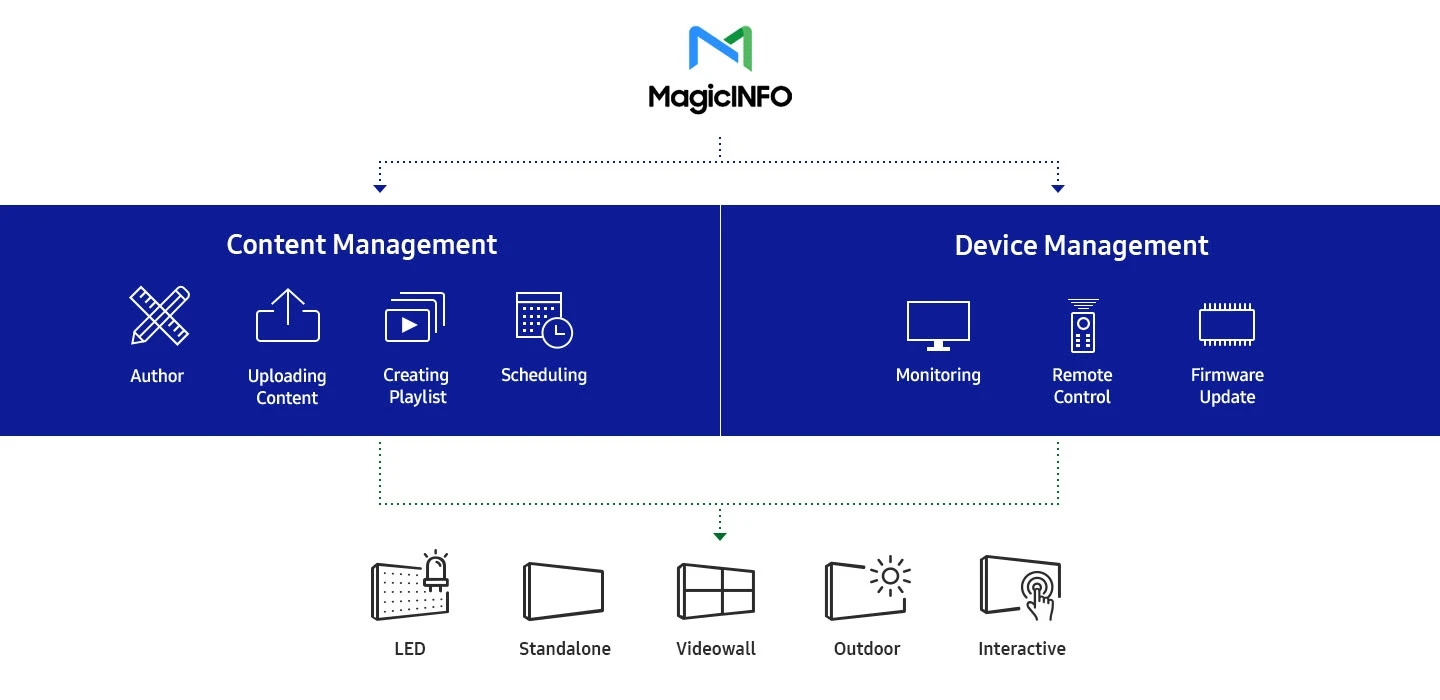

Manage content and devices anywhere
Compatibility with the MagicINFO platform enables IEA Series users to create, schedule and deploy content across an entire signage network. Likewise, users can monitor and adjust display settings and troubleshoot potential performance issues from any location via remote access.
Choose model

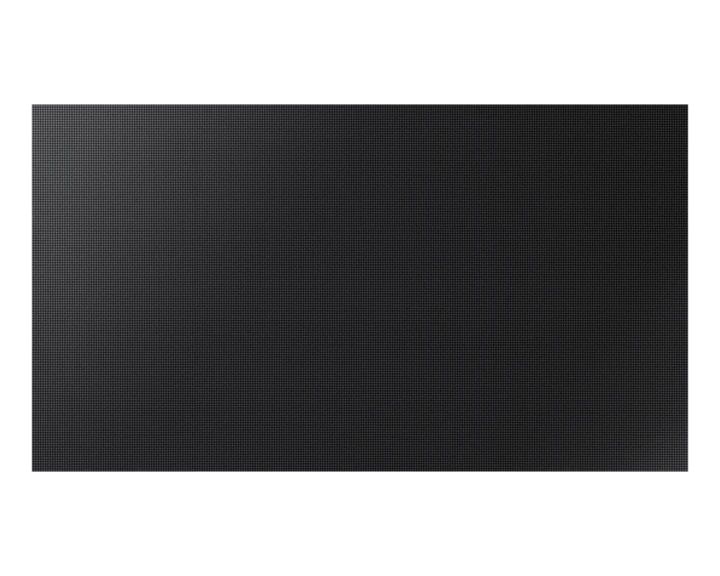

Model code: LH015IEACLS
Technical specifications
- Pixel Pitch 1.5mm
- Pixel Configuration 640 X 360
- Diode Type 3-in-1 1212
- Contrast Ratio 3000:1
- Power Consumption (Max) 367 W/㎡
General product specifications
- Working Temperature 0℃~+40℃/10~80%RH
- IP Rating IP20
- Brightness 500nit
- Viewing Angle (Horizontal/Vertical) 150/150°
- Colour Temperature 6,500K+-500K(floating Bin)
- Video Rate 60 Hz
- Input Voltage (alternating current) 100~240VAC
- Power Frequency 50/60Hz
- Refresh Rate 3840 Hz
- Safety Safety 60950-1
- EMC EMC Class A
