Samsung Spatial Signage SMH (Virtual 3D Display)
85-inch virtual 3D spatial signage: depth effect without glasses, AI Studio, ultra-thin design and 24/7 operation.
Samsung
SMH is an 85-inch spatial signage display that adds depth to visuals with virtual 3D display technology. AI Studio instantly turns existing images into immersive spatial videos.
Its ultra-thin design fits effortlessly into any space. 4K picture quality from the Quantum Processor, an anti-glare surface, Samsung VXT and SmartThings Pro deliver eye-catching content in retail and exhibition spaces.
Featured features
Virtual 3D display
Spatial video creation with AI Studio
UltraThin design
Anti-glare surface
24/7 operation, Tizen 7.0

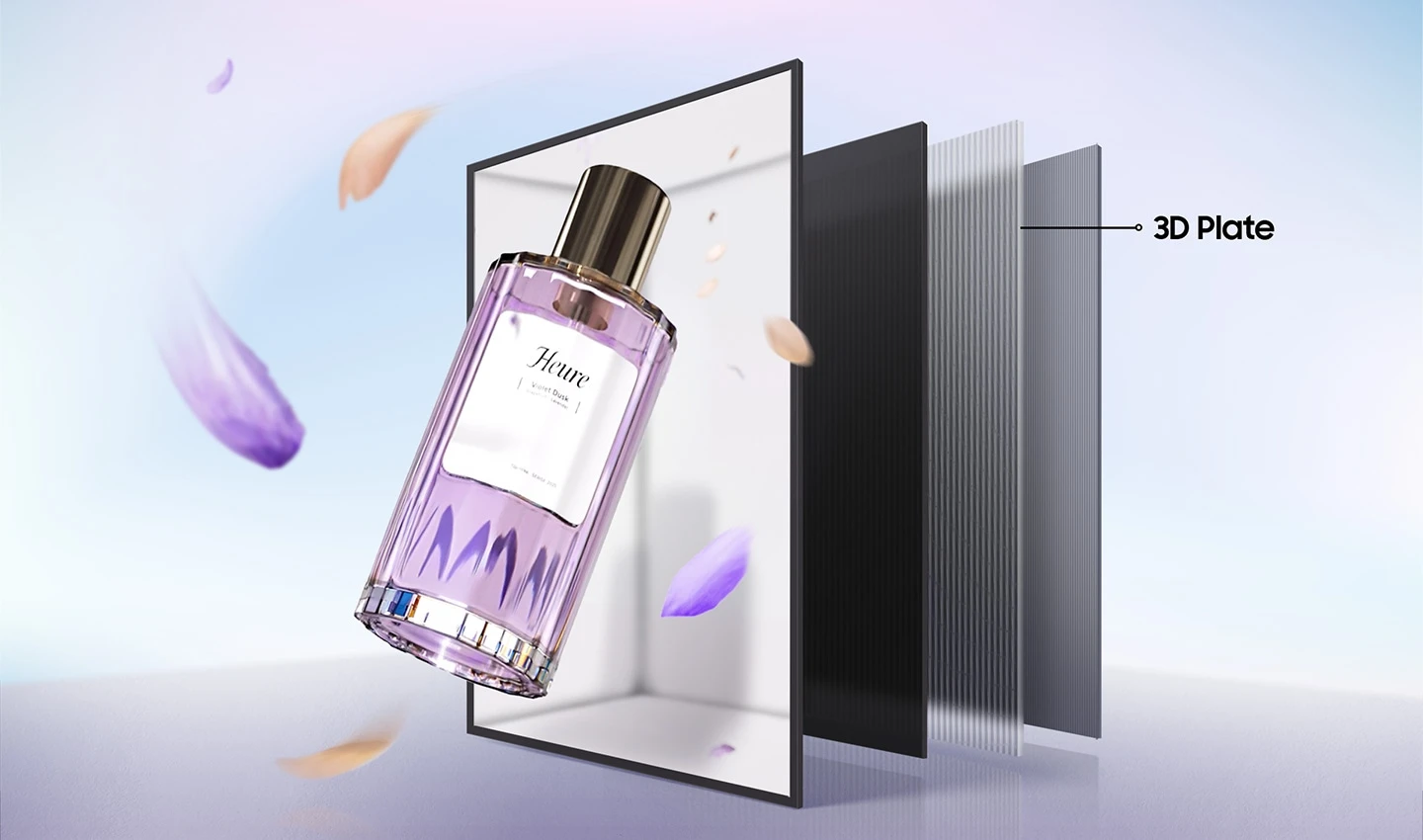

Virtual 3D Display
Powered by Samsung’s patented 3D plate technology, this display goes beyond your 2D content-bringing it to life in 3D, face-to-face with your audience. Vivid details feel almost within reach, making every moment unforgettable.

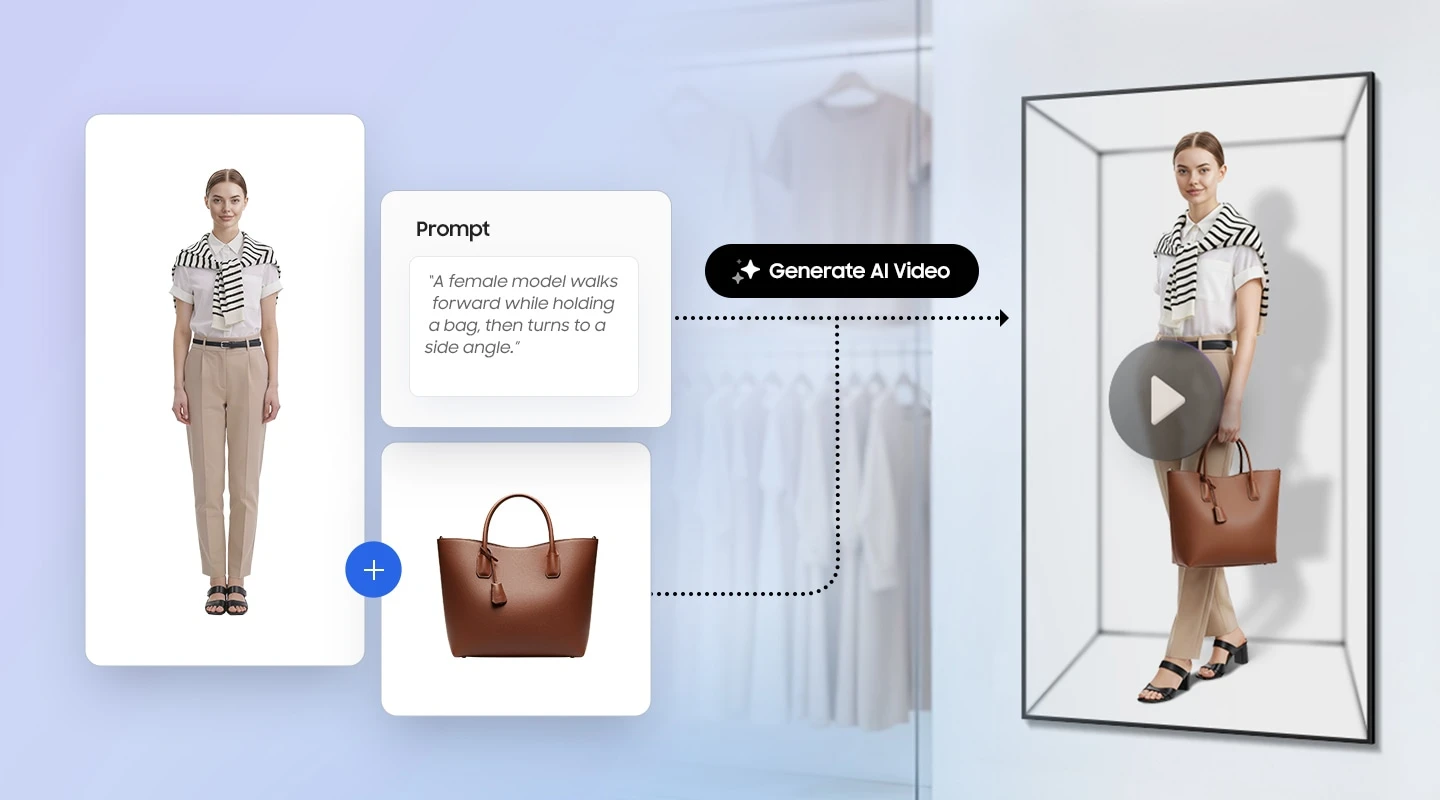

AI Studio
AI Studio simplifies 3D video creation; just upload images and write a prompt to generate video content. Embedded within Samsung VXT, this AI-powered tool converts images into dynamic, 3D style visuals designed for Spatial Signage, helping businesses create engaging content quickly while reducing production complexity.

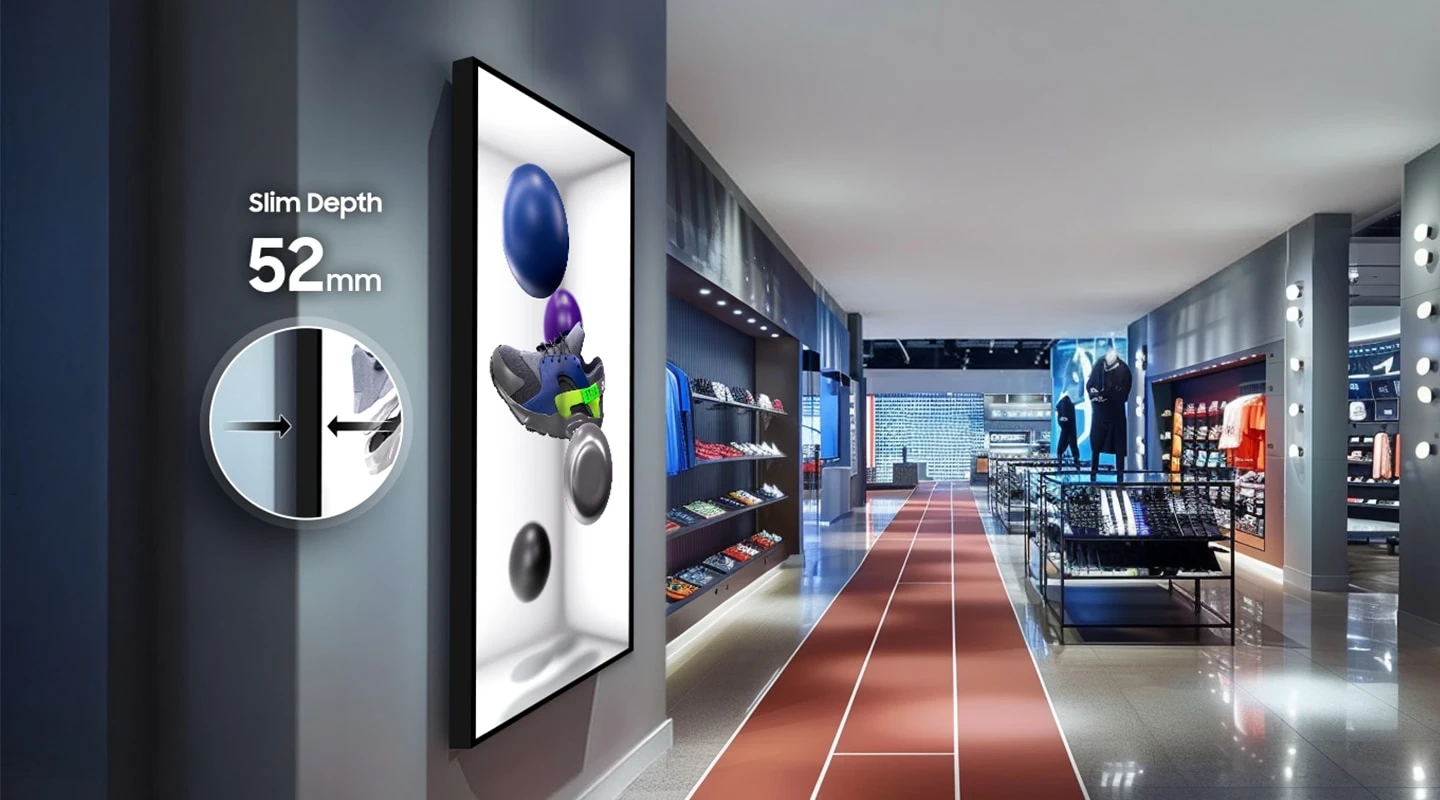

UltraThin Design
Delivering 3D visuals in a 52mm slim profile, this display offers the same installation ease as standard signage—lightweight, space-efficient, and ready for various environment.

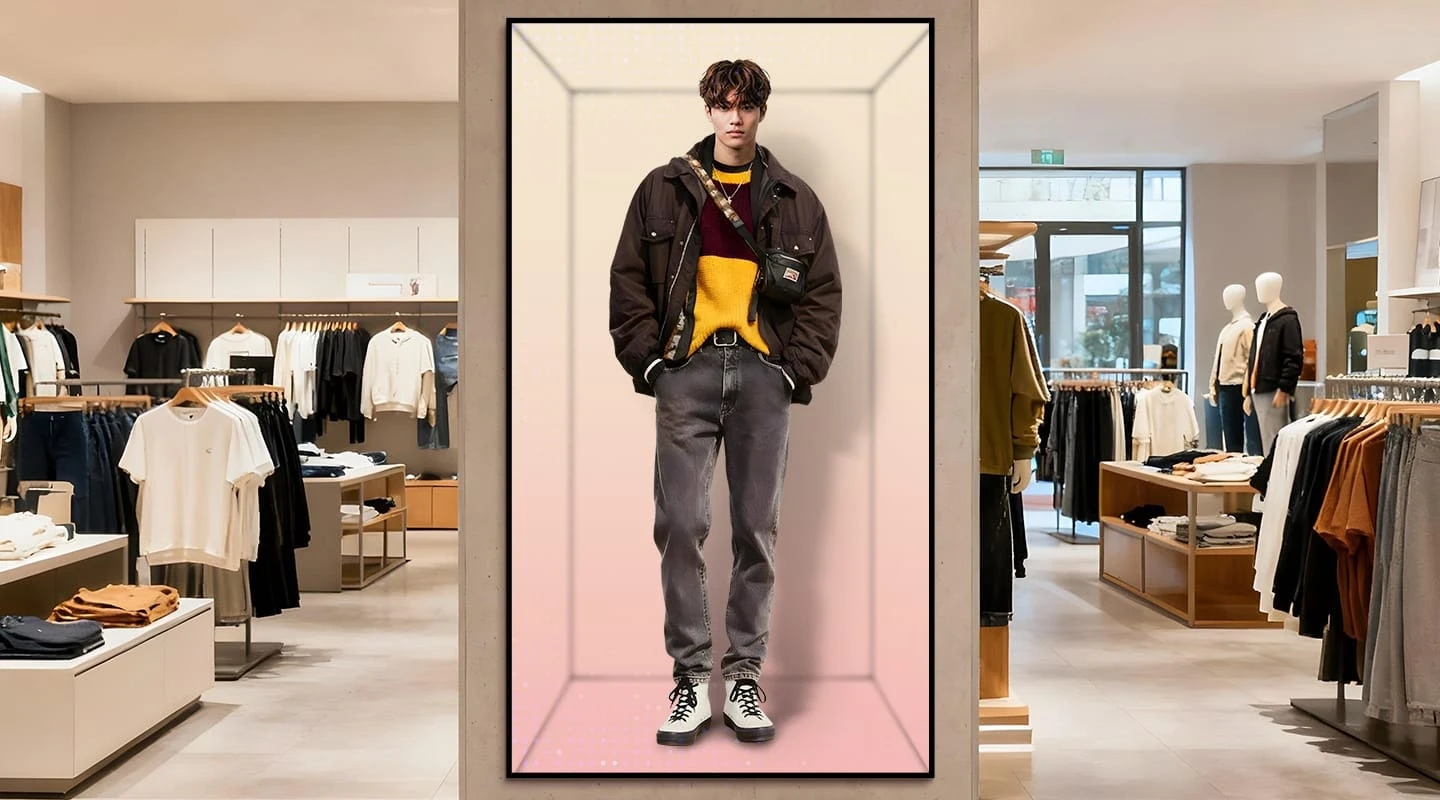

Quantum Processor
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor, elevates lower-resolution video to UHD, providing a professional picture quality.
Anti-glare
Designed with an Anti-glare panel and optimised haze level, the display reduces reflections from indoor lighting and sunlight. In bright retail spaces or open offices, your content stays clear and easy to see.

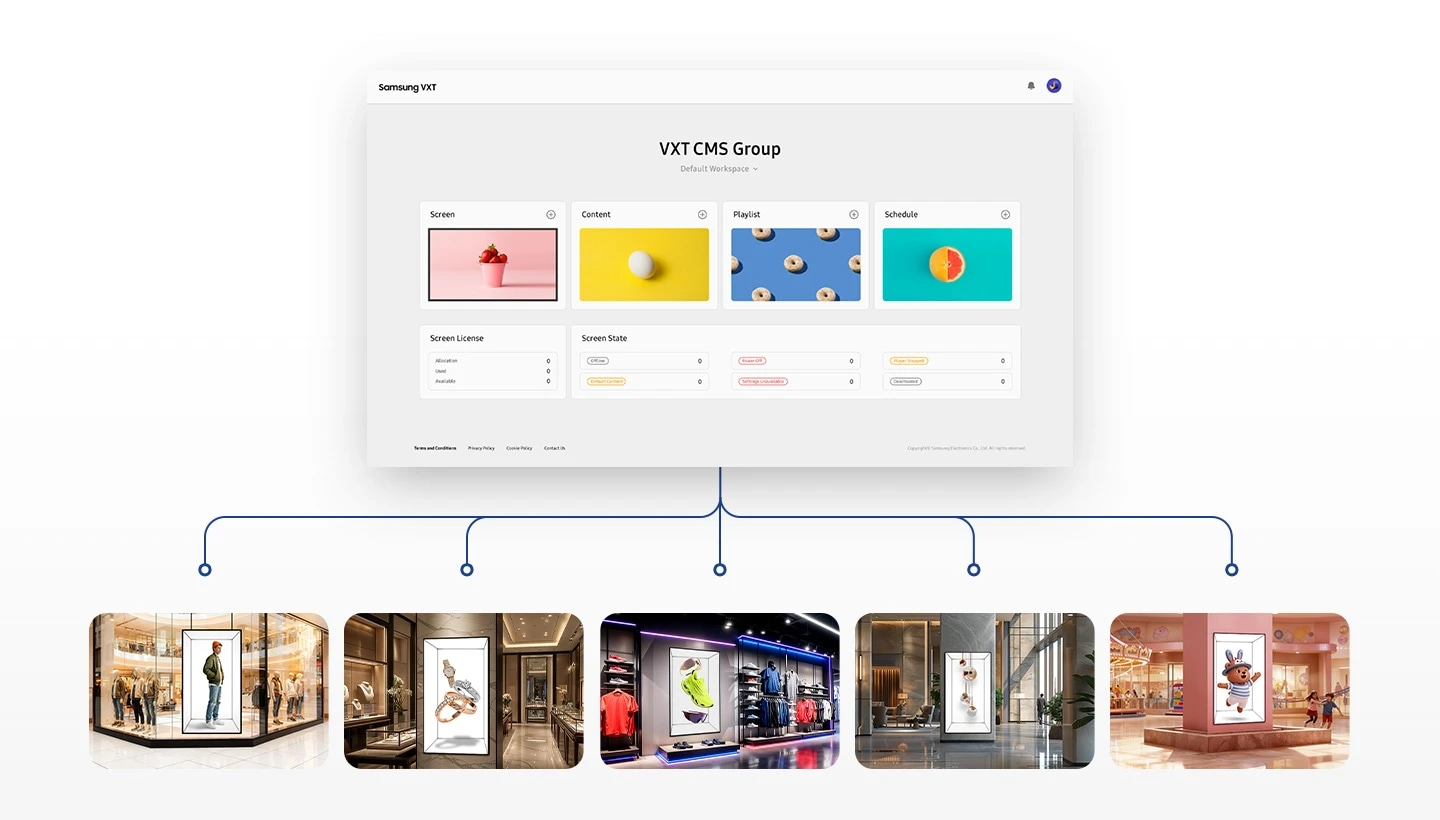

Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.
SmartThings Pro
SmartThings Pro brings IoT connectivity into Samsung's digital signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, the signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.
Technical specifications
- Diagonal Size 85"
- Panel Type VA
- Resolution 4K (3840 x 2160)
- Pixel Pitch (HxV) 0.487 x 0.487 mm
- Brightness (Typ) 500 nit
- Contrast Ratio 4,000:1
- Viewing Angle (Horizontal/Vertical) 178 / 178
- Response Time 10 (GTG)
- Color Gamut (NTSC Coverage) 72 %
- Glass Haze 25%
- H-Scanning Frequency 30 - 81 kHz
- Maximum Pixel Frequency 594 MHz
- V-Scanning Frequency 48 - 75 Hz
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 24/7
- HDMI In 3
- DP In 1
- Version of HDMI 2
- Version of DP 1.2
- Version of HDCP 2.2
- USB 2
- IR In Yes
- Audio In No
- Audio Out Stereo Mini Jack
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- WiFi Yes
- Bluetooth Yes
- Power Supply AC 100 - 240 V (50/60 Hz)
- Power Consumption (On Mode) 440 W
- Power Consumption (Sleep Mode) 0.5 W
- Set Dimension (WxHxD) 1101.2 x 1920.2 x 52.0 mm
- Package Dimension (WxHxD) 2093 x 1234 x 220 mm
- Set Weight 49.0 kg
- Package Weight 61.9 kg
- Temperature 0 ~ 40 ℃
- Humidity 10 ~ 80 (Non-Condensing)
- VESA Mount 400 x 600 mm
- Bezel Width 21.0
- Bezel Color BLACK
- Frame Material Non-Glossy
- Mount WMN-B85SH
- OS Version Tizen 7.0
- Flash Memory Size 16GB
- EMC A Sınıfı
- Güvenlik 60950-1, 62368-1
- Energy Efficiency Class G
- EMC Class A
- Safety 62368-1, 60950-1
