QBC

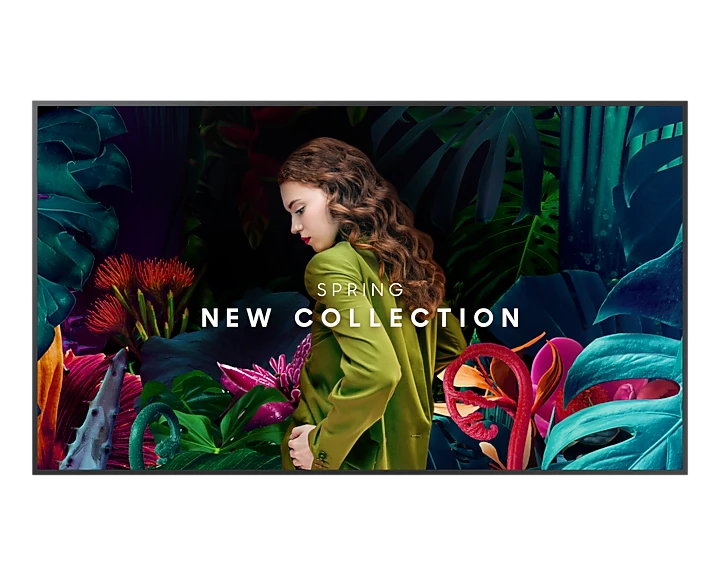

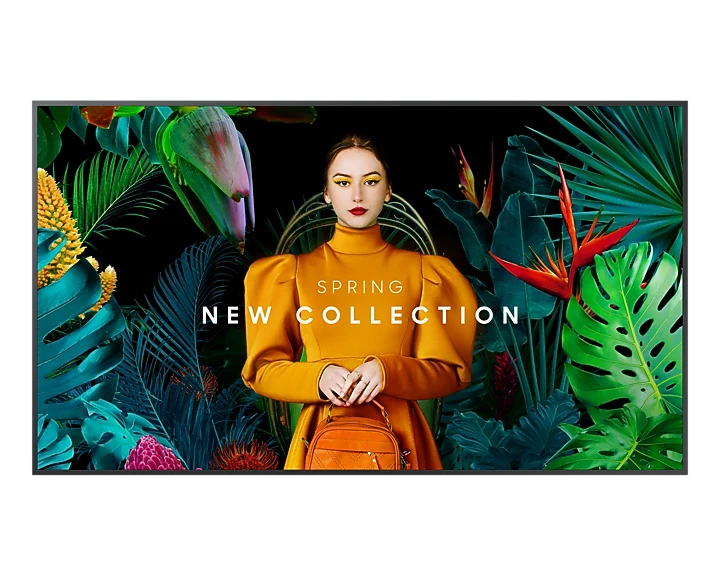

Samsung Crystal UHD Signage QBC
Slim professional signage, 28.5 mm deep: 4K resolution, 16/7 operation and Tizen 7.0.
Samsung
QBC is a slim 4K display delivering maximum impact in minimum space. With its 28.5 mm depth, even bezel on all four sides and centred VESA holes, it looks clean in both landscape and portrait installations.
Dynamic Crystal Color and Crystal Processor 4K present content vividly in 4K UHD (3,840 x 2,160). The upgraded Home UI, Smart Calibration, Professional Modes and cloud-based Samsung VXT simplify setup and management.
Featured features
28.5 mm ultra-slim depth
Even bezel on four sides, centred VESA holes
350 nit brightness, 4,000:1 contrast
16/7 operation support
178° viewing angle, Tizen 7.0
Wi-Fi and Bluetooth
Remote management with Samsung VXT

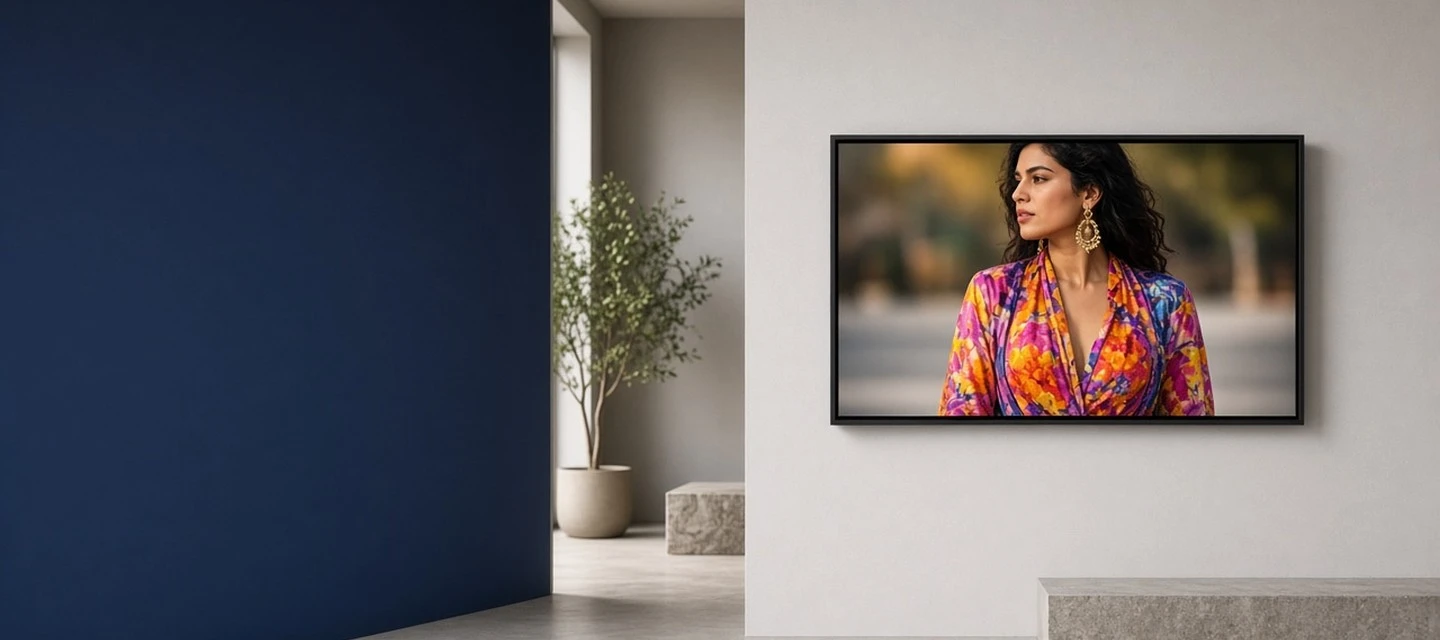

Slim design. Stunning performance.
Introducing QBC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QBC’s efficiency and design innovation.

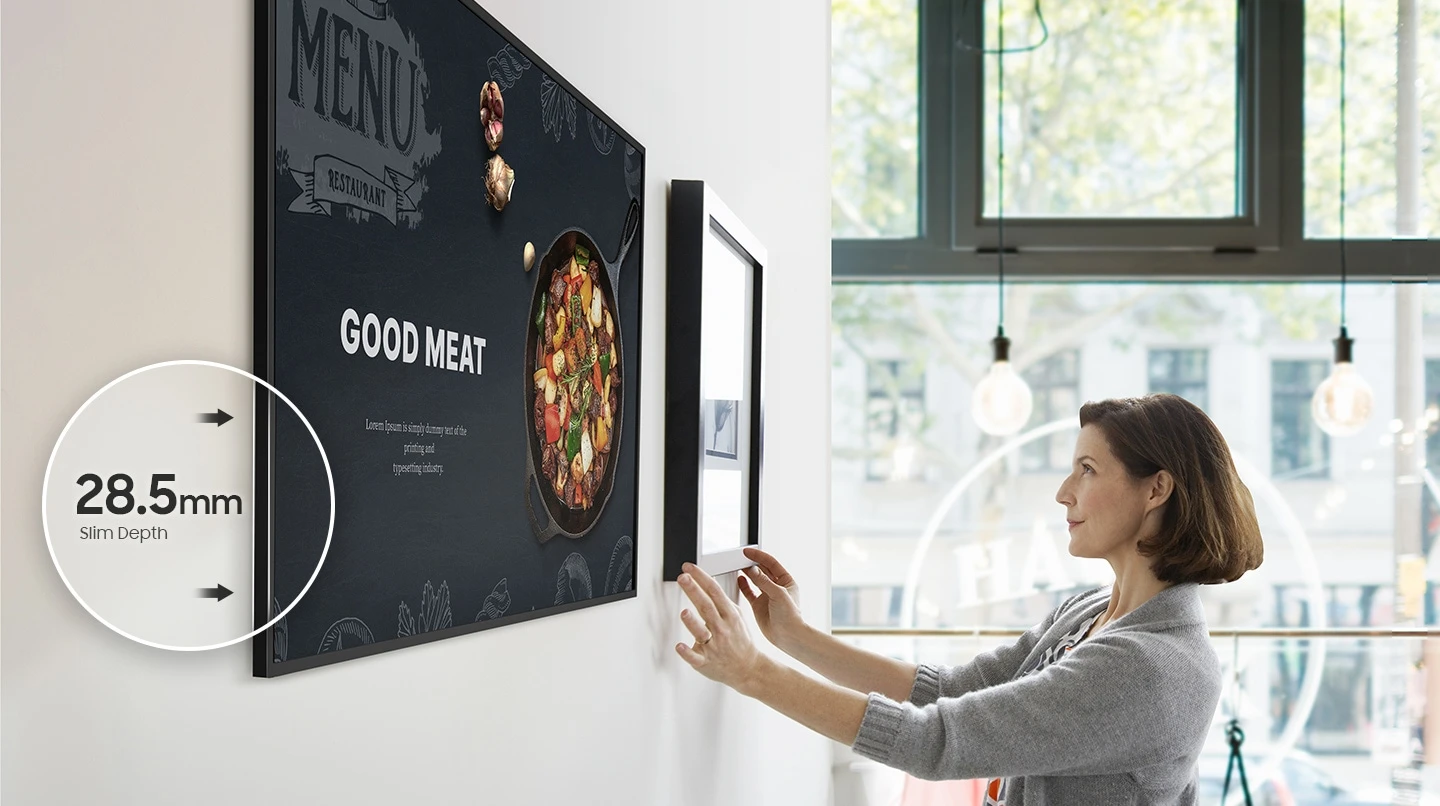

Maximum impact in minimum space
The QBC's unparalleled ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series. It is compatible with a Slim Fit Wall Mount*, which allows you to install it neatly and easily in any location. QBC optimizes space with its sleek design that blends seamlessly into your business environment.

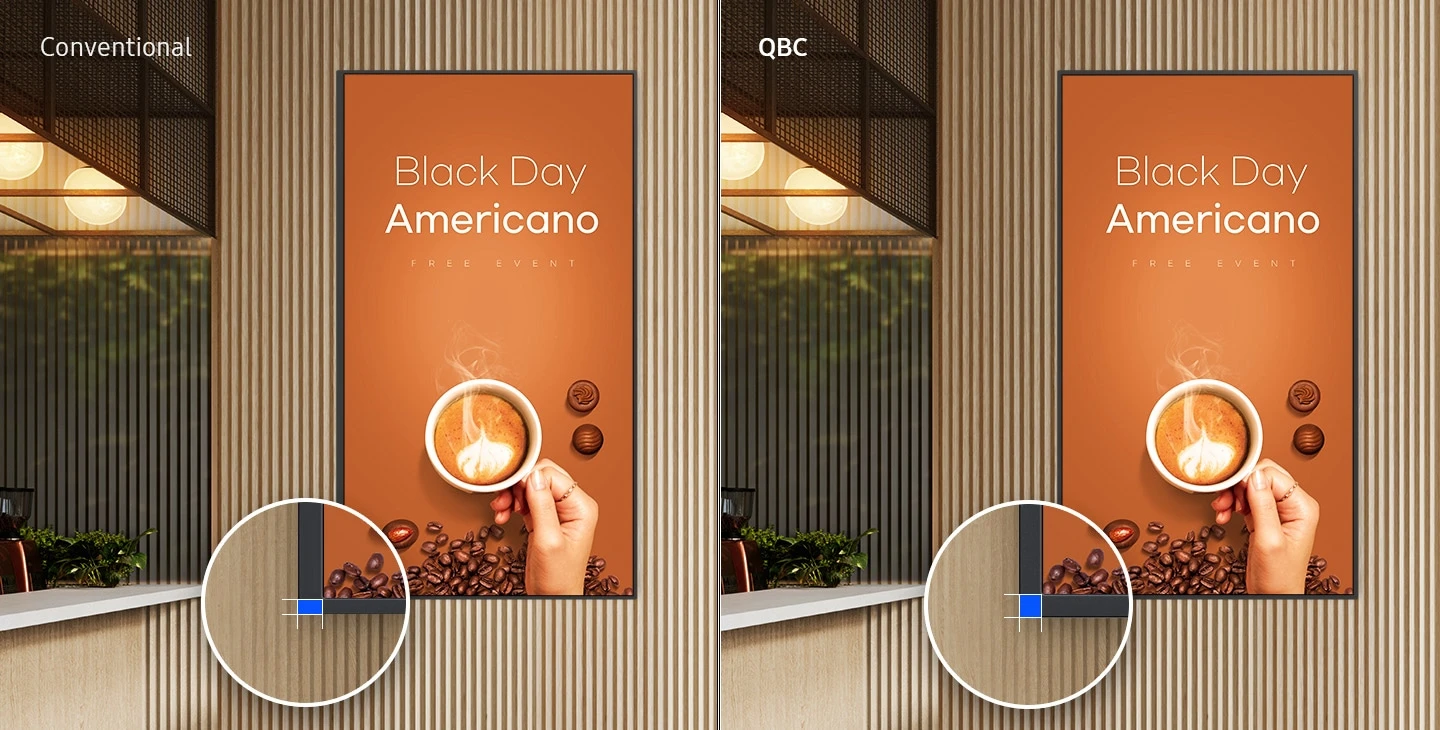

Even bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

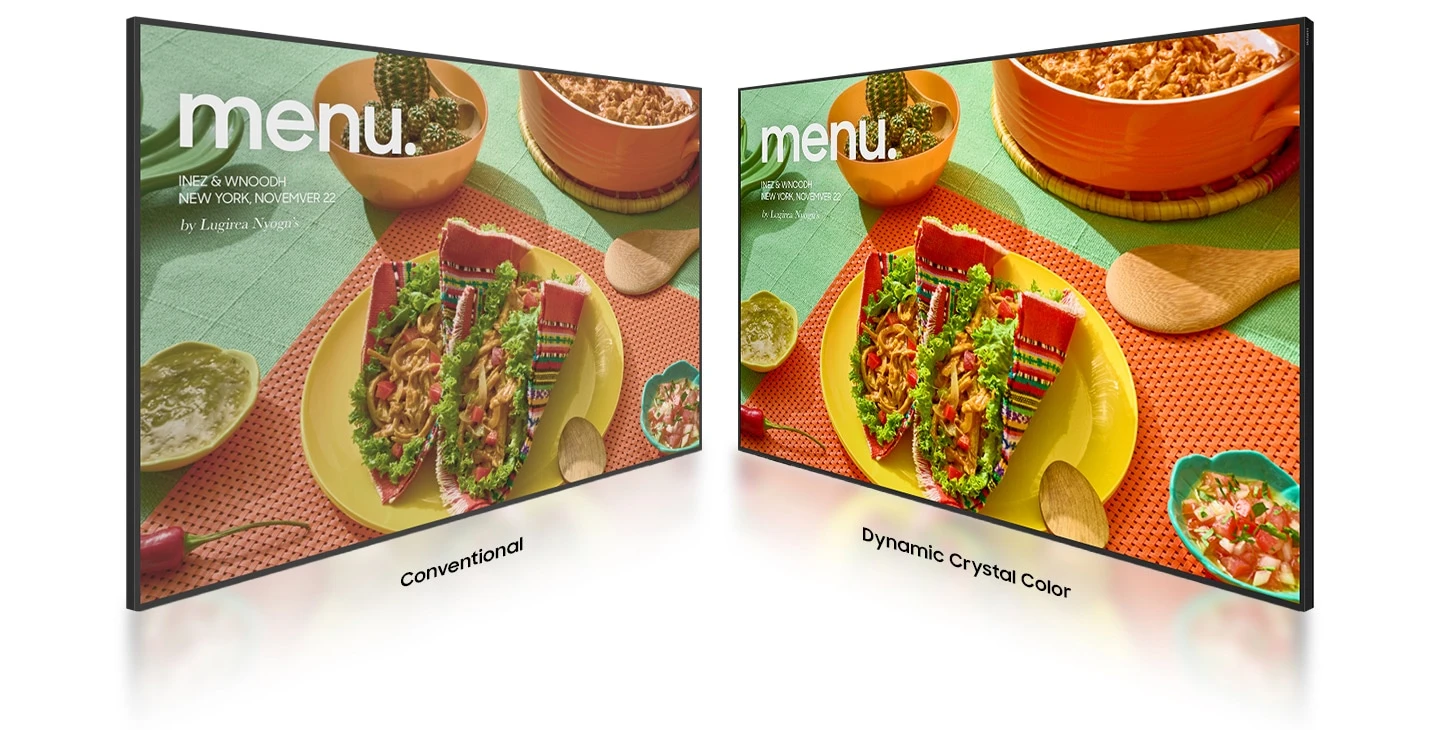

Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
Crystal Processor 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

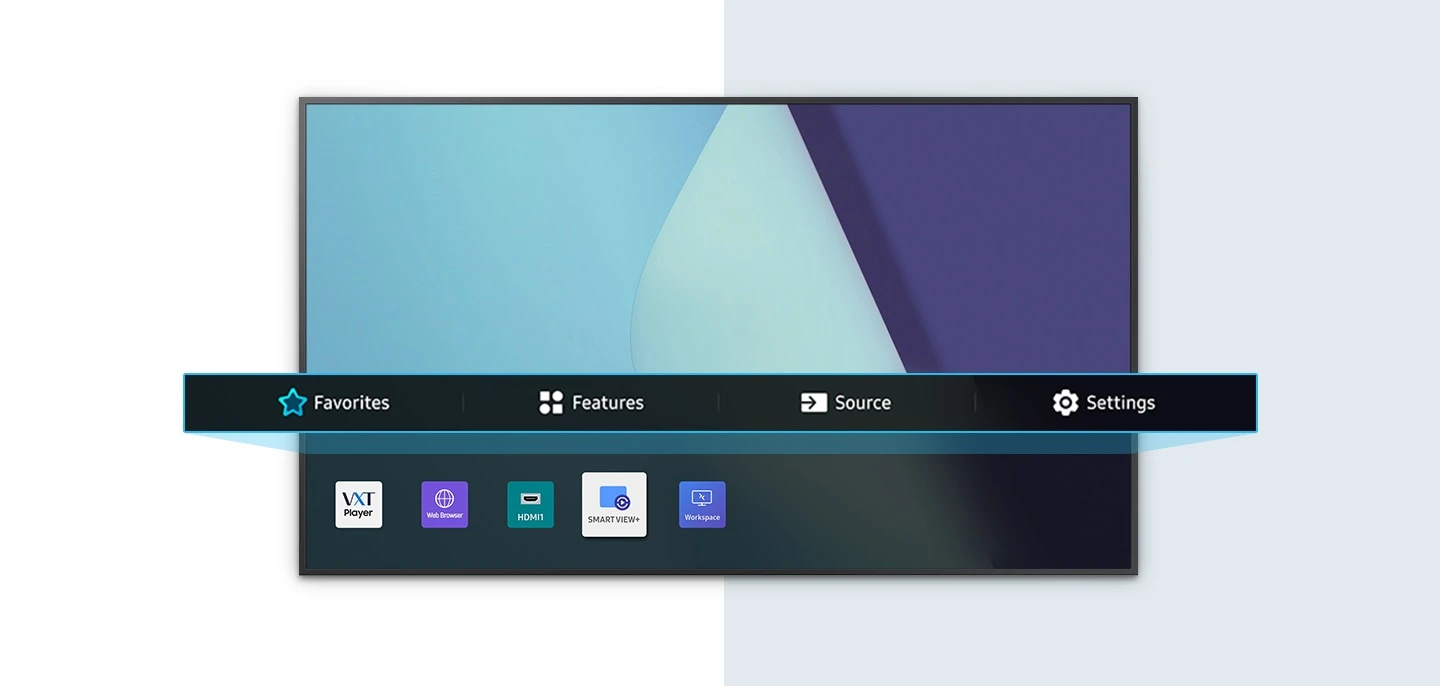

Home UI
QBC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

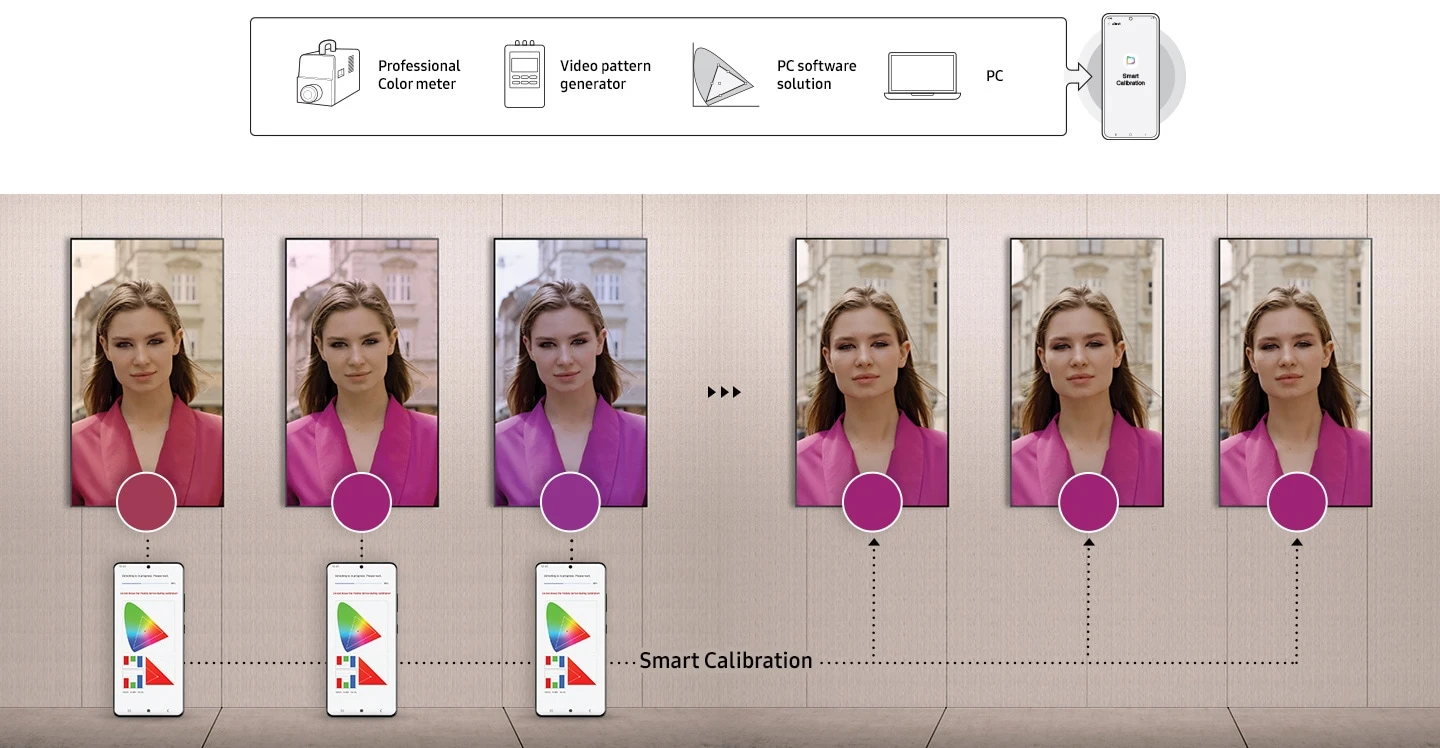

Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.

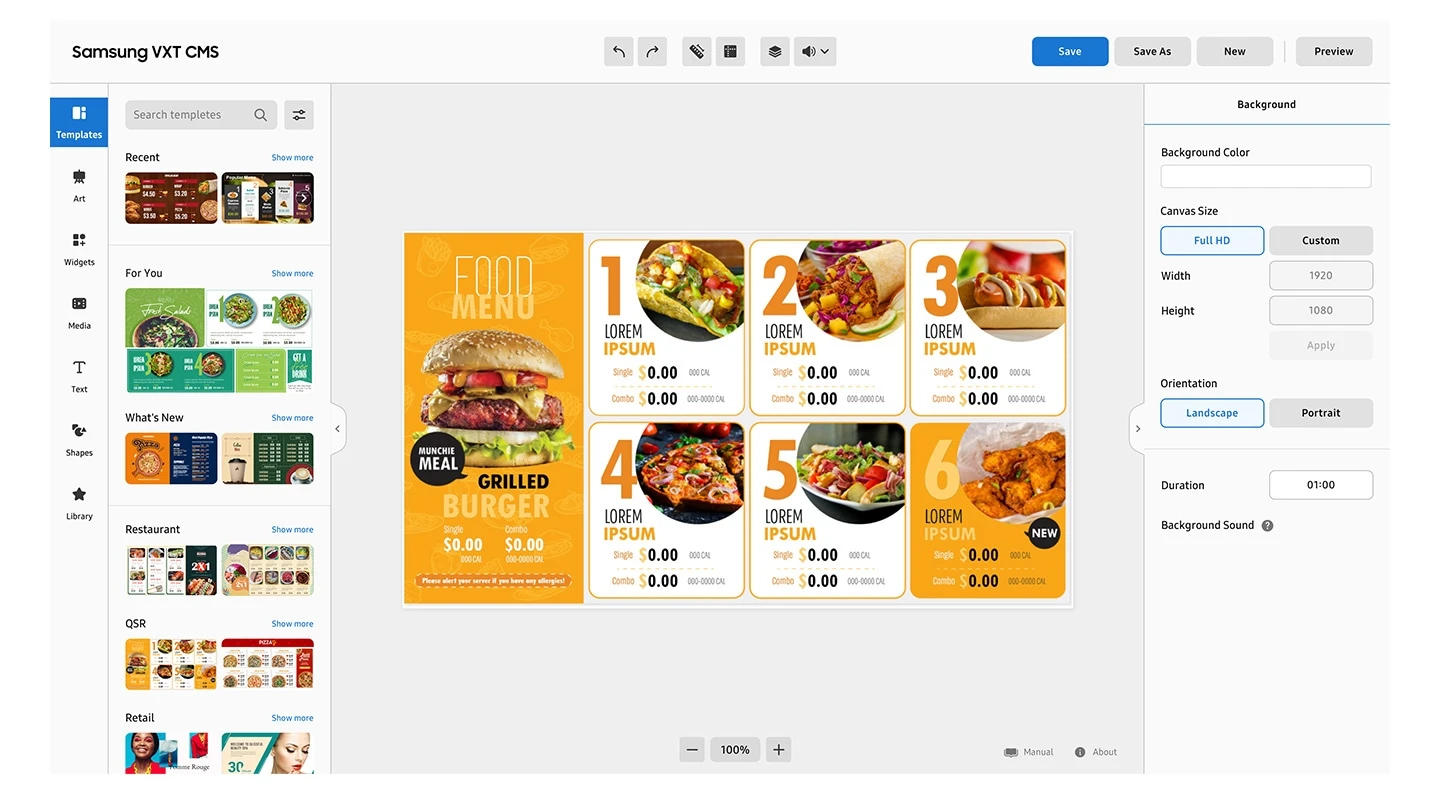

Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Choose size / model
Model code: LH43QBCEBGCXTK
Technical specifications
- Diagonal Size 43"
- Pixel Pitch (HxV) 0.245x0.245mm
- Response Time 8 (GTG)
- Power Consumption (On Mode) 121 W
- Set Dimension (WxHxD) 969.5 x 557.8 x 28.5 mm
- Package Dimension (WxHxD) 1093 x 667 x 126 mm
- Set Weight 8.8 kg
- Package Weight 11.3 kg
- VESA Mount 200 x 200 mm
- Bezel Width 11.5mm (even)
- Bezel Color Charcoal Black
- Stand STN-L4355C
- Energy Efficiency Class G
- EMC Class B
General product specifications
- Panel Type VA
- Resolution 4K (3840 x 2160)
- Brightness (Typ) 350 nit
- Contrast Ratio 4,000:1
- Viewing Angle (Horizontal/Vertical) 178 / 178
- Glass Haze 2%
- H-Scanning Frequency 30~81kHz
- Maximum Pixel Frequency 594MHz
- V-Scanning Frequency 48~75Hz
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 16/7
- Color Gamut 72% (NTSC)
- HDMI In 3
- DP In No
- Version of HDMI 2
- Version of DP No
- Version of HDCP 2.2
- USB 2
- IR In Yes
- Audio In No
- Audio Out Stereo Mini Jack
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- WiFi Yes
- Bluetooth Yes
- Power Supply AC 100 - 240 V (50/60 Hz)
- Power Consumption (Sleep Mode) 0.5 W
- Temperature 0 ~ 40 ℃
- Humidity 10 ~ 80 (Non-Condensing)
- Frame Material Non-Glossy
- Mount WMN-B50SC
- OS Version Tizen 7.0
- Flash Memory Size 8GB
- Safety 62368-1, 60950-1
