VHC
Samsung Video Wall VHC
55-inch FHD video wall display with 0.44 mm bezels, 700 nit brightness and 24/7 operation.
Samsung

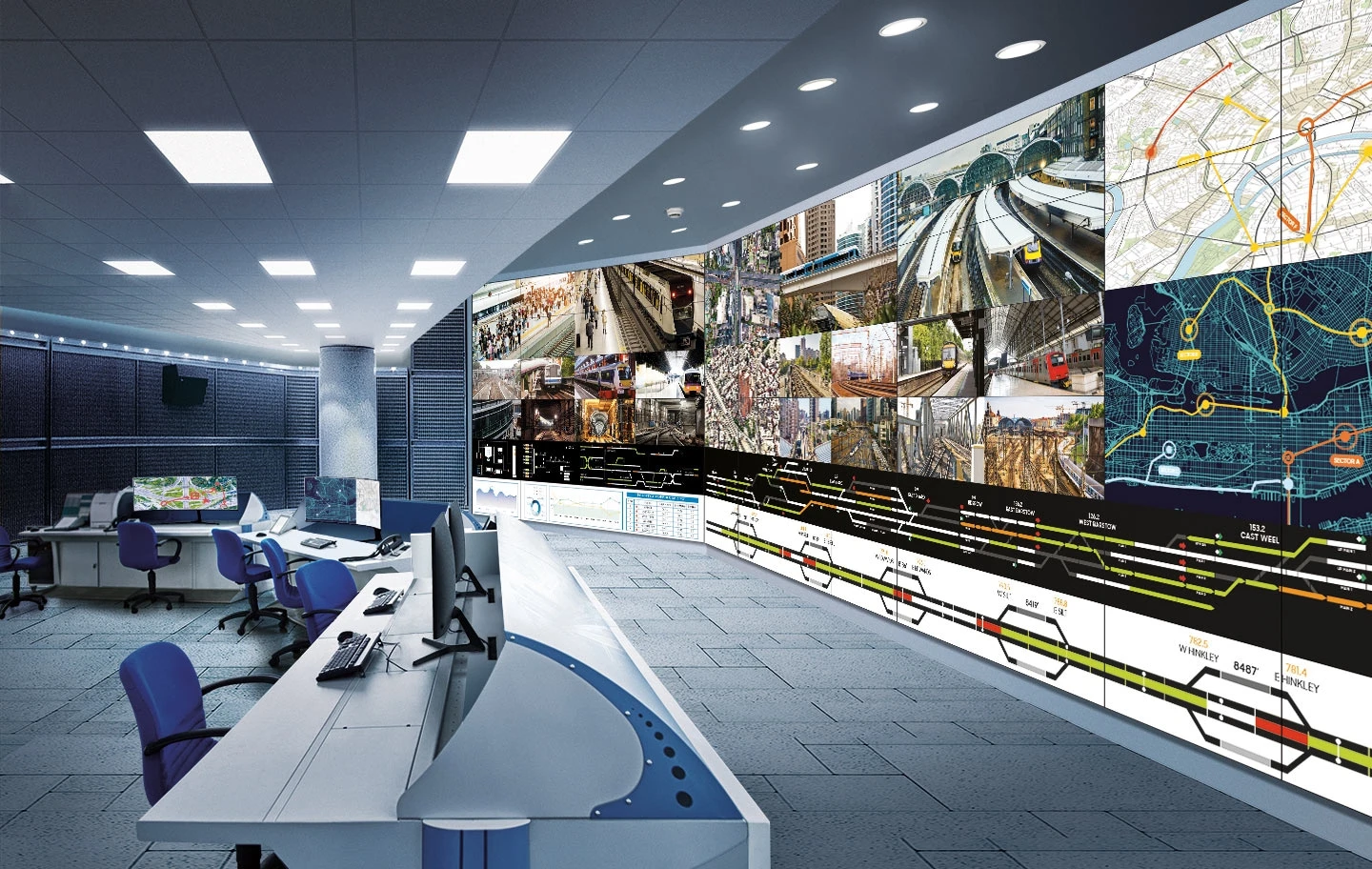

VHC is a 55-inch video wall display designed to combine multiple screens into one seamless image with almost invisible bezels. With 700 nit brightness and 24/7 operation support, it suits continuous use in stores, control rooms and lobbies.
Image enhancement technology and comprehensive calibration options deliver consistent colour and brightness across the whole wall. Wide viewing angles, a modern slim design and industry-standard certifications complete an intuitive all-in-one operation.
Featured features
0.44 mm bezel
700 nit brightness
24/7 operation support
Comprehensive colour and brightness calibration
178° wide viewing angle
Seamless video walls with razor-thin bezels
With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.

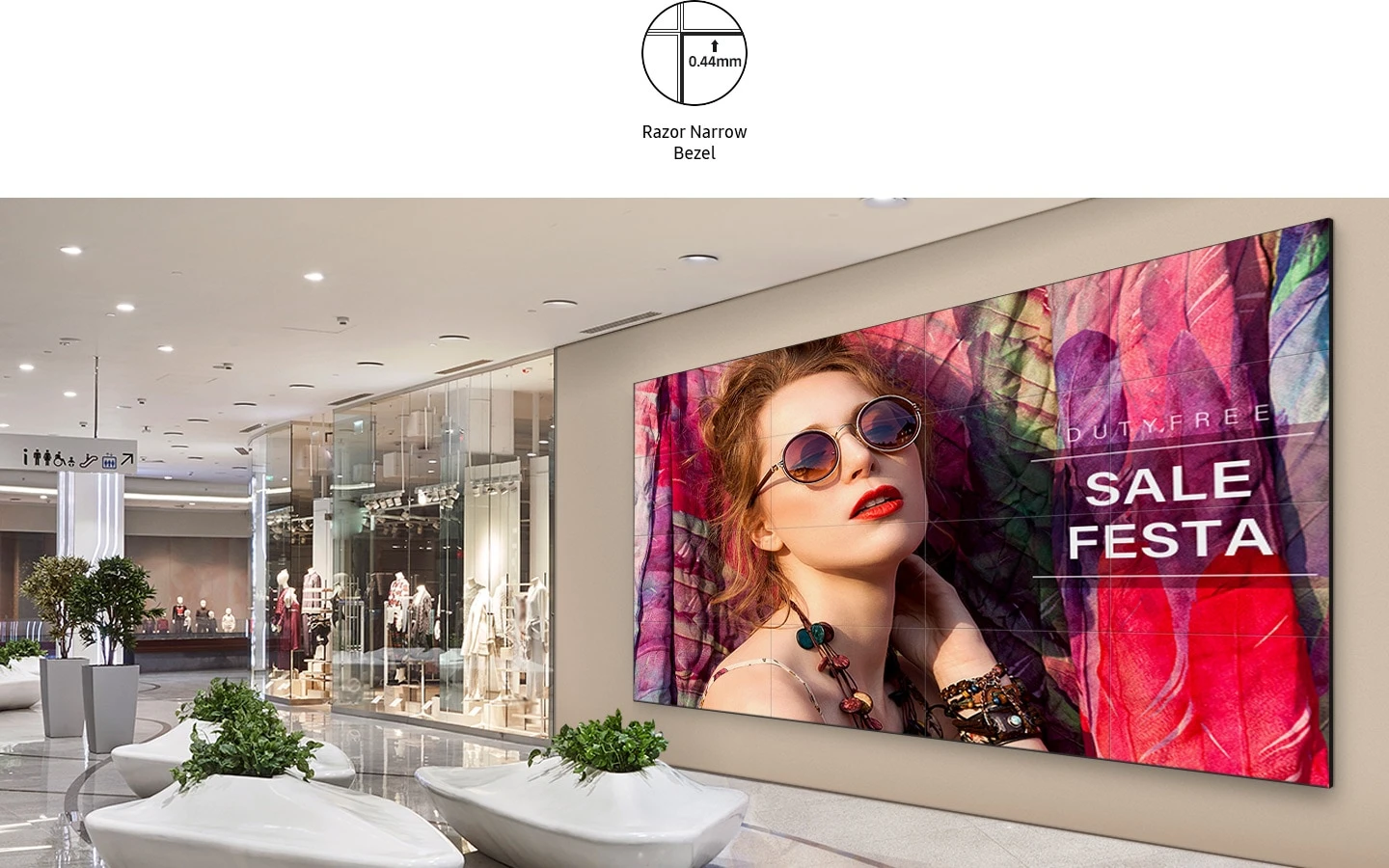

Nearly invisible 0.44 mm bezel
An Exceptionally thin 0.44mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.

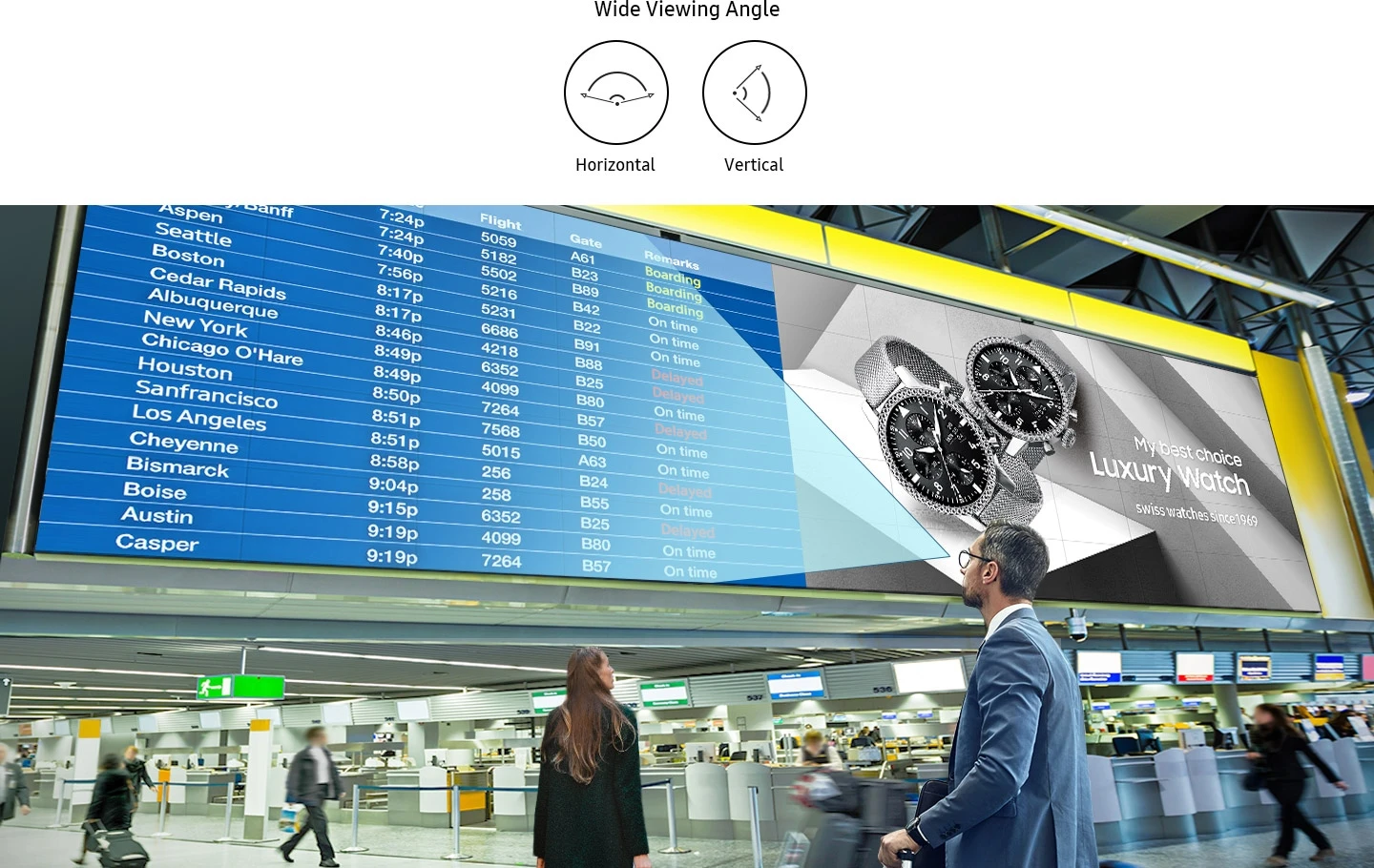

View content from any angle
The display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.

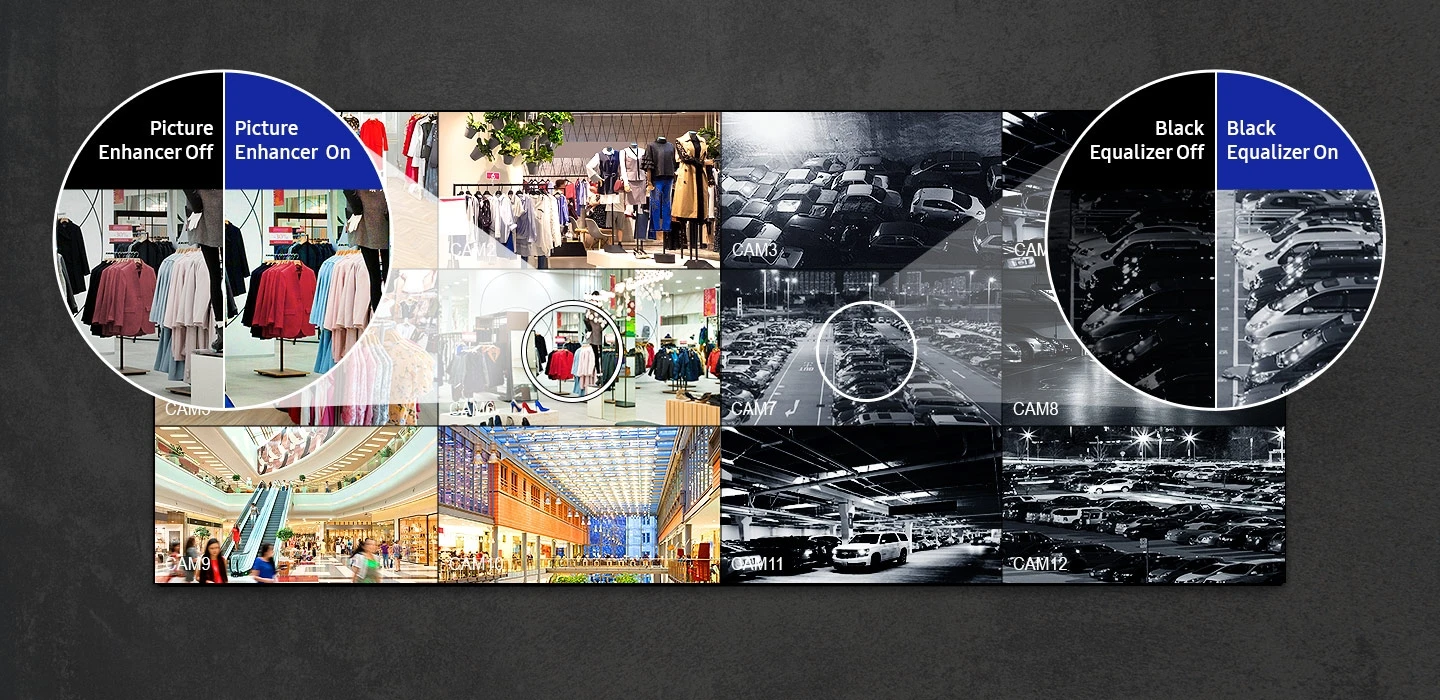

Image enhancement technology
Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

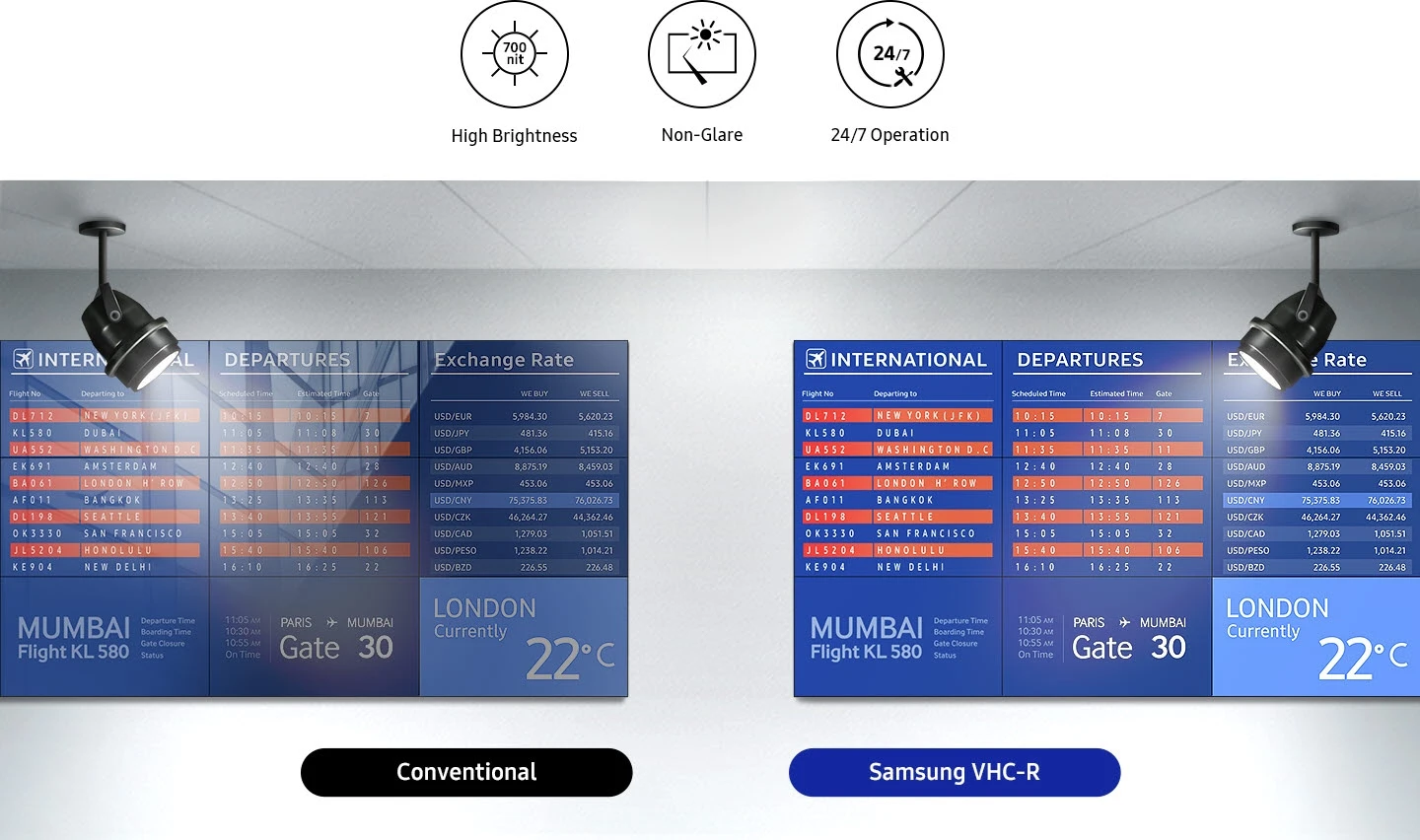

Vibrant images 24/7
Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.

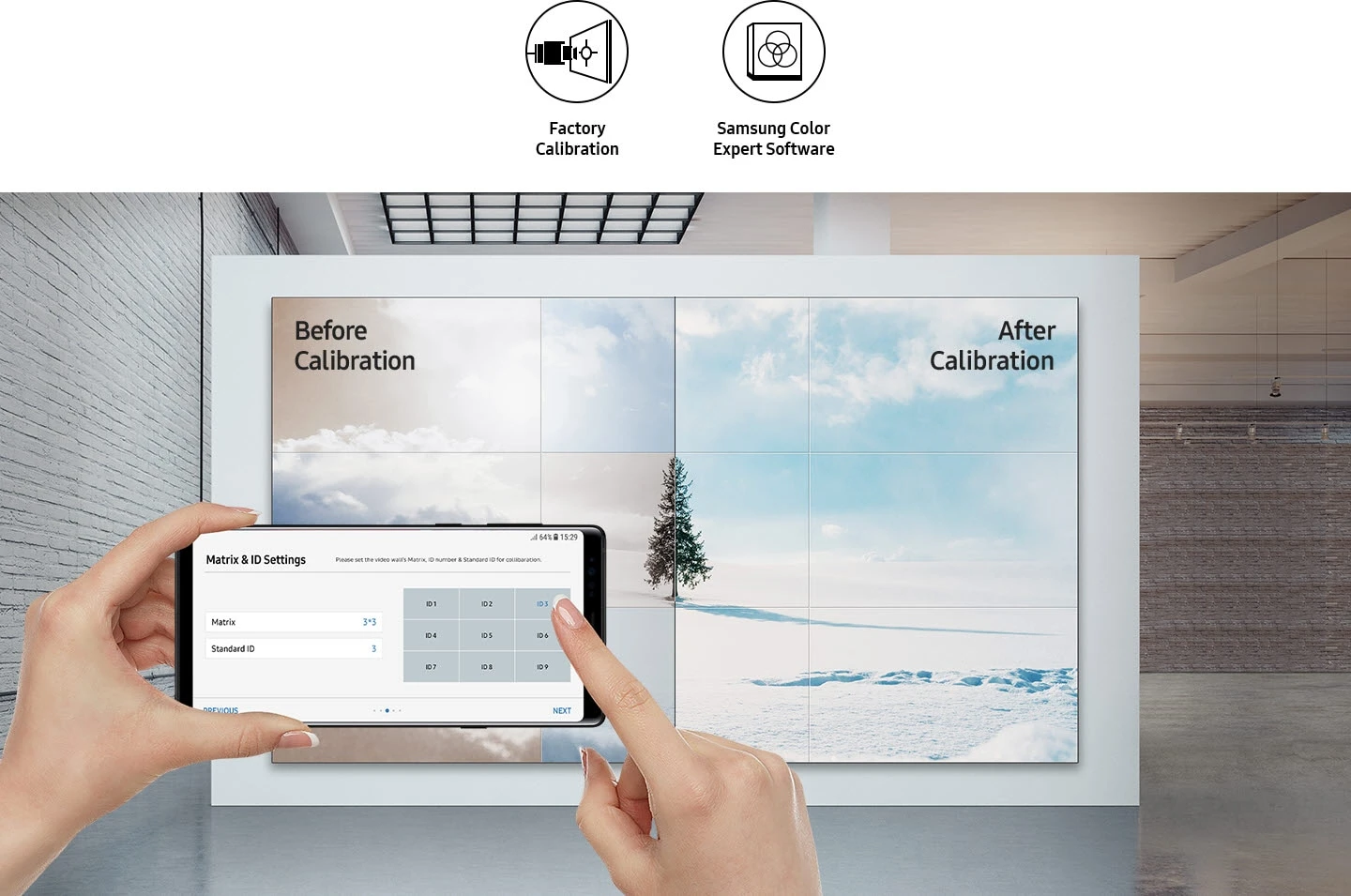

Comprehensive calibration to fit your needs
Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.

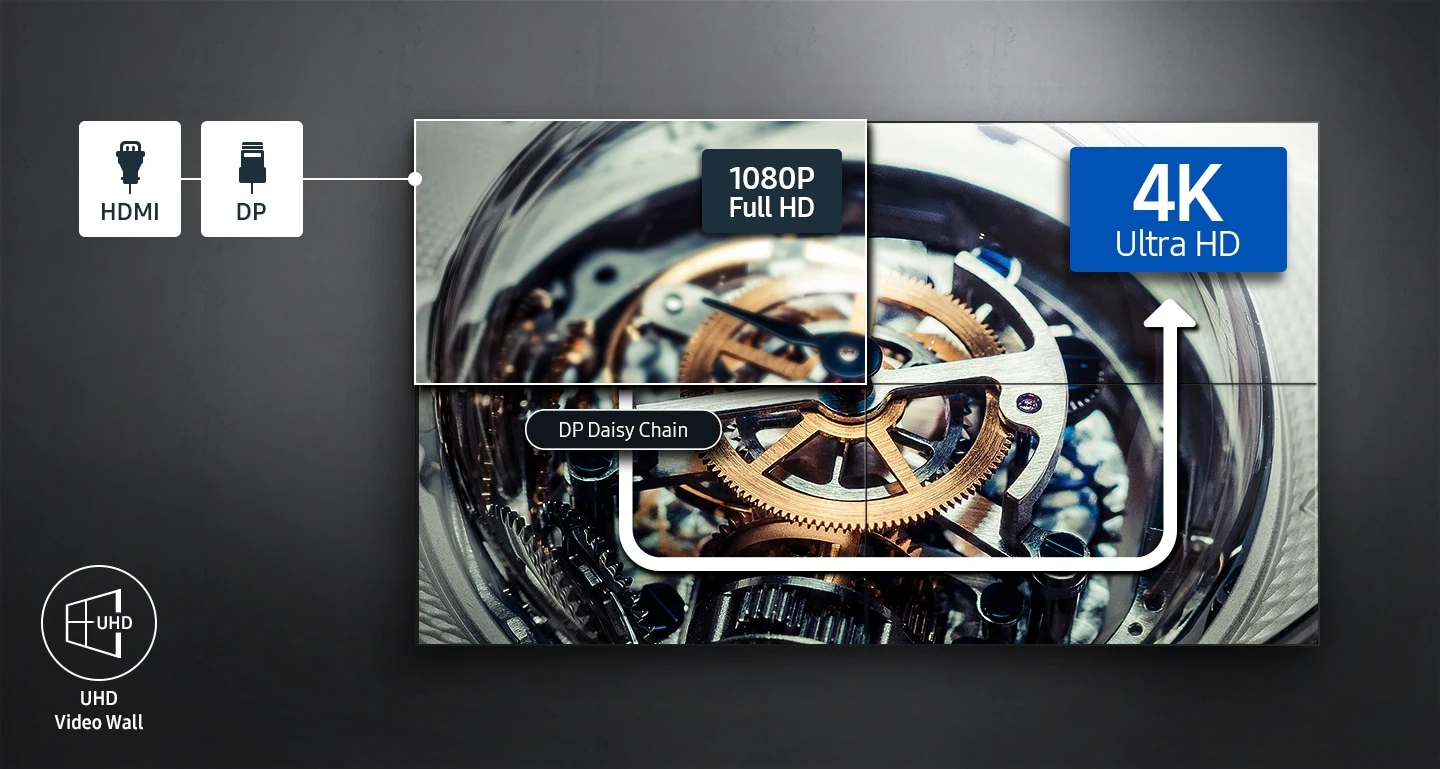

Advanced UHD presentation
Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHC-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.
Industry standard certified
The VHC-R series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 4-step, ISTA-certified test to minimize possible damage during delivery.
Technical specifications
- Diagonal Size 55"
- Panel Type IPS
- Resolution 1,920 x 1,080
- Pixel Pitch (HxV) 0.63x0.63
- Brightness (Typ) MAX 700 nit
- Contrast Ratio 1,100:1
- Viewing Angle (Horizontal/Vertical) 178/178
- Response Time 8ms
- Colour Gamut 72 %
- Glass Haze 28 %
- H-Scanning Frequency 57.3kHz ~ 70kHz
- Maximum Pixel Frequency 78MHz
- V-Scanning Frequency 47Hz ~ 63Hz
- Contrast Ratio (Dynamic) 140,000:1
- Operation Time Support 24/7
- HDMI In 2
- DP In 1
- DVI In 1
- Version of HDMI 2
- Version of DP 1.2
- Version of HDCP 2.2
- USB 1
- IR In Yes
- Audio In Yes
- Audio Out Stereo Mini Jack
- Video Out No
- Güç Çıkışı Evet
- RS232 In Yes
- RS232 Out Stereo Mini Jack
- RJ45 In Yes
- WiFi No
- Power Supply AC100-240V 50/60Hz
- Power Consumption (On Mode) 250 W
- Power Consumption (Sleep Mode) 0.5 W
- Set Dimension (WxHxD) 1211.0 x 681.7 x 69.9 mm
- Package Dimension (WxHxD) 1414.0 x 844.0 x 257.0 mm
- Set Weight 16.8 kg
- Package Weight 25.1 kg
- Temperature 0℃~ 40℃
- Humidity 10 ~ 90%
- VESA Mount 600 x 400 mm
- Bezel Width 0.44 (even)
- Bezel Color Black
- Frame Material Glossy
- Mount Yes
- Stand No
- Energy Efficiency Class G
