OHA

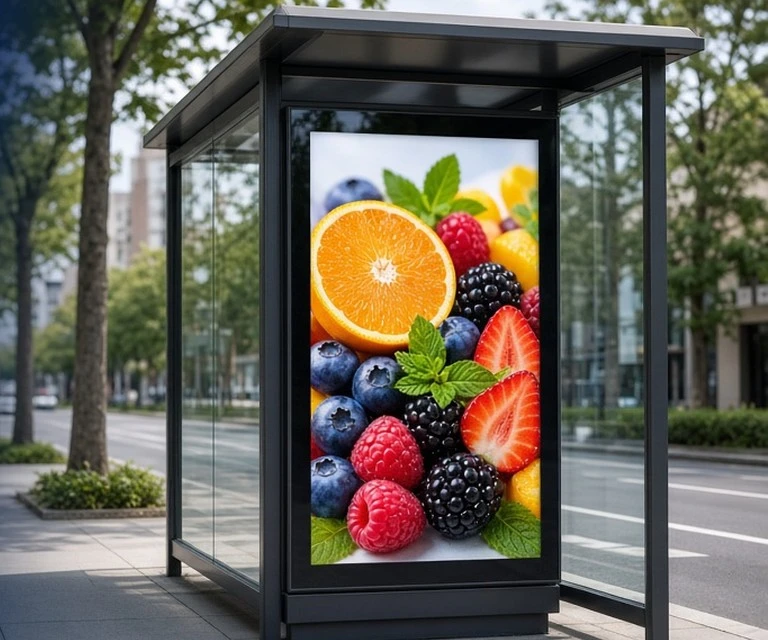

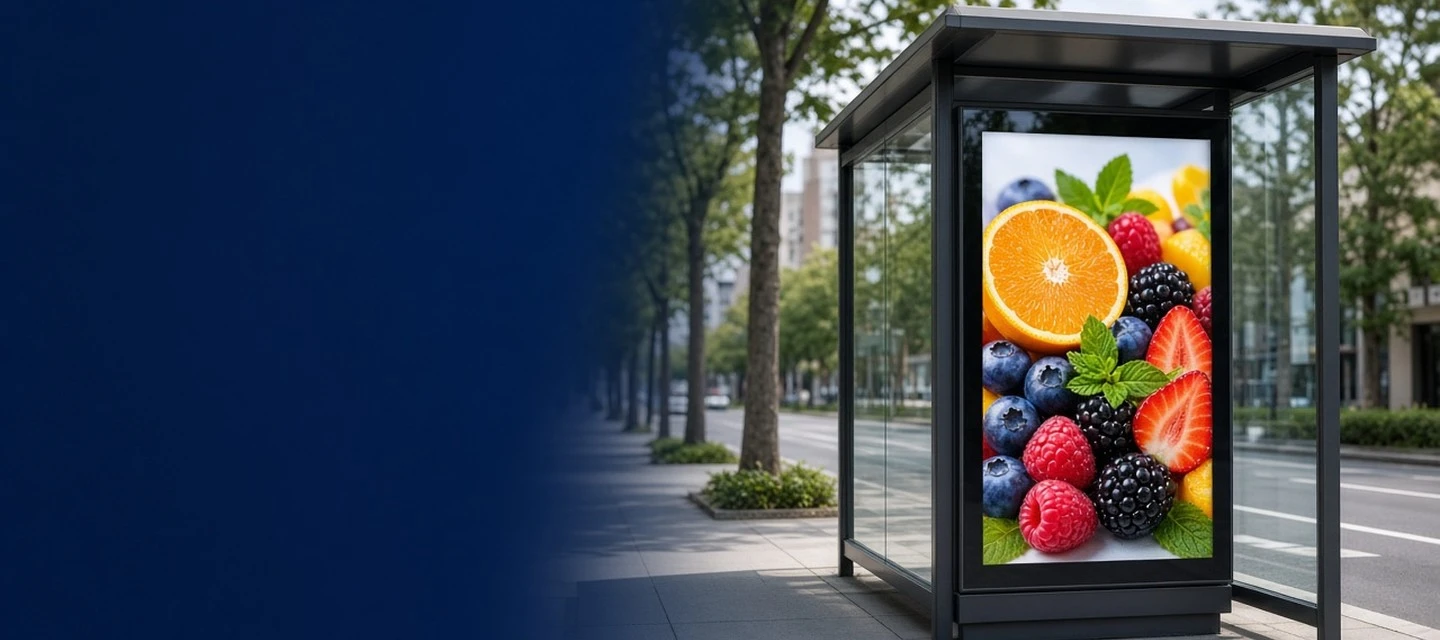

Samsung Outdoor Signage OHA
75-inch 4K outdoor signage: 3,500 nit brightness, anti-reflection, robust protection and 24/7 operation.
Samsung

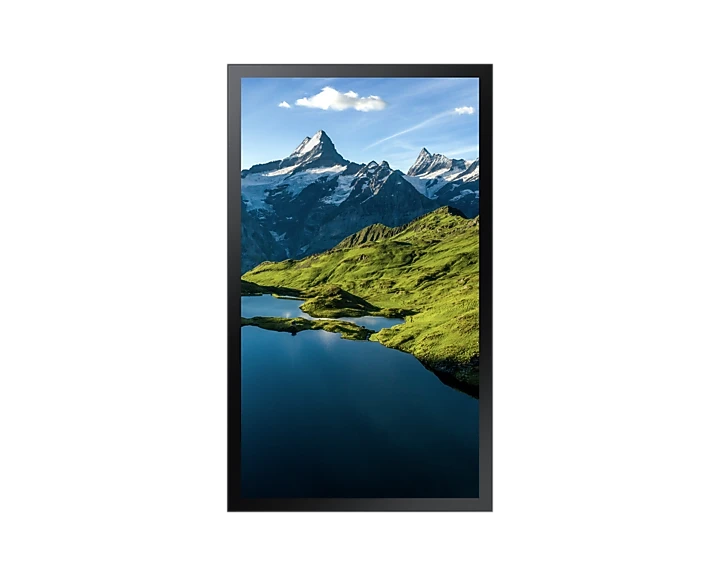

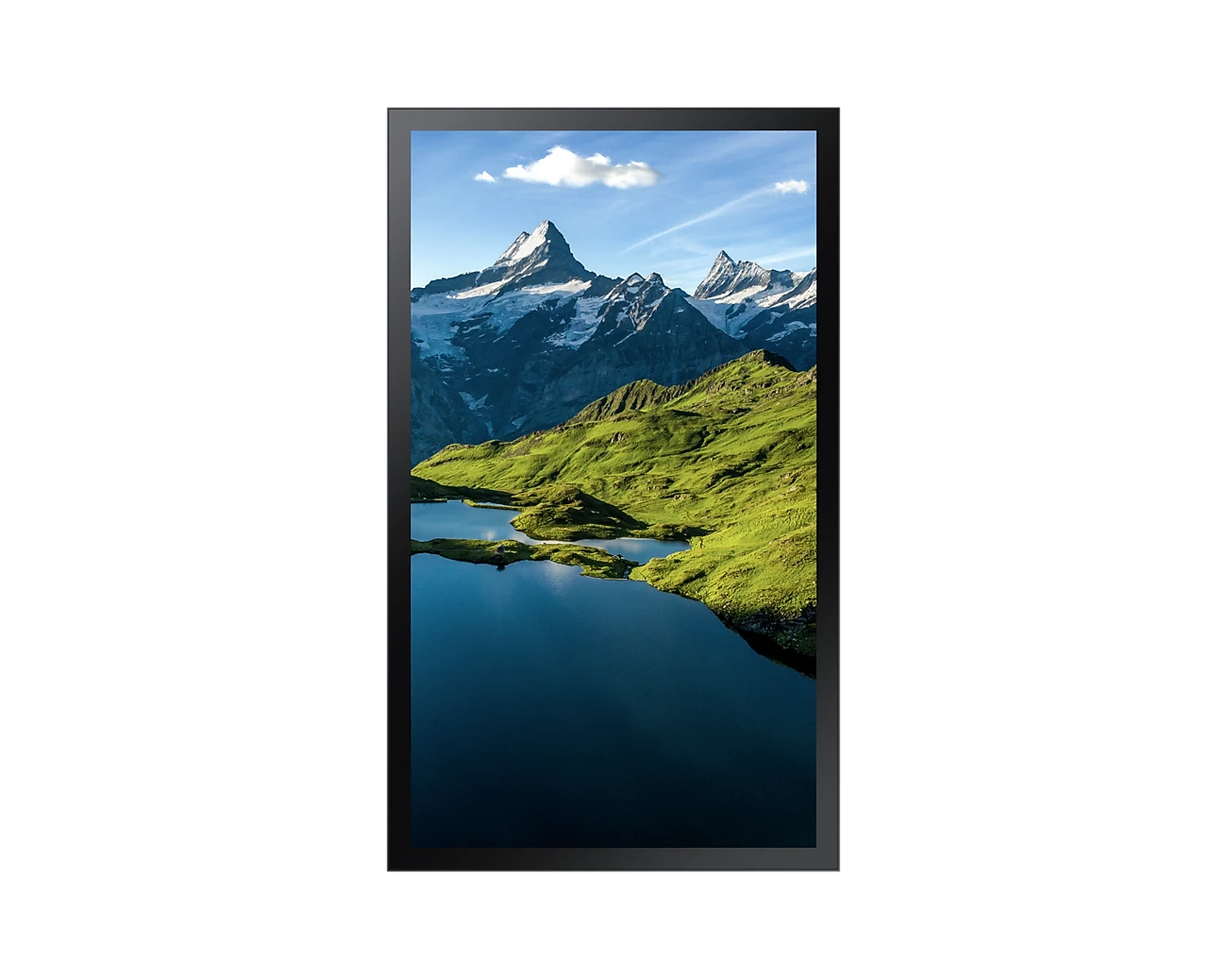

OHA is a 75-inch 4K outdoor display that stays legible even in direct sunlight with 3,500 nit brightness. It is designed to deliver messages clearly and effectively anytime, anywhere.
Crystal Processor 4K and Dynamic Crystal Display provide vivid images while anti-reflection technology improves legibility. Built to withstand varied outdoor conditions with robust protection, it delivers reliable 24/7 operation.
Featured features
3,500 nit brightness
Anti-reflection technology
Crystal Processor 4K
Built for varied outdoor conditions
24/7 operation support

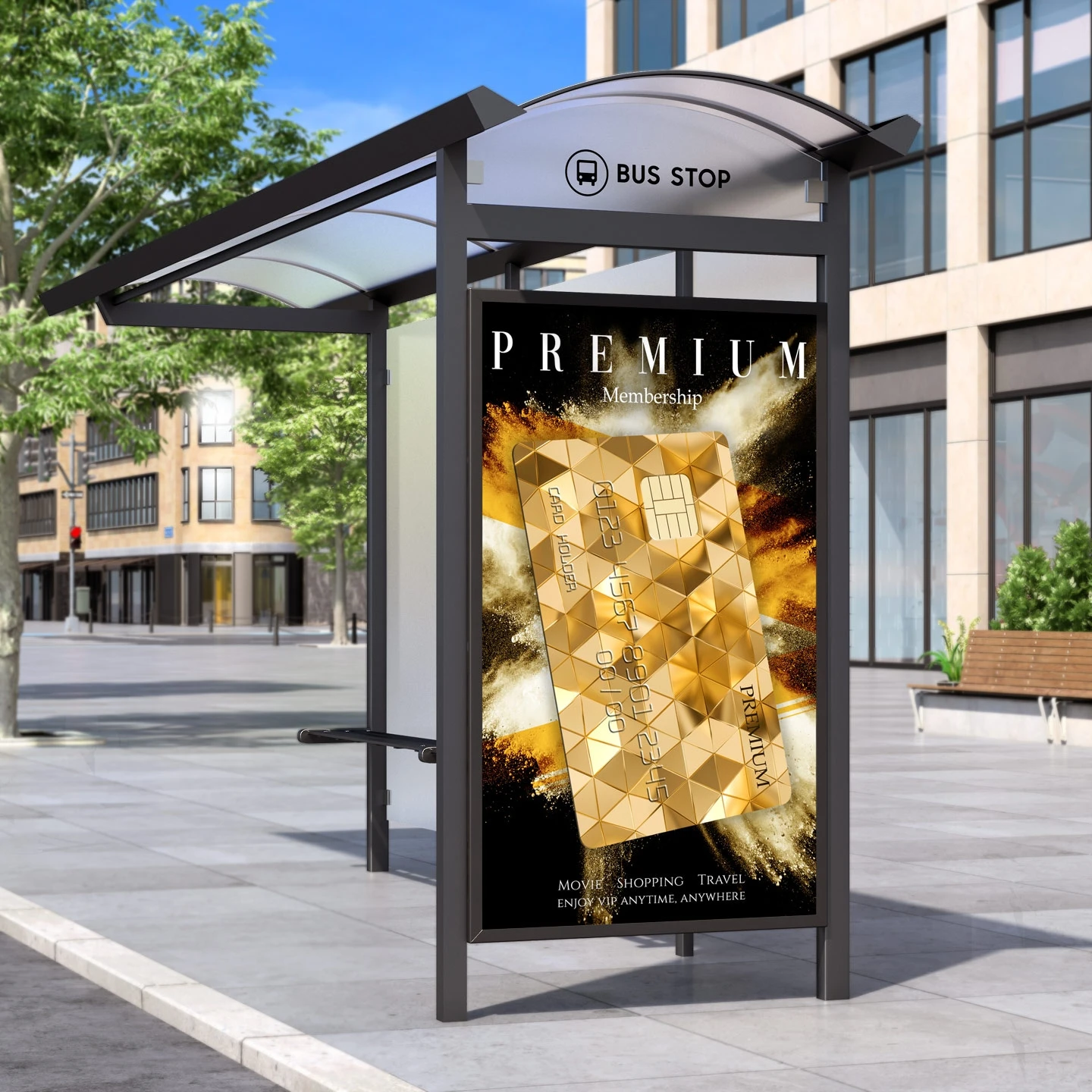

Deliver bright and brilliant messages, built for the outdoors
When it comes to providing concise communication for customers, Samsung’s OH75A features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH75A is packed with robust hardware, ensuring longevity and flexibility.
Clear and vivid anytime, anywhere
With UL verification, Samsung’s OH75A provides UHD resolution and over 3,500nit brightness, allowing high visibility in various weather conditions. The screen uses a polarization technology to ensure viewing capability while wearing polarized lenses.

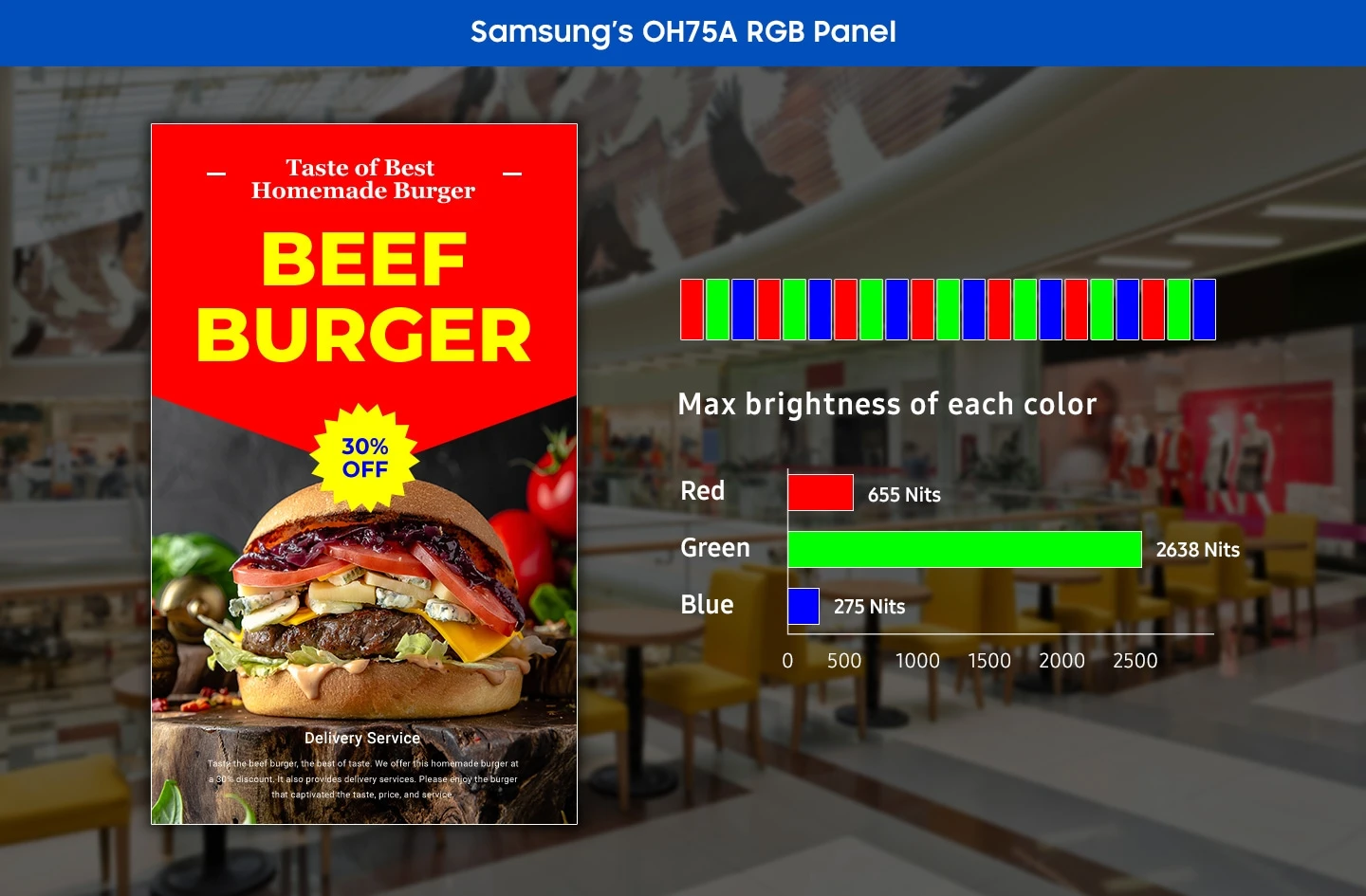

Bright and vivid colors for accurate communication and delivery
The OHA series delivers advanced color accuracy and brightness, creating vivid content through enhanced color reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OHA’s uncompromised picture quality will be sure to capture customer attention.

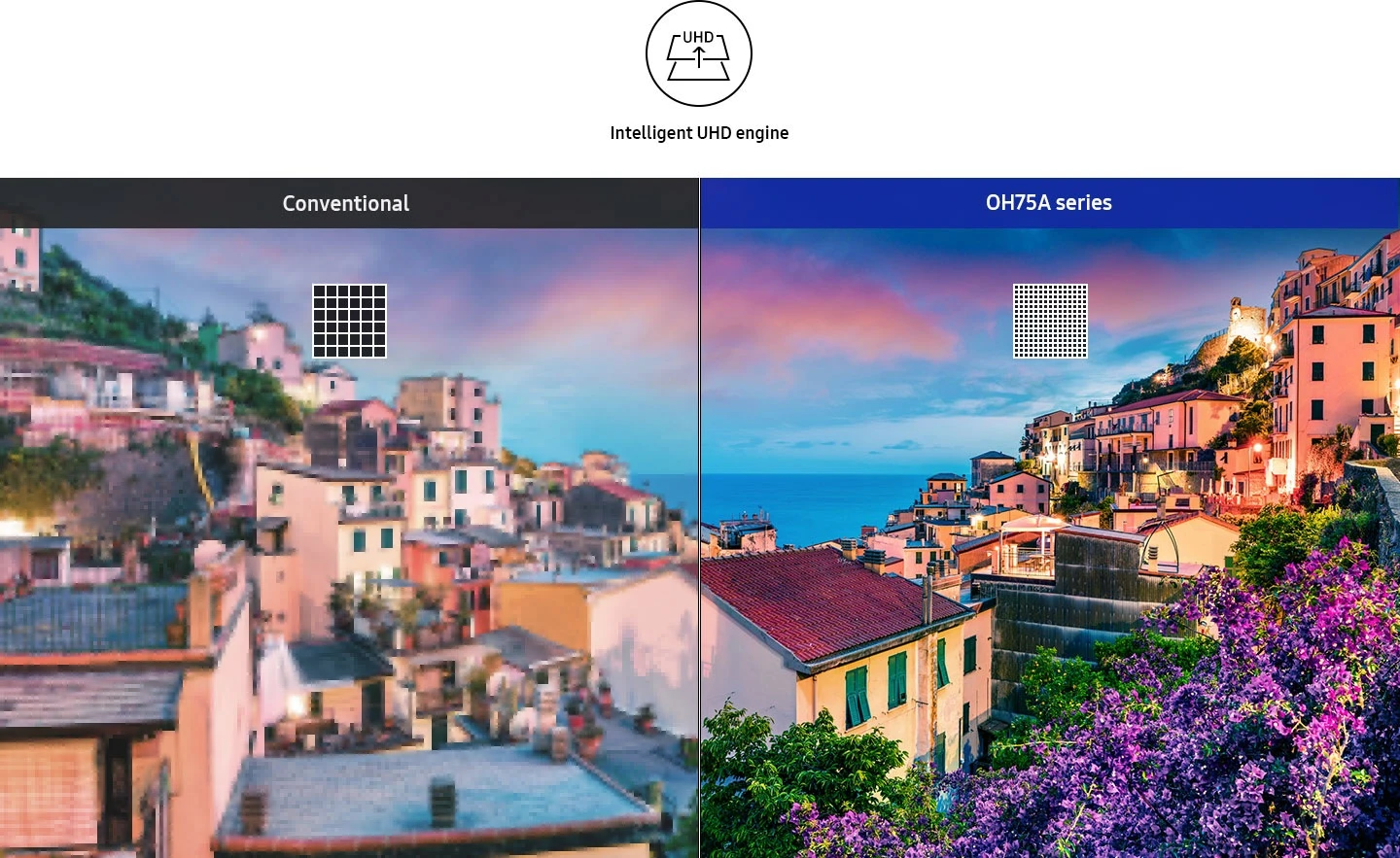

Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

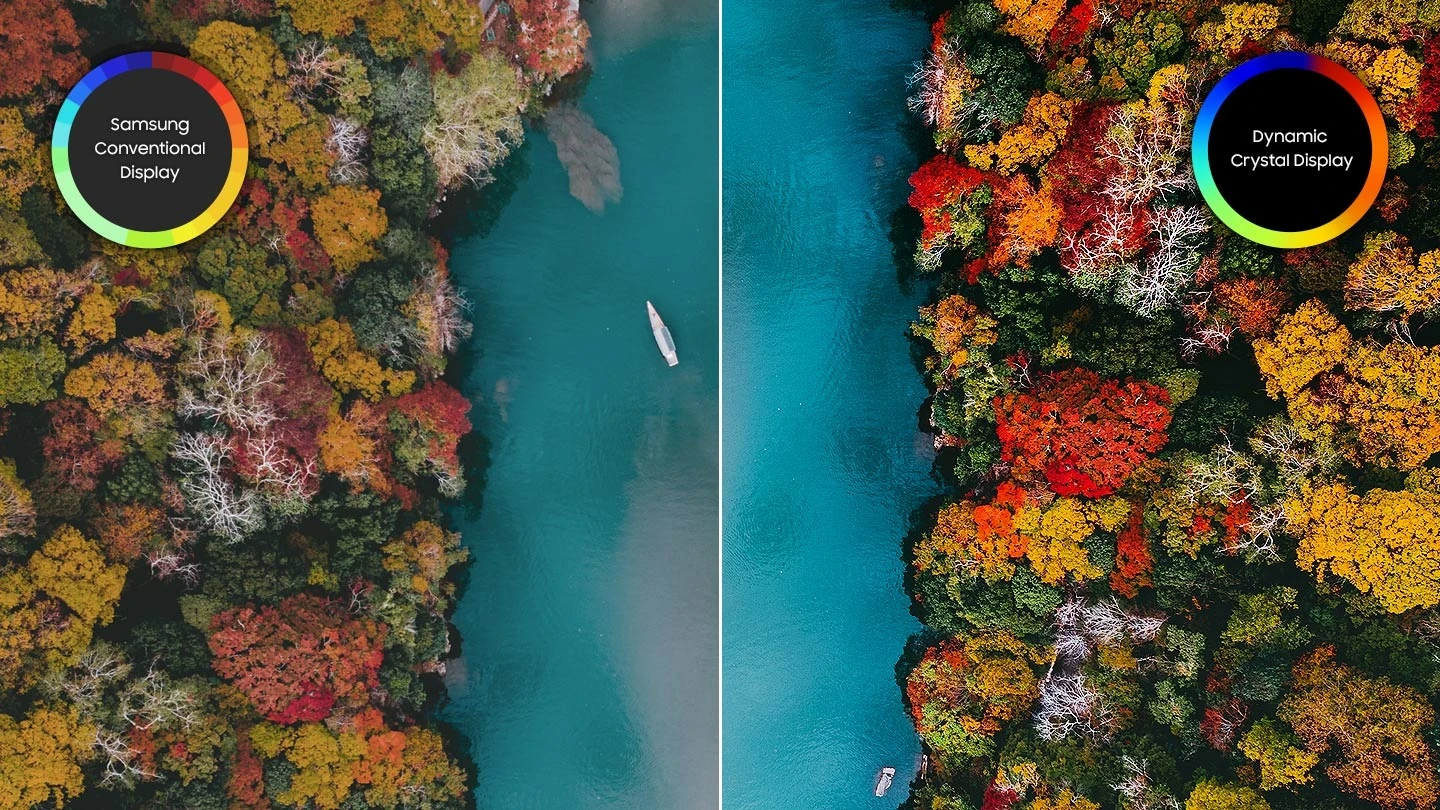

Dynamic Crystal Display
The OH75A series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.
Enhanced visibility with anti-reflection technology
Samsung OH75A is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer.
Optimized protection in a variety of outdoor conditions
With certified IP56-rated protection, OHA delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance.

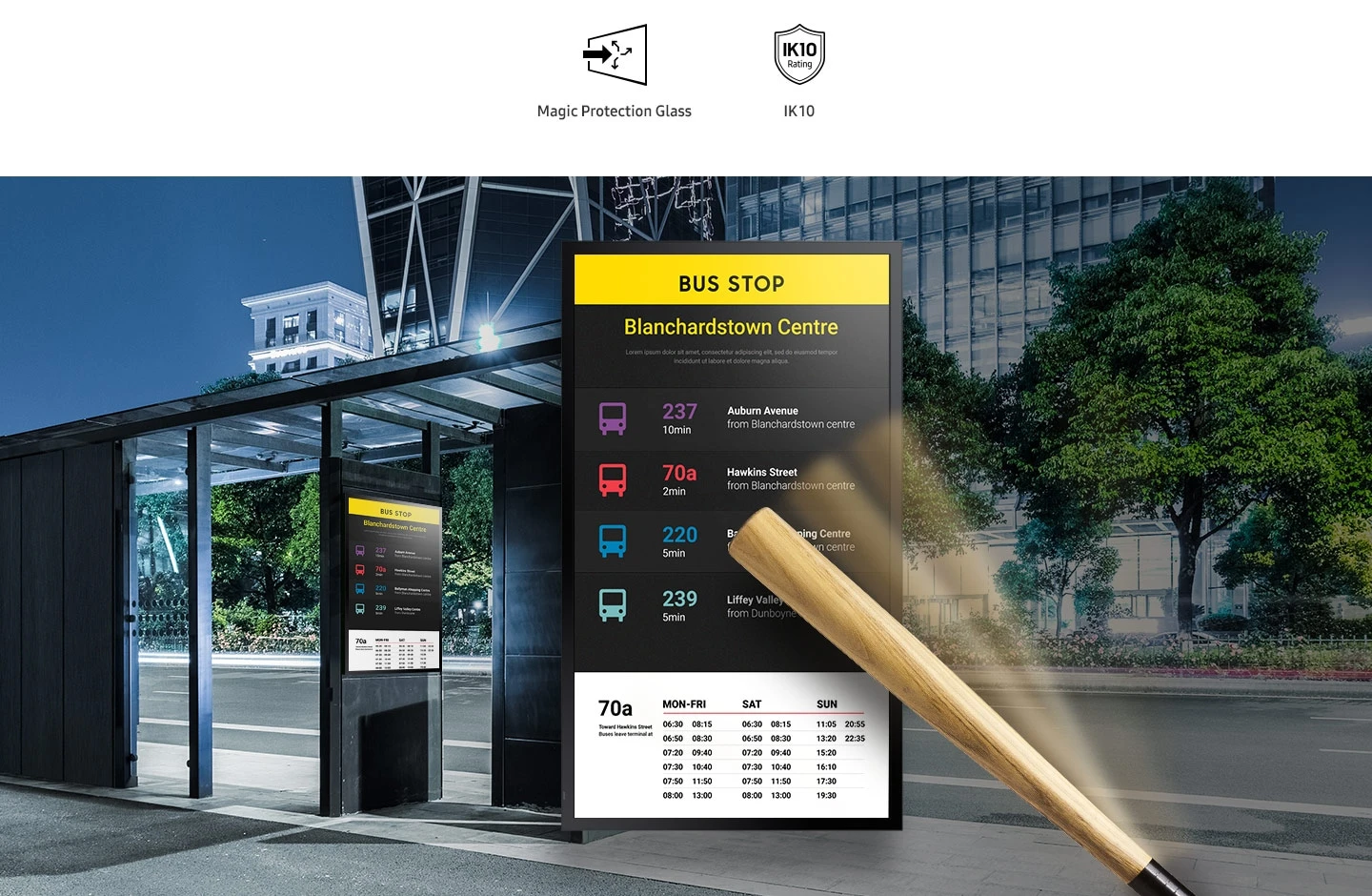

Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OHA provides durability that is IK10-rated, ensuring advanced safety and protection against external impact. This ensures the product is safe against unexpected damage, giving store manager better peace of mind.
Technical specifications
- Diagonal Size 75"
- Panel Type ADS
- Resolution 3,840 x 2,160
- Pixel Pitch (HxV) 429.6 x 429.6
- Brightness (Typ) 3500 nit
- Contrast Ratio 1,200:1
- Viewing Angle (Horizontal/Vertical) 178/178
- Response Time 14ms
- Colour Gamut NTSC 72%
- Glass Haze 2.5 %
- H-Scanning Frequency 15~81KHz (HDMI), 30~135KHz (DP)
- Maximum Pixel Frequency 77MHz
- V-Scanning Frequency 24~75Hz (HDMI), 30~75Hz (DP)
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 24/7
- HDMI In 2
- DP In 1
- Version of HDMI 2
- Version of DP 1.2
- Version of HDCP 2.2
- USB 1
- IR In No
- HDBaseT Out No
- Audio Out Stereo Mini Jack
- Video Out No
- RS232 In Yes
- RJ45 In Yes
- WiFi No
- Power Supply AC100-240V 50/60Hz
- Power Consumption (On Mode) 1200W
- Power Consumption (Sleep Mode) 0.5W
- Set Dimension (WxHxD) 1774.8 x 1053.4 x 130 mm
- Package Dimension (WxHxD) 1932 x 1251 x 367 mm
- Set Weight 134 kg
- Package Weight 150 kg
- Temperature -30~+50 ℃
- Humidity 10 ~ 80%, non-condensing
- Protection Glass Yes
- Bezel Width 59.8
- Çerçeve Rengi Siyah
- Glass Thickness 5T
- Glass Film IR-Cut Film
- Frame Material Metal (Aluminum)
- OS Version Tizen 5.0
- Flash Memory Size 8GB
- EMC Class A
- Safety 60950-1
