OHD

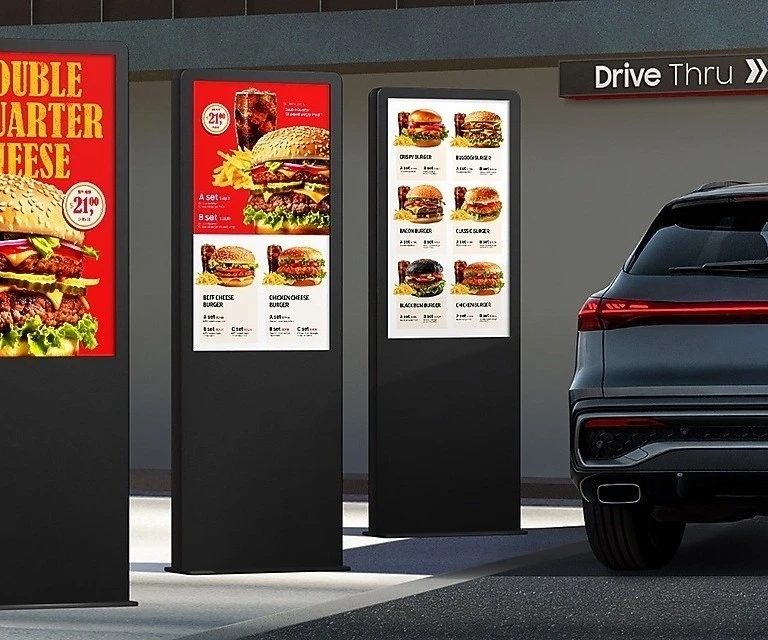

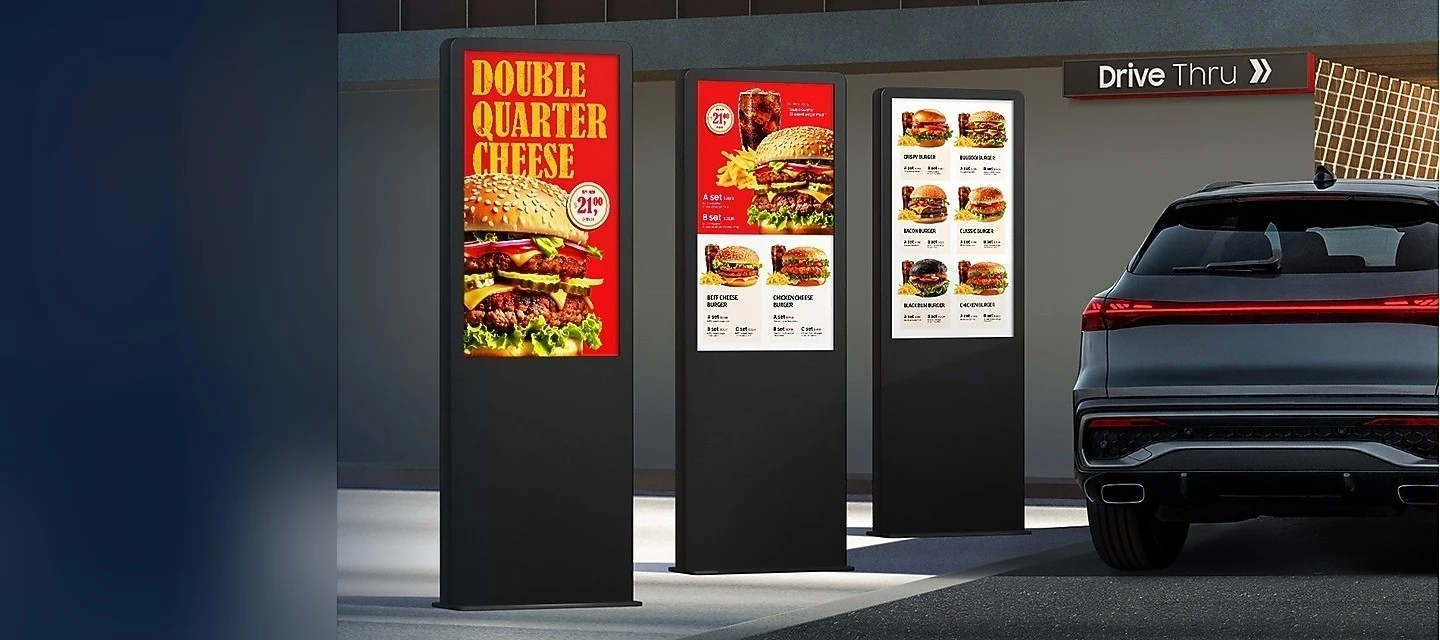

Samsung Outdoor Signage OHD
55-inch FHD outdoor signage: 3,500 nit (4,000 peak), IP56 and IK10 protection, auto brightness sensor and 24/7 operation.
Samsung
OHD is a 55-inch FHD display designed for demanding outdoor conditions. With 3,500 nit brightness (4,000 nit peak) and an auto brightness sensor, content looks eye-catching anytime, anywhere.
IP56 dust and water protection, IK10 impact protection, a heat dissipation structure and an attachable second glass deliver exceptional durability. Its slim depth simplifies installation, and it is managed remotely with SmartThings Pro and Samsung VXT.
Featured features
3,500 nit (4,000 nit peak) brightness
IP56 and IK10 protection
Auto brightness sensor
Attachable second glass structure
24/7 operation, Tizen 8.0

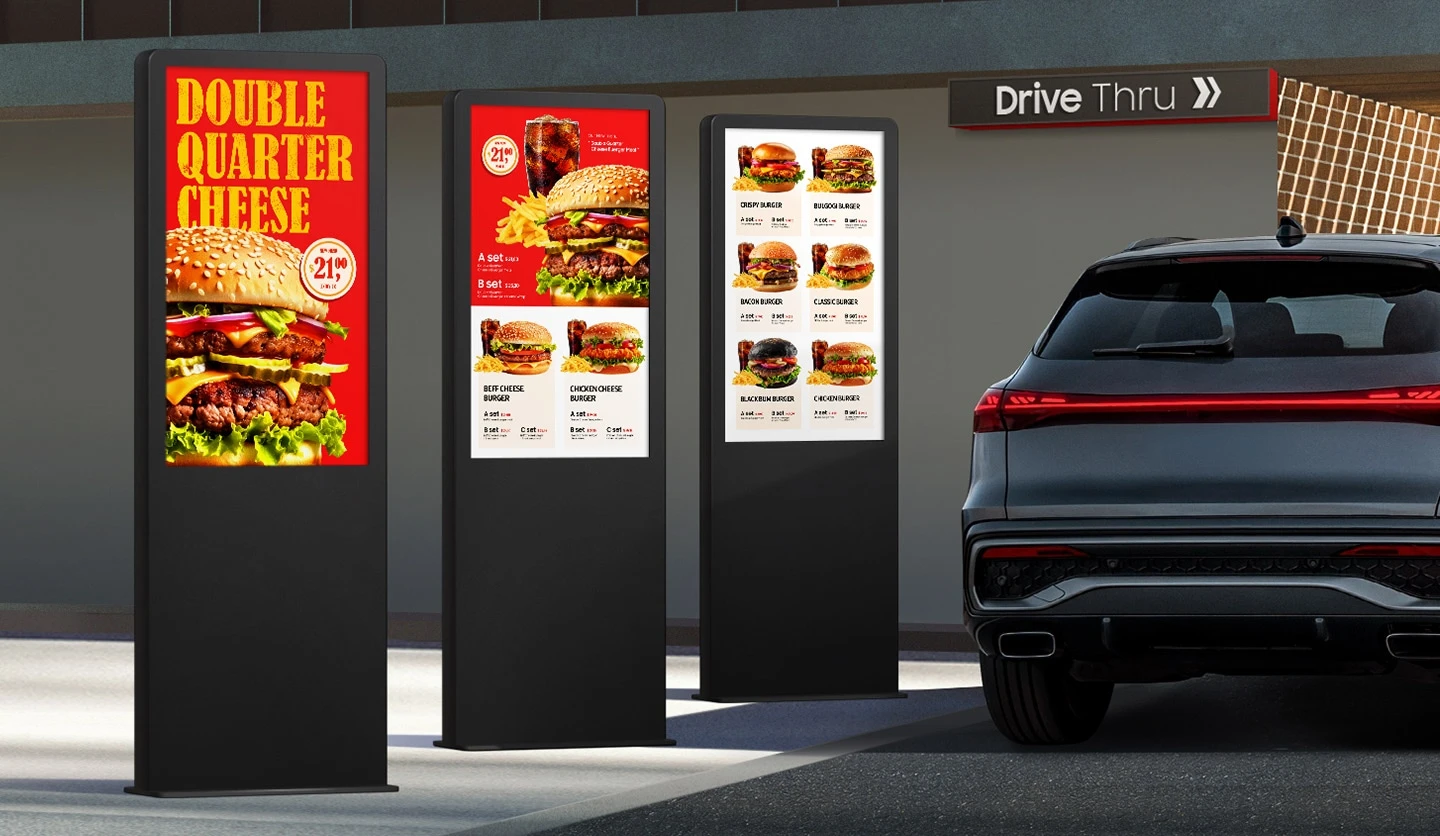

Exceptional durability, stunning visuals in outdoor
Samsung OHDX series is built for tough environments, allowing you to captivate your audience daily by effectively delivering your business message beyond the storefront. Even in varying weather, the OHDX ensures your brand presence stays powerful and memorable with a dynamic customer experience.

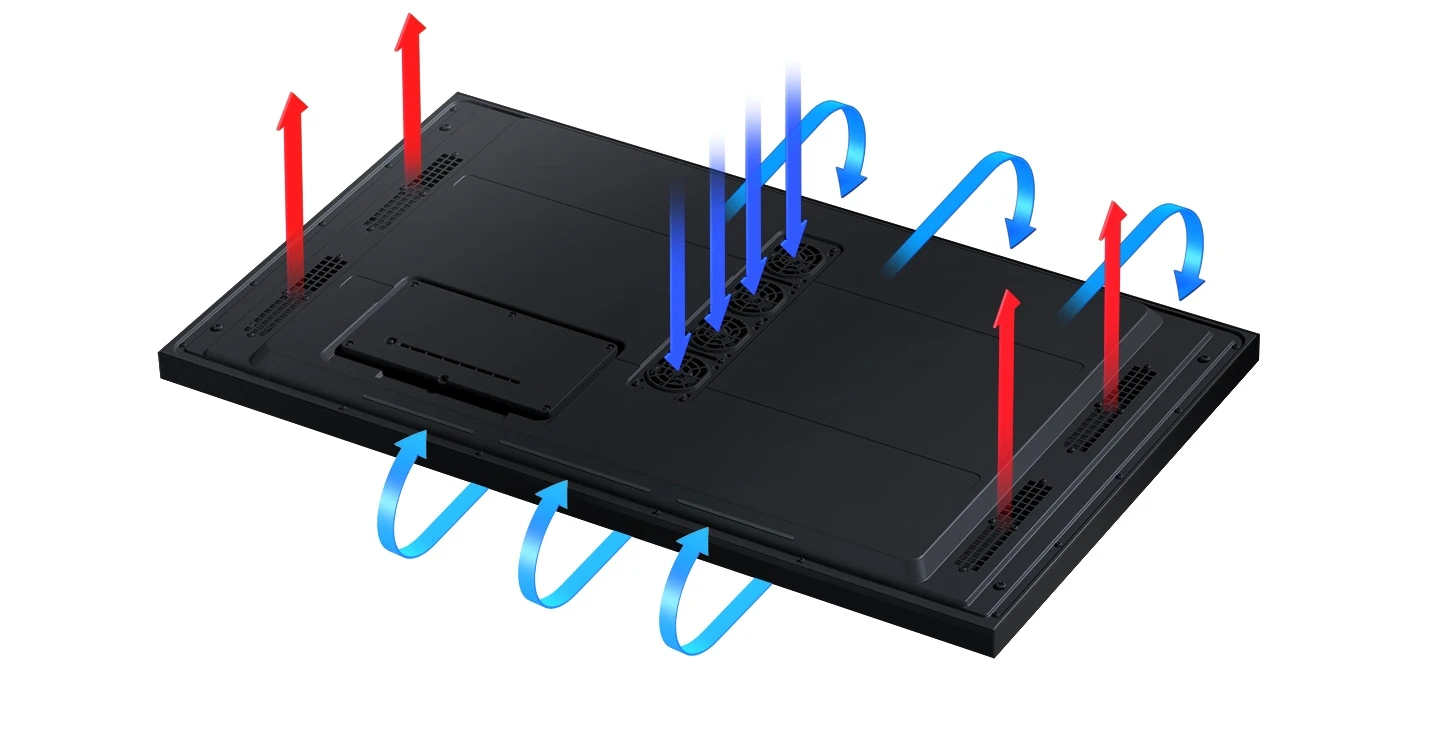

Heat dissipation structure
Featuring an advanced heat dissipation system for efficient air circulation, the OHDX series' design prevents heat damage, common in outdoor displays with high-brightness. The display's effective cooling measures help ensure stable and reliable performance in tough environments.

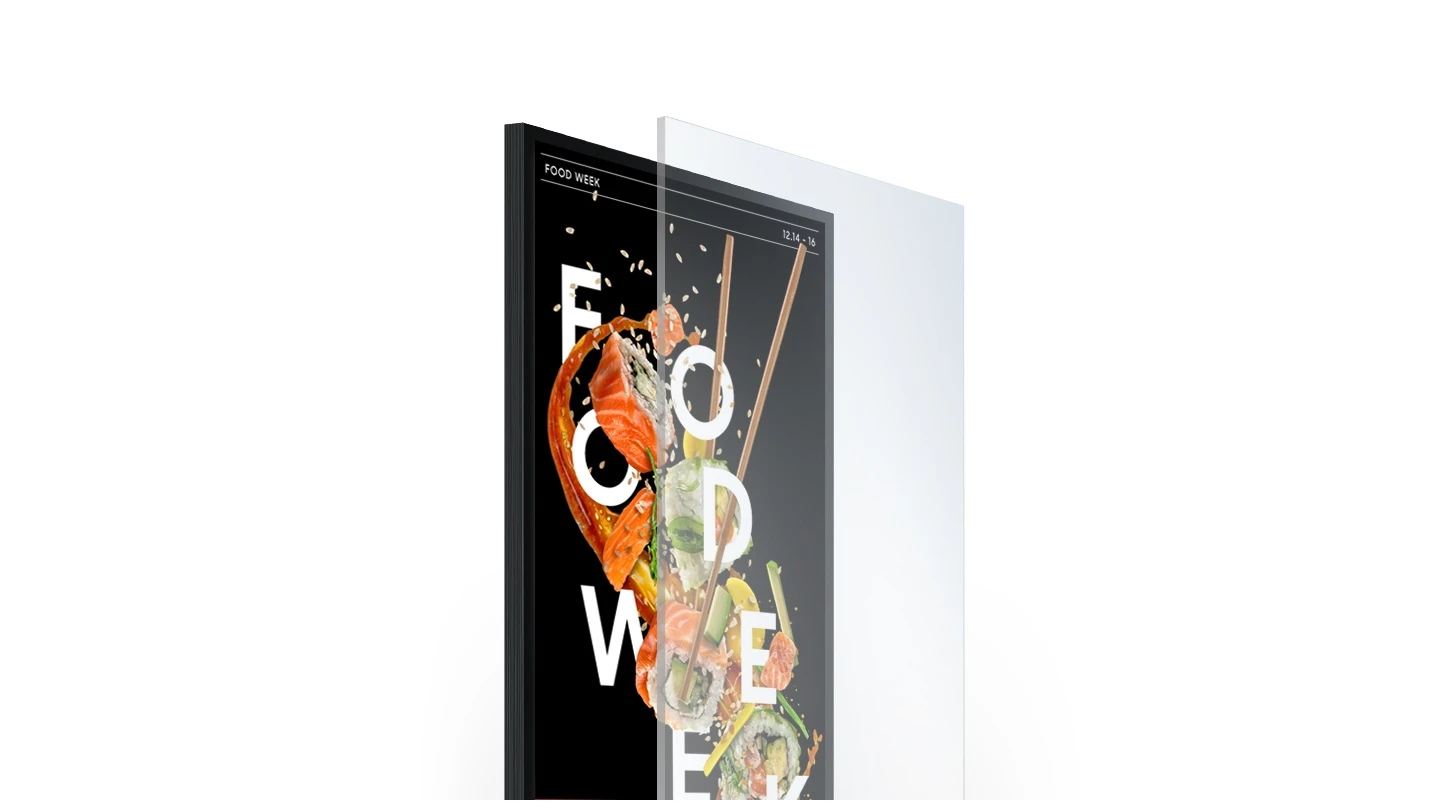

Additional Glass Installable Structure
Even with an additional protective glass applied, product performance and visibility remain stable. Designed with structural compatibility in mind, the display supports enhanced protection without compromise.

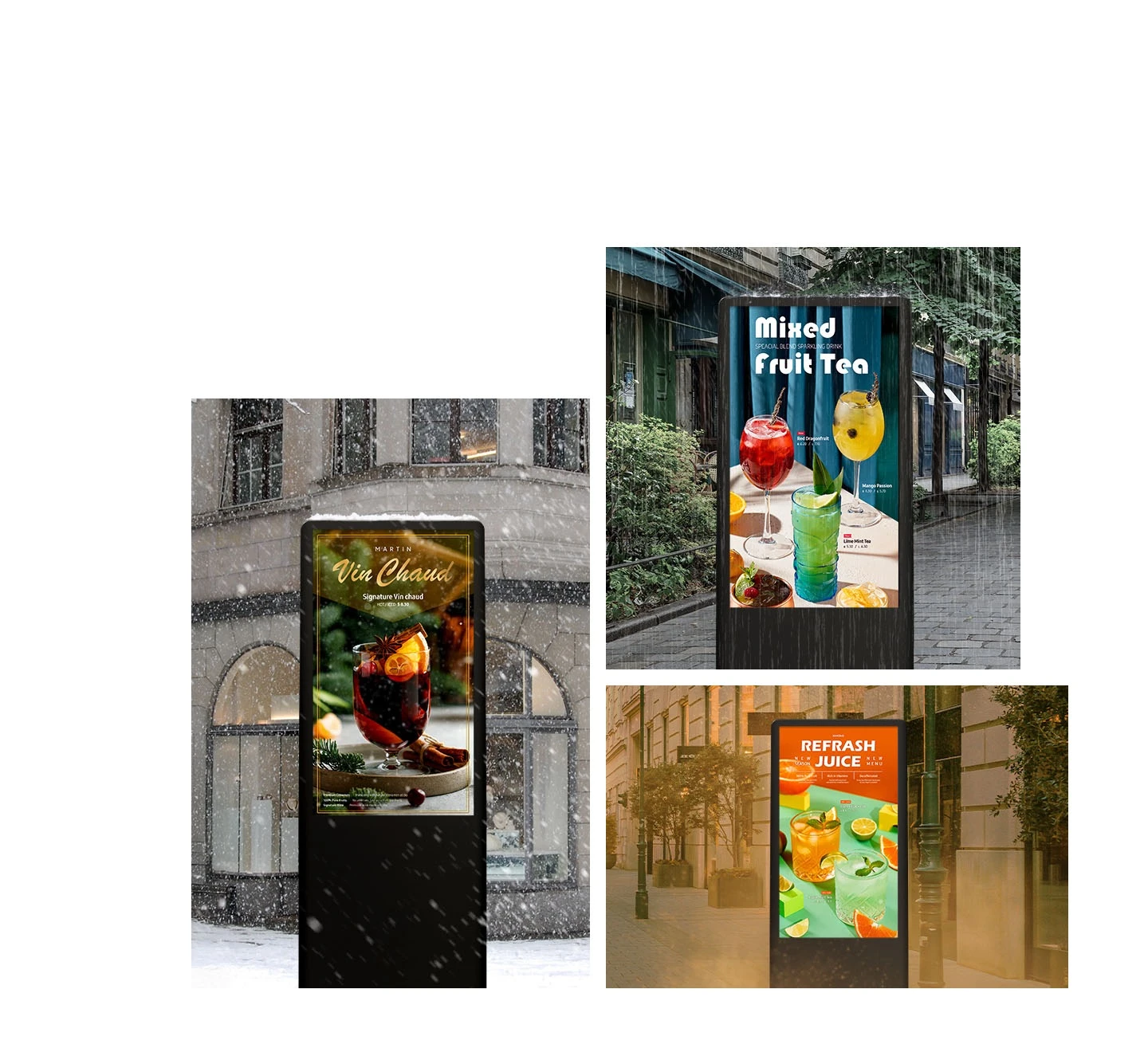

IP56
With certified IP56-rated protection, OHDX series delivers a dustproof and waterproof design that also withstands physical impacts to protect the display. This ensures dependable operation in a variety of outdoor conditions for consistent performance.

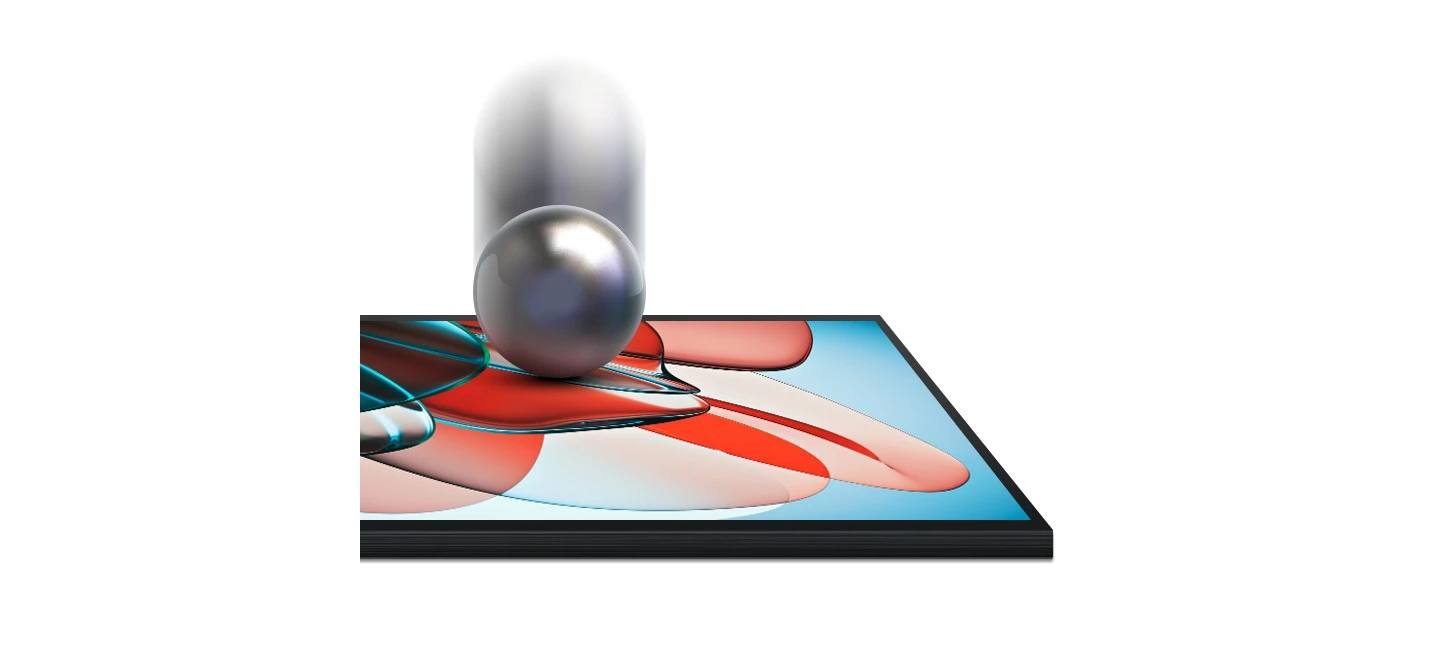

IK10
The OHDX series provides IK10-rated durability, ensuring advanced safety and protection against vandalism, external impact, and physical damage for peace of mind.

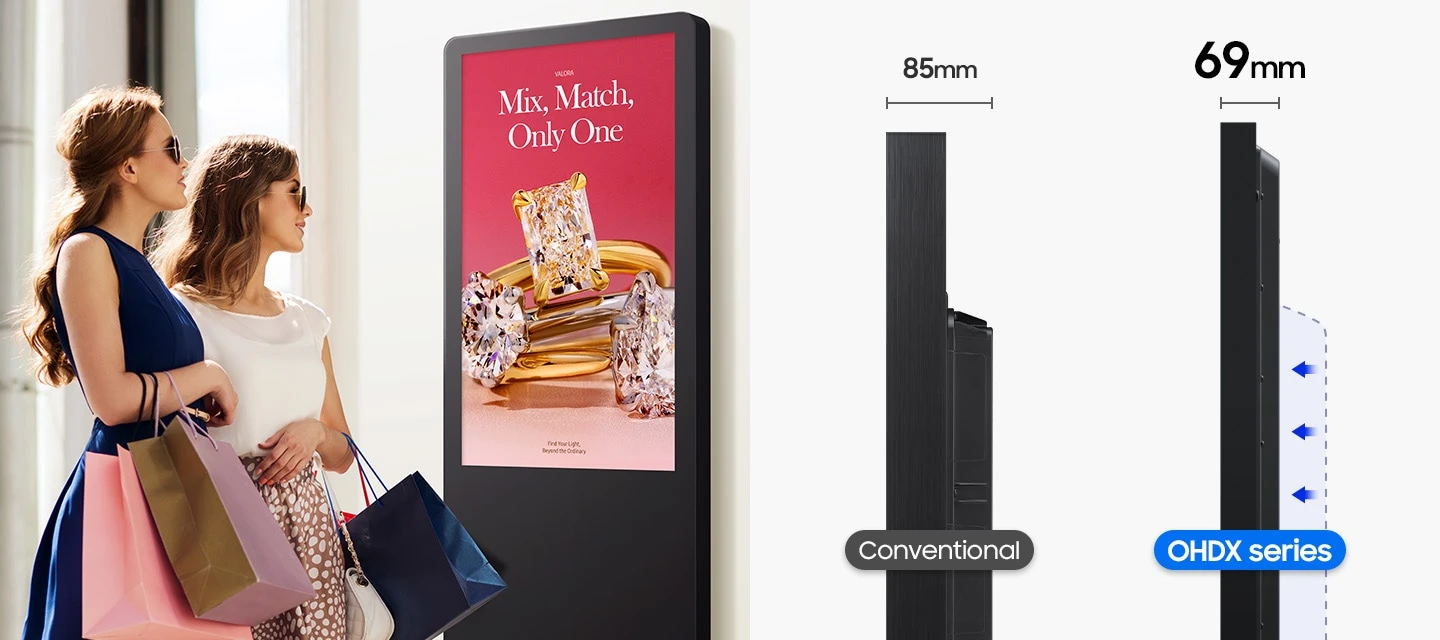

Slim depth
With a slim 69mm depth, the design achieves a balance between installation flexibility and visual sophistication—delivering a more modern outdoor signage experience without increasing bulk.

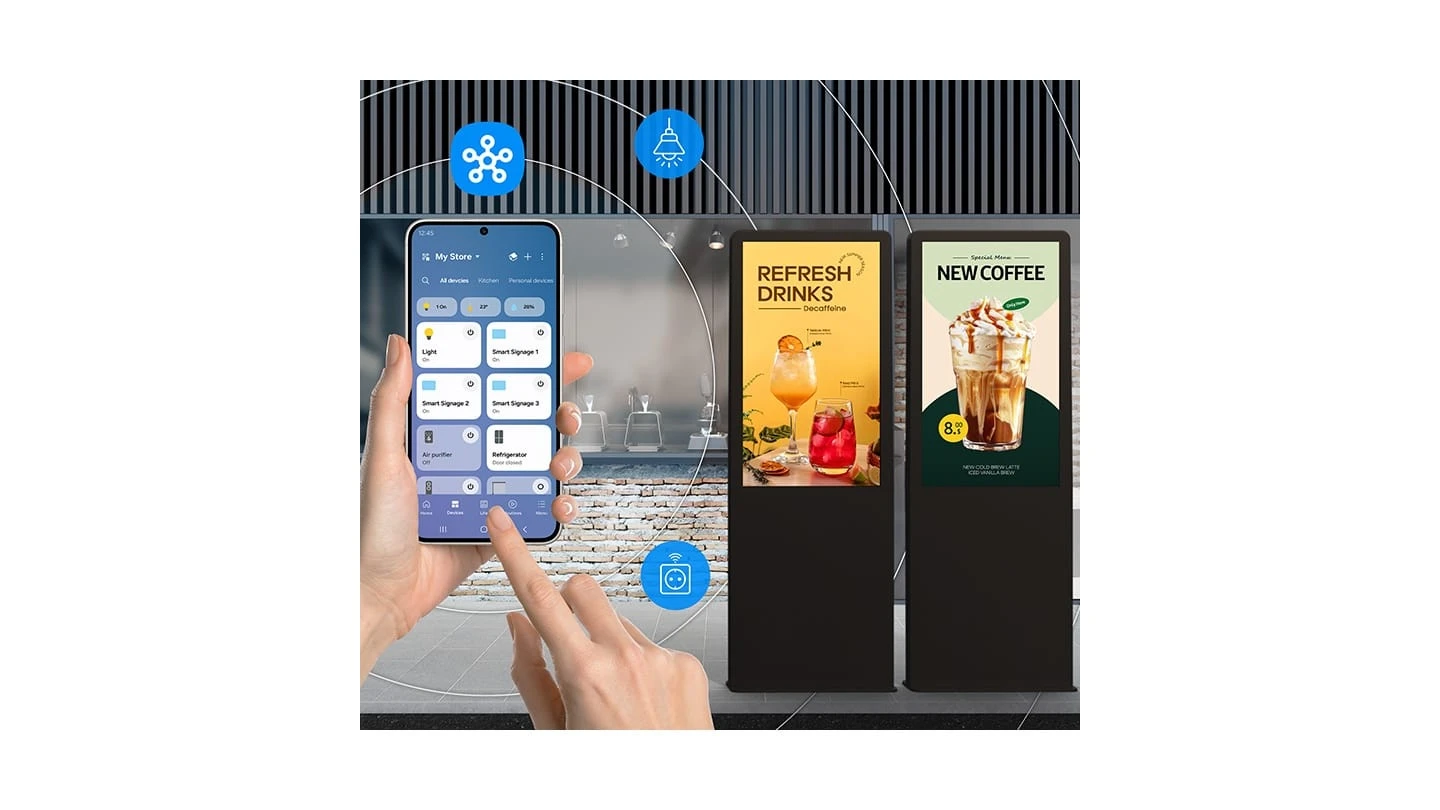

SmartThings Pro
SmartThings Pro brings IoT connectivity to Samsung signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.

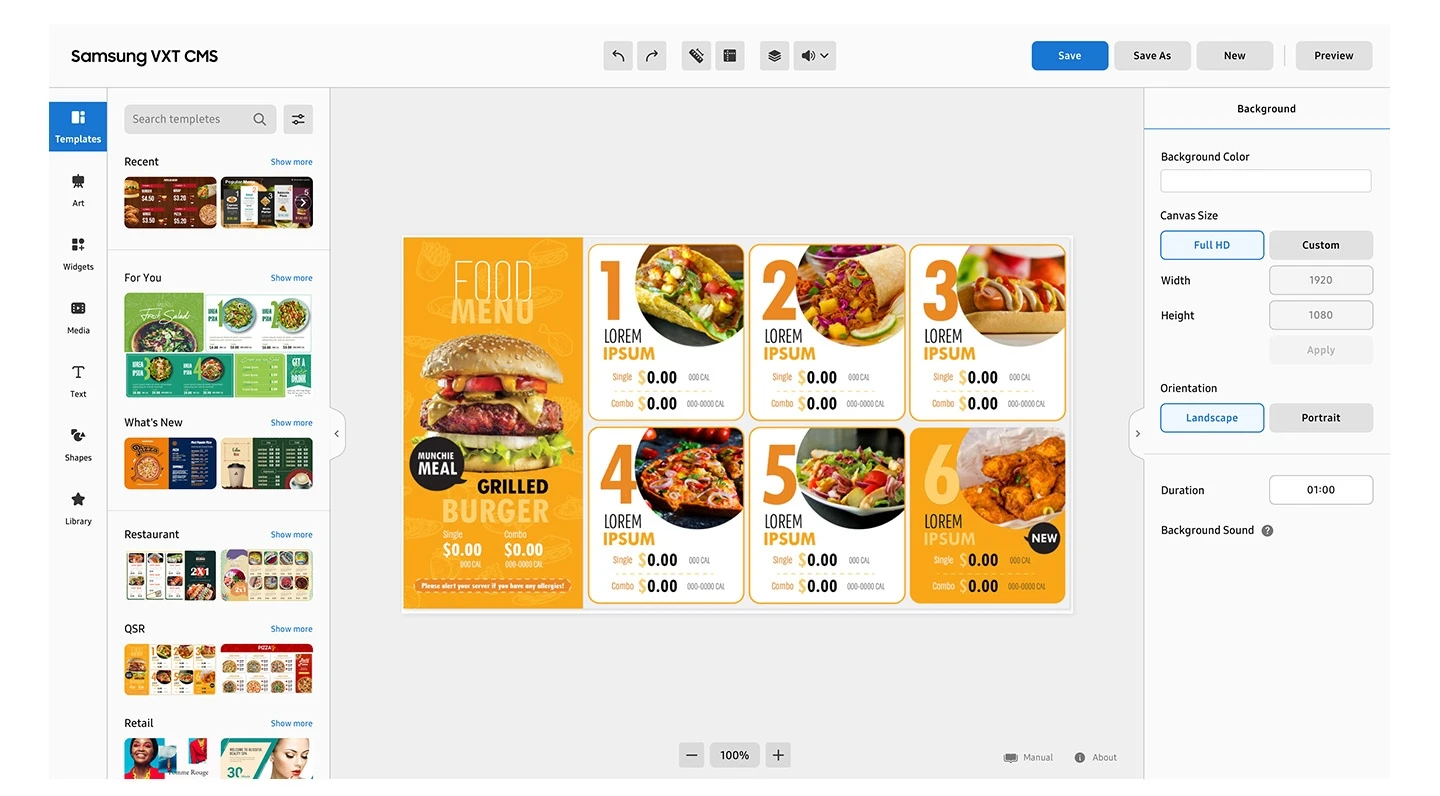

Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities, allowing you to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Technical specifications
- Diagonal Size 55"
- Panel Type VA
- Resolution 1,920 x 1,080
- Pixel Pitch (HxV) 0.63 x 0.63
- Brightness (Typ) 3,500 (Peak 4,000 )
- Contrast Ratio 6,000:1
- Viewing Angle (Horizontal/Vertical) 178/178
- Response Time 6ms
- Colour Gamut 72 %
- Glass Haze 0 %
- H-Scanning Frequency 15~135kHz(HDMI)
- Maximum Pixel Frequency 594MHz(HDMI)
- V-Scanning Frequency 24~75Hz(HDMI)
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 24/7
- HDMI In 2
- Version of HDMI 2
- Version of HDCP 2.2
- USB 2
- HDBaseT In Yes
- Audio Out Stereo Mini Jack
- Video Out No
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- RJ45 Out Yes
- WiFi Yes (External)
- Bluetooth Yes (External)
- Power Supply AC100-240V 50/60Hz
- Power Consumption (On Mode) 580 W
- Power Consumption (Sleep Mode) 0.5 W
- Set Dimension (WxHxD) 1260.6 x 731.4 x 69.0 mm
- Package Dimension (WxHxD) 1398 x 844 x 191 mm
- Set Weight 36.7 kg
- Package Weight 43.1 kg
- Temperature -30℃~ 50℃
- Humidity 10 ~ 80%, non-condensing
- VESA Mount 1186 x 560 mm
- Bezel Width 24.9mm (T/B/L/R)
- Bezel Color Slate Black
- Glass Thickness 3T
- Glass Film AG, AR/IR, SRF
- Protection Glass Yes
- OS Version Tizen 8.0
- Flash Memory Size 8GB
- EMC Class A
- Safety 60950-1, 62368-1
