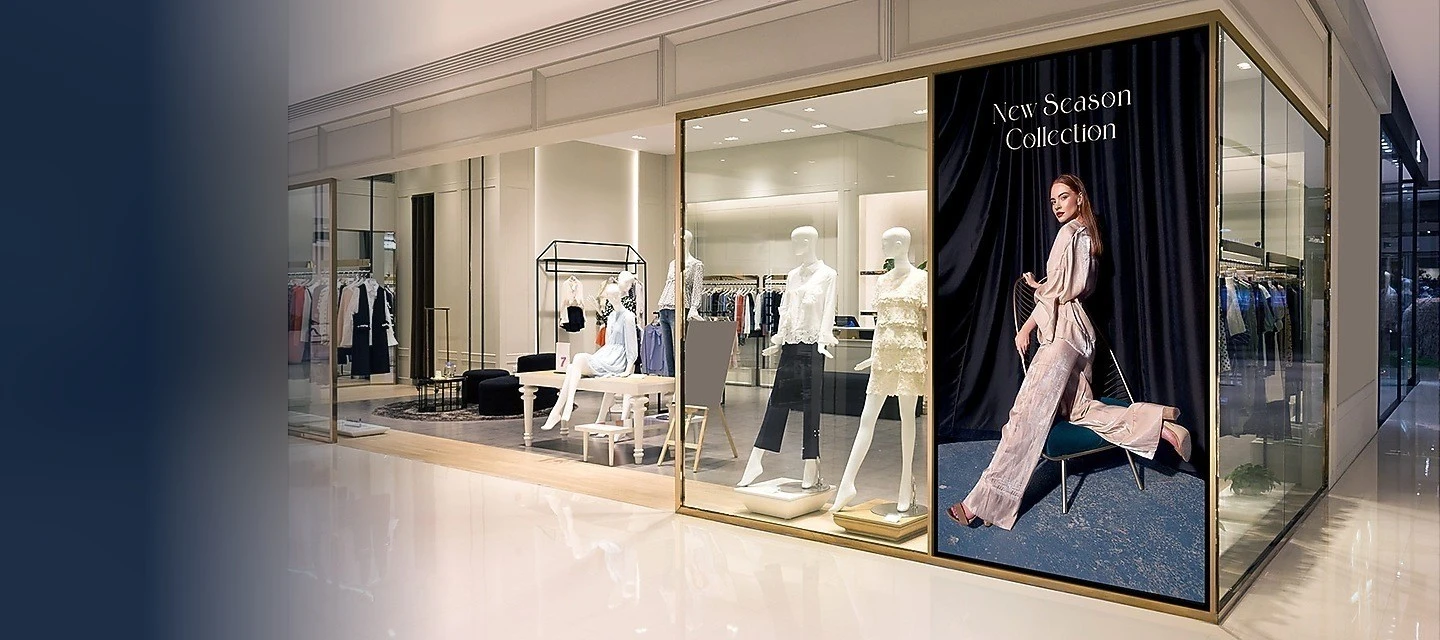

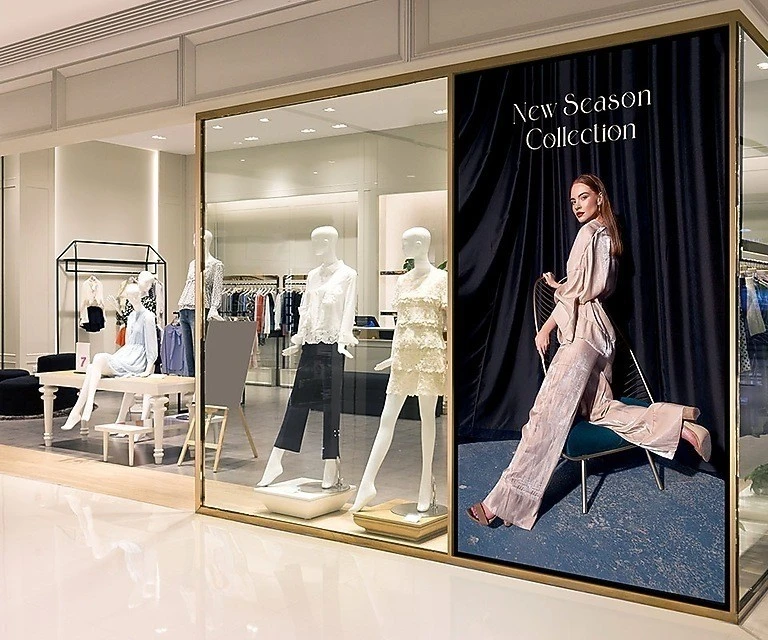

Samsung Smart Signage QHF 115"
115-inch supersized 4K signage: Quantum Mini LED Pro, 1,000 nit, anti-glare surface, built-in 60W speakers and 24/7 operation.
Samsung
QHF is a 4K display with a supersized 115-inch screen, designed for lobbies, meeting halls and large spaces. It supports portrait installation and, with its slim design and 24/7 operation support, helps keep business moving.
Quantum Mini LED Pro and AI-powered picture enhancement and upscaling keep content clear at large scale. Built-in 60W 4.2.2ch speakers, SMARTVIEW+, Custom Home, Tizen Enterprise Platform, Samsung Knox and Samsung VXT cover everything from the meeting room to enterprise management.
Featured features
Quantum Mini LED Pro
1,000 nit brightness, anti-glare surface
24/7 operation, portrait installation support
Built-in 60W 4.2.2ch speakers
AI-powered upscaling
Tizen 8.0, Samsung Knox security
Samsung VXT and SmartThings Pro

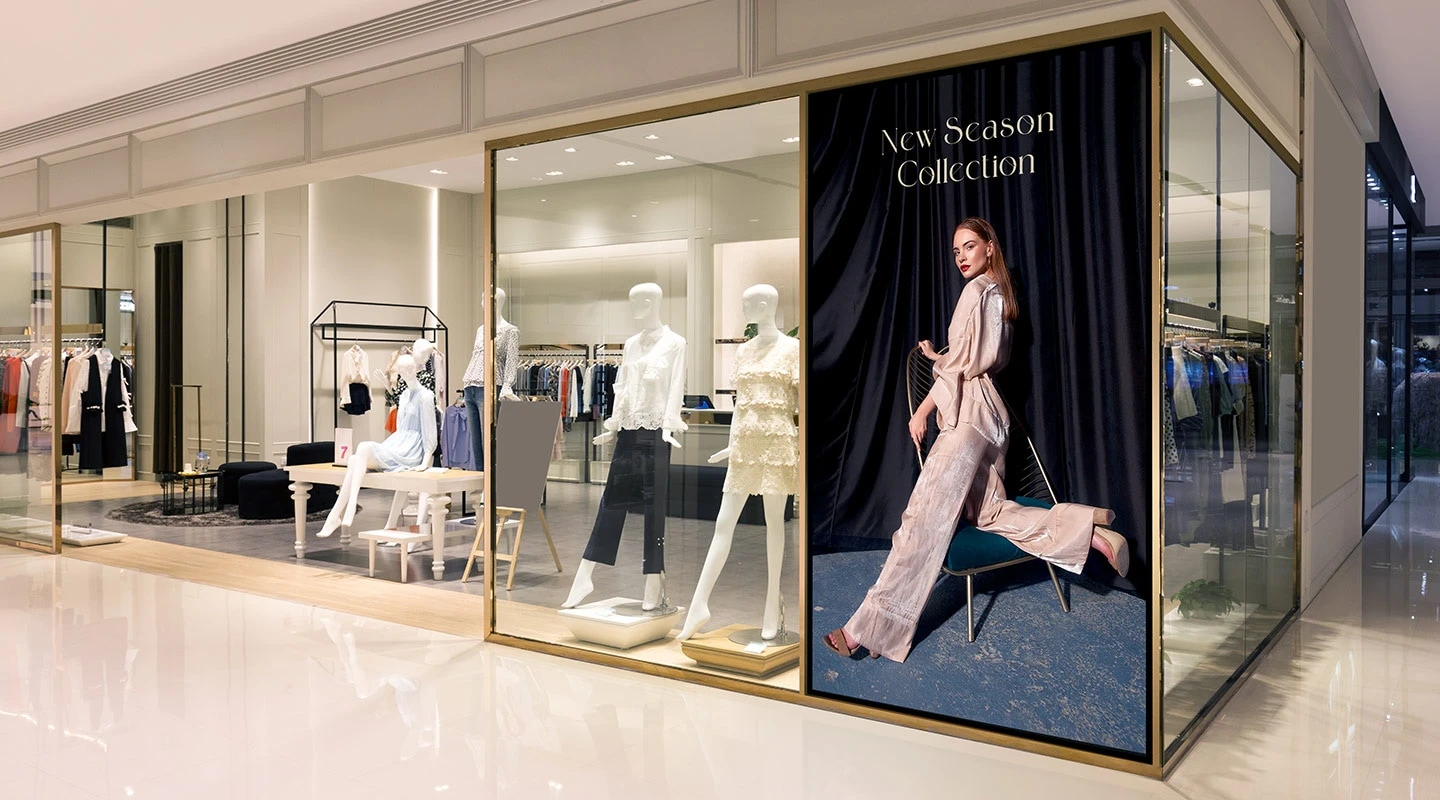

Scale up your business with a supersized screen
A new standard for large-scale display. Step into the next era of business display with Samsung’s 115-inch standalone. Designed for immersive visual storytelling, it brings bold visual impact to a variety of commercial settings—from high-end retail and corporate boardrooms to theaters, indoor arenas, and beyond. From its unmatched size and slim profile to flexible installation and premium picture quality, this display delivers on every front. Built to run 24/7, it combines stunning design with commercial-grade durability, unlocking new creative and operational potential for your business.

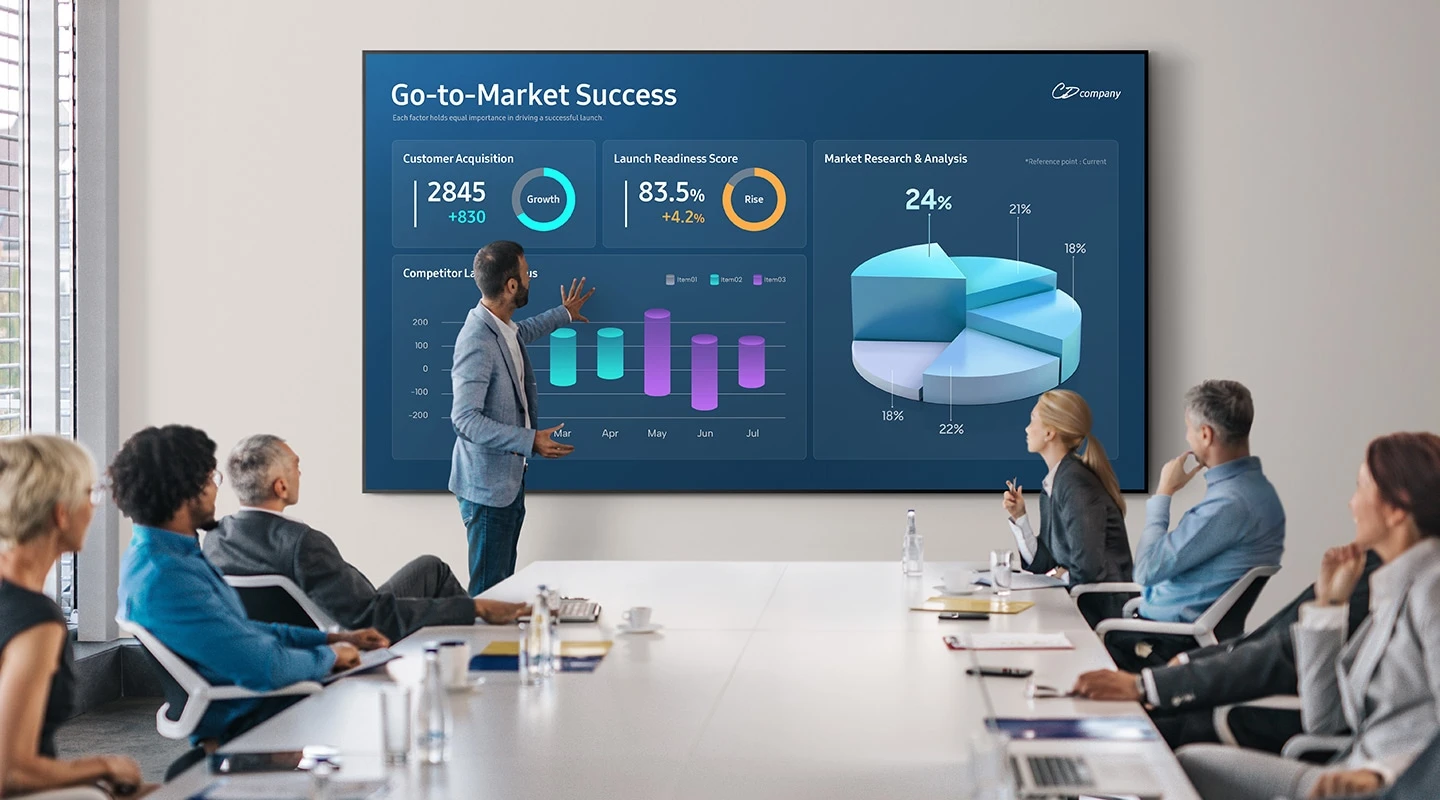

Supersized Screen
The expansive 115-inch screen elevates any visual, with high brightness ensuring vivid clarity, creating immersive product experiences in commercial spaces and enabling clearer, more engaging communication in business environments. With just a single standalone display, it delivers the large-scale impact typically achieved with multiple screens—offering a simpler, more seamless solution for bold visual expression.

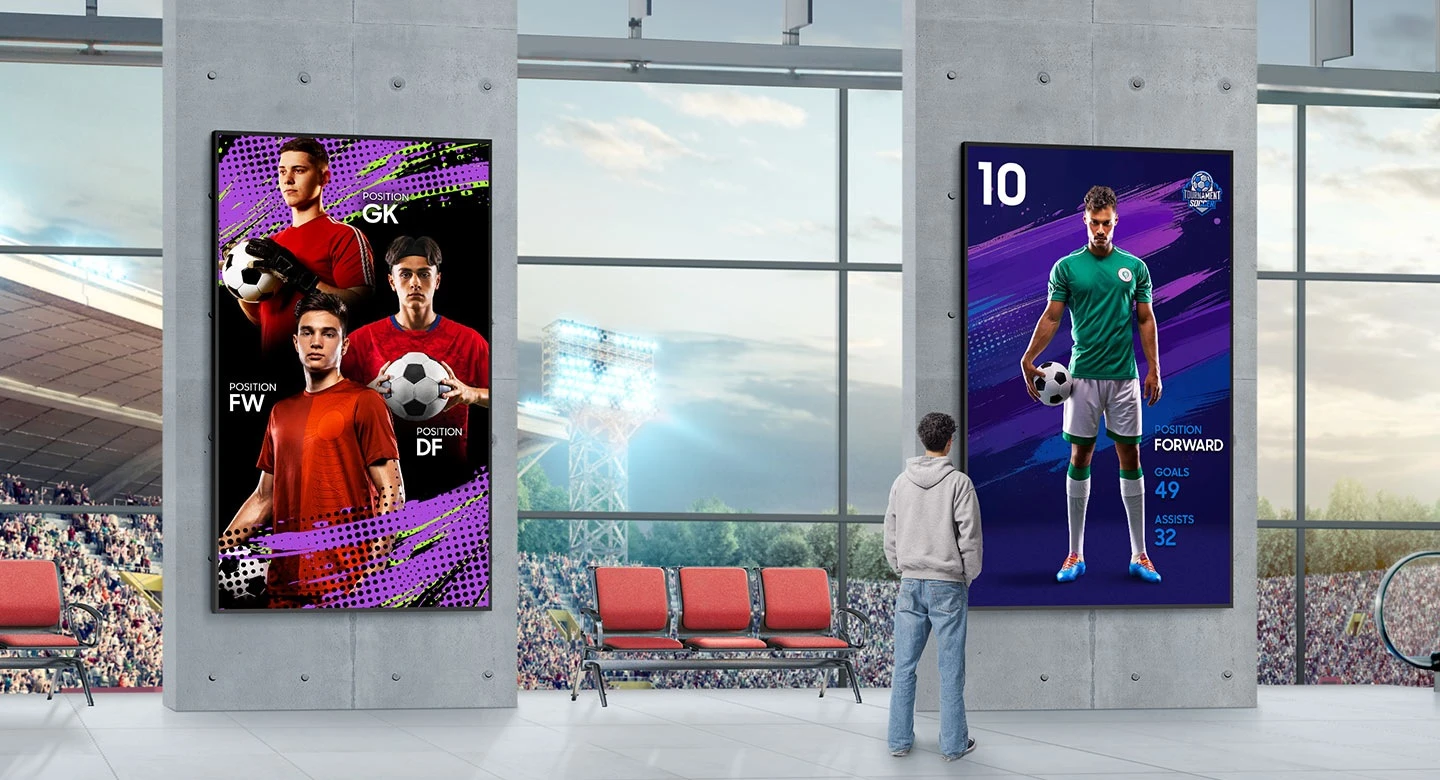

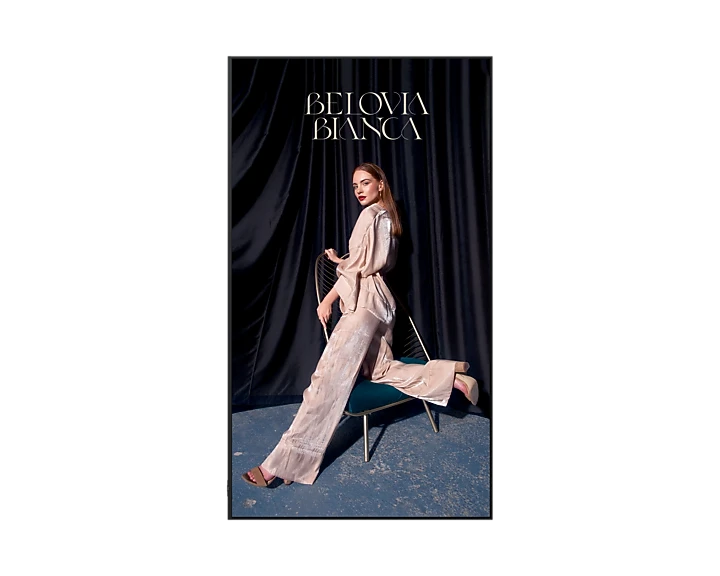

Portrait Installation
The QHFX offers both landscape and portrait installation, providing flexible deployment across a wide range of environments. Its vertical orientation brings full-length visuals—like life-sized product displays, fashion model shots, or tall-format brand videos—to life, expanding the possibilities for impactful large-scale displays.

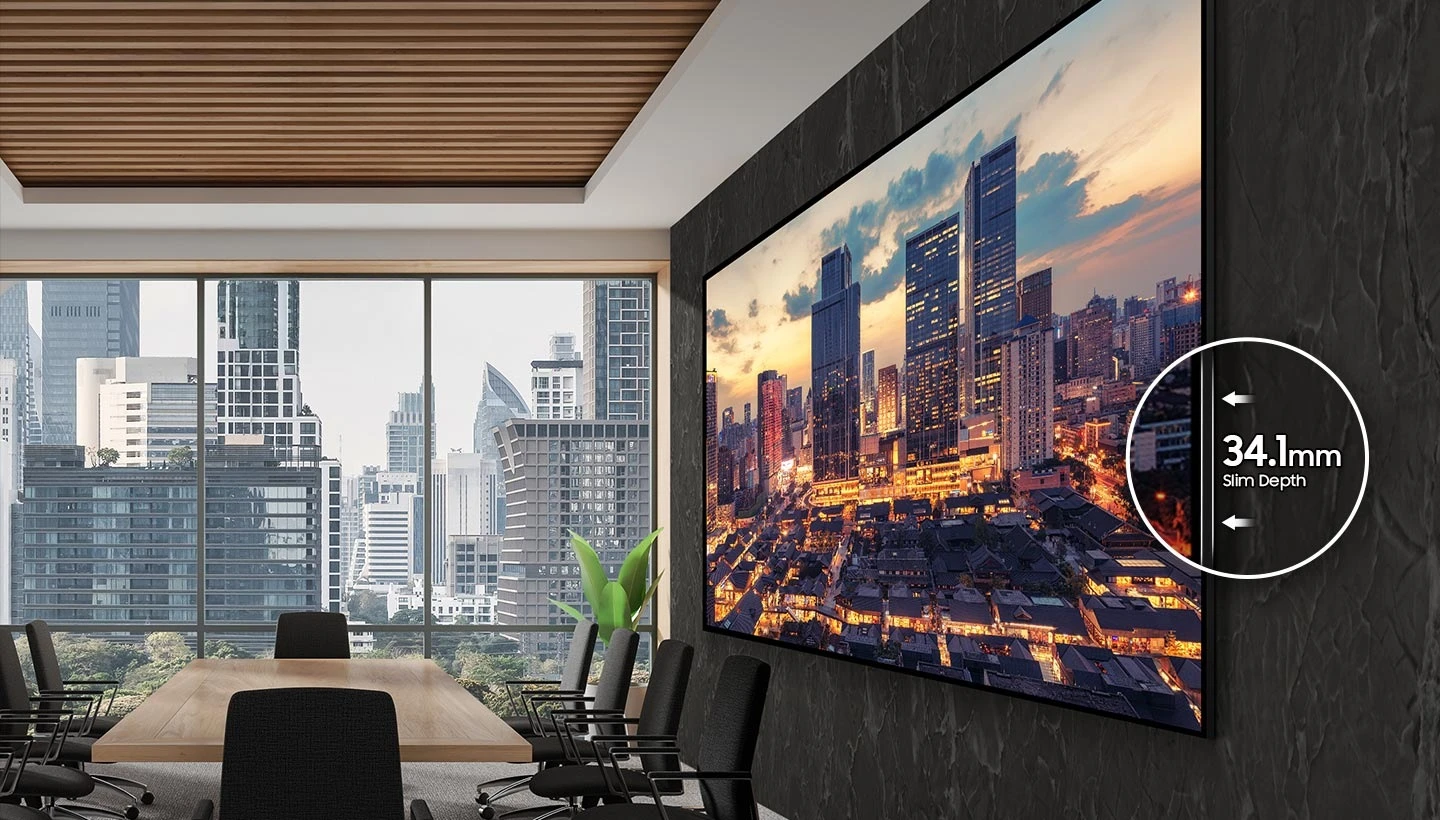

Super Slim Design
Despite its ultra-large 115-inch screen, the QHFX features an impressively slim profile at just 34.1mm. The refined depth enhances installation flexibility and elevates the overall aesthetic, making it perfect for modern environments where design matters as much as performance.

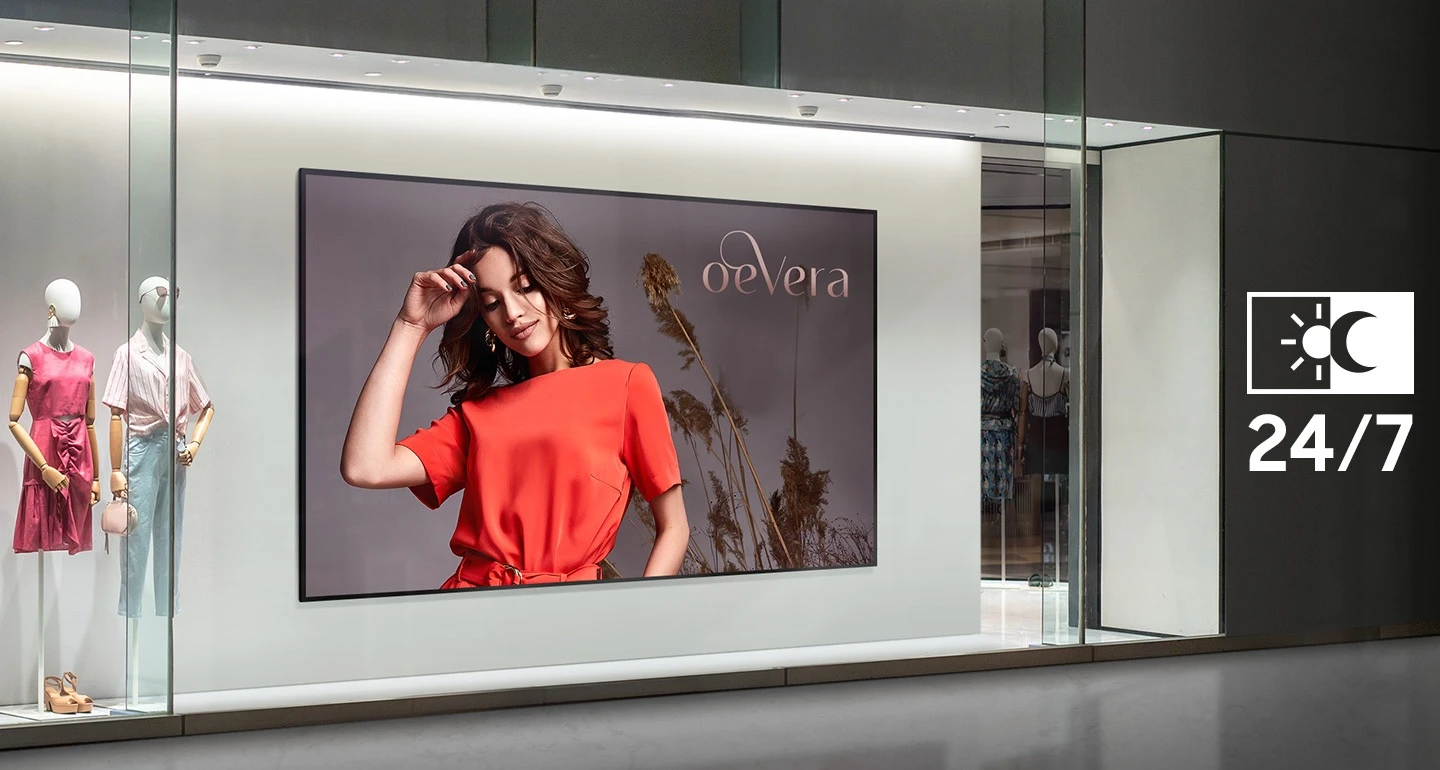

24 / 7 Operation
The QHFX delivers reliable performance every hour of the day. With commercial-grade durability and continuous operation support, it’s built to keep business running smoothly—no matter the time or setting.
60W 4.2.2ch Built-in Speakers
With a robust 60W 4.2.2 channel sound system, it delivers rich and well-balanced audio directly from the display. Without the need for additional speakers or sound bars, it supports a cleaner aesthetic and creates an immersive audio-visual experience—whether in a corporate boardroom or retail showroom.

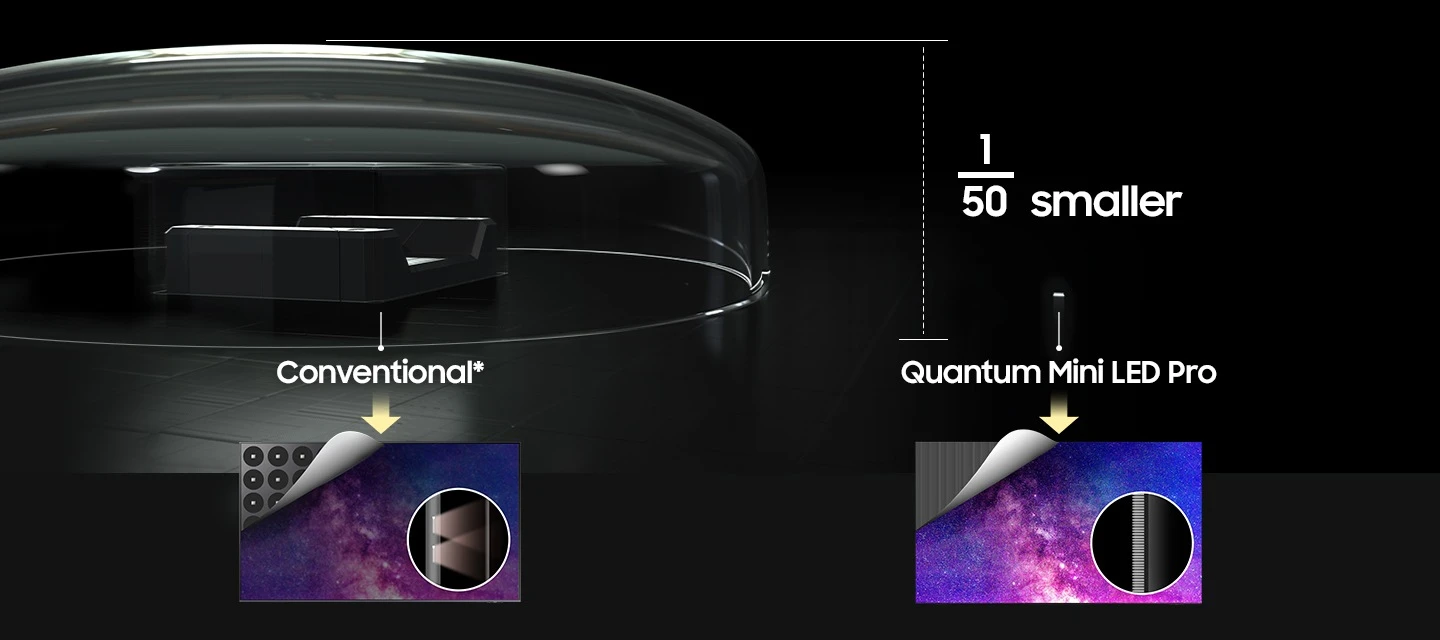

Quantum Mini LED Pro
Samsung’s most advanced Quantum Mini LED Pro is precisely controlled by Quantum Matrix Technology Pro. At just 1/50 the size of conventional LEDs, it enables ultra-fine light control with enhanced detail and contrast across both dark and bright scenes—ideal for business environments where visual clarity is critical.
AI Upscaling Pro
4K AI Upscaling Pro enhances lower-resolution content in real time, optimising clarity and detail for large-scale displays. With advanced AI-based processing, it delivers sharp, smooth visuals—ensuring professional-grade quality across a variety of business applications.
Technical specifications
- Diagonal Size 114.4818"
- Panel Type VA
- Resolution 4K (3840 x 2160)
- Pixel Pitch (HxV) 0.630 x 0.630 mm
- Brightness (Typ) 1000 nit
- Contrast Ratio 5,500:1
- Viewing Angle (Horizontal/Vertical) 178 / 178
- Response Time 6.5 (GTG)
- Color Gamut 93% (DCI-P3)
- Glass Haze 25%
- H-Scanning Frequency 15 - 135 kHz
- Maximum Pixel Frequency 1.188 GHz
- V-Scanning Frequency 24 - 120 Hz
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 24/7
- HDMI In 3
- DP In 1
- Version of HDMI 2.1
- Version of DP 1.4
- Version of HDCP 2.2
- USB 2 x USB-A
- IR In Yes
- Audio In No
- Audio Out Stereo Mini Jack
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- WiFi Yes
- Bluetooth Yes
- Power Supply AC 100 - 240 V (50/60 Hz)
- Power Consumption (On Mode) 836 W
- Power Consumption (Sleep Mode) 0.5 W
- Set Dimension (WxHxD) 2565.2 x 1467.6 x 34.1 mm
- Package Dimension (WxHxD) 2765.0 x 1652.0 x 250.0 mm
- Set Weight 83.7 kg
- Package Weight 133.6 kg
- Temperature 0 ~ 40 ℃
- Humidity 10 ~ 80 (Non-Condensing)
- VESA Mount 1000 x 600 mm
- Bezel Width 3 Bezel-less
- Bezel Color TITAN BLACK
- Frame Material Non-Glossy(Metal)
- Mount Slim Fit Wall-mount (Inbox)
- Stand Yes(Inbox)
- OS Version Tizen 8.0
- Flash Memory Size 16GB
- Energy Efficiency Class G
- EMC Class A
- Safety 62368-1, 60950-1
