Samsung 5K Signage QPD 105"
105-inch 21:9 ultra-wide signage: 5K (5,120 x 2,160) resolution, non-glare panel, USB-C, OPS slot and 24/7 operation.
Samsung
QPD is designed to show multiple pieces of content in one view on a 105-inch, 21:9 ultra-wide screen. 5K (5,120 x 2,160) resolution keeps detailed information legible in meeting rooms and control centres.
A non-glare surface, wireless screen sharing with SMARTVIEW+, single-cable USB Type-C connectivity and an OPS slot make collaboration easy. Slim depth, even bezel, Home UI, Smart Calibration, SmartThings Pro and Samsung VXT simplify installation and management.
Featured features
5K (5,120 x 2,160) resolution
Non-glare surface
24/7 operation support
USB Type-C and OPS slot
SMARTVIEW+ wireless sharing
Tizen 8.0
Samsung VXT and SmartThings Pro

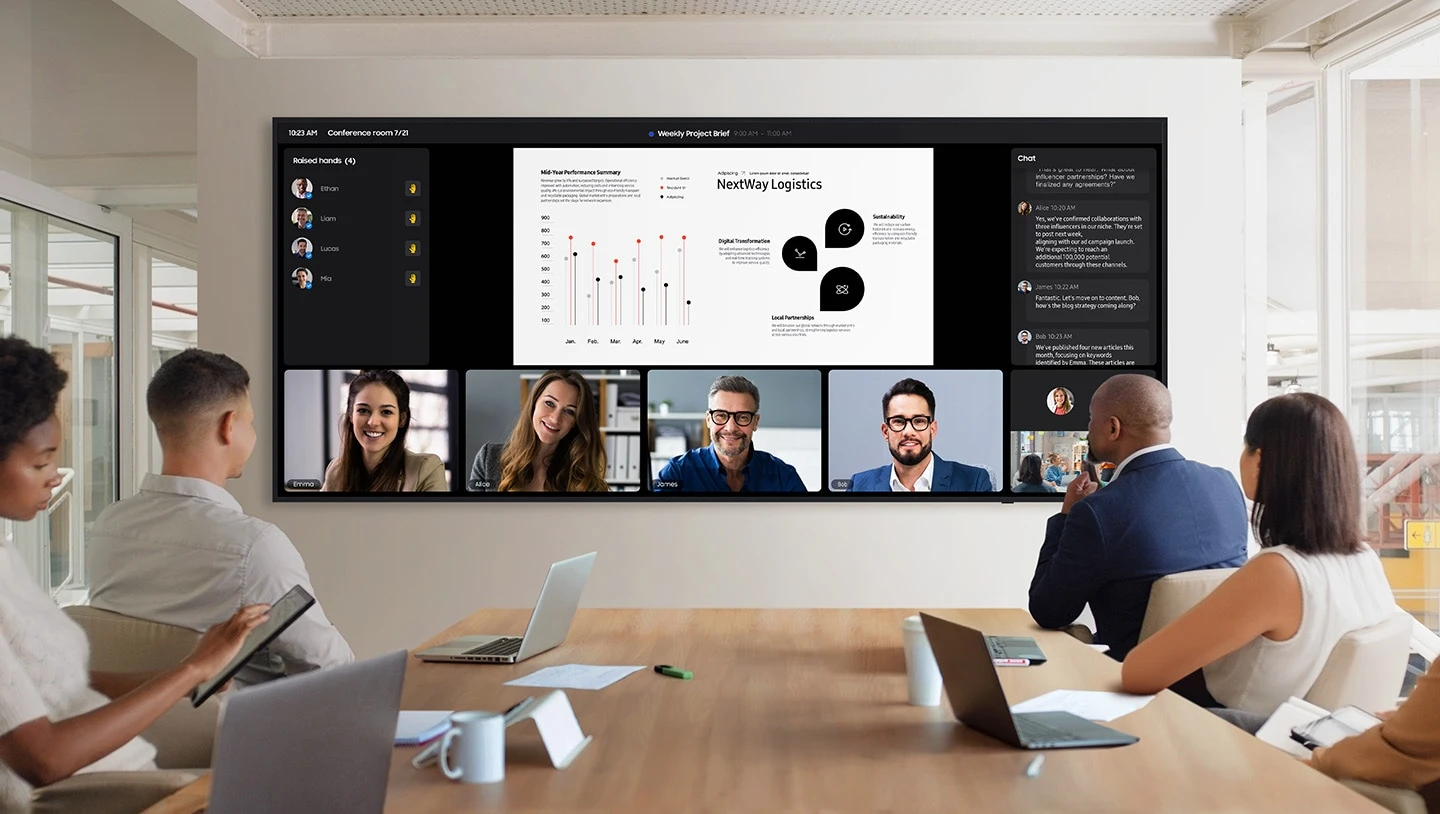

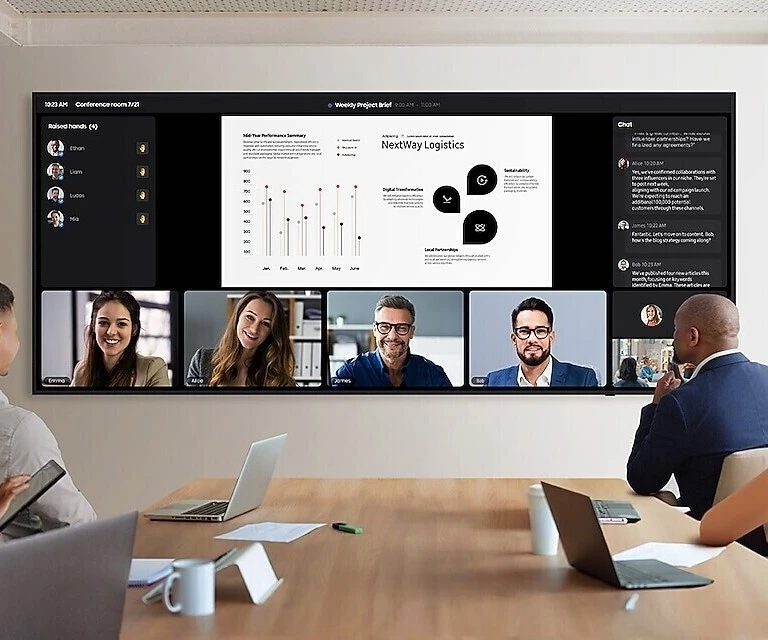

Scale up your business with a supersized screen
Take your meetings to the next level with the 105-inch supersized display. Its expansive, ultra-wide screen eliminates the need for multiple displays, offering a seamless, uninterrupted view without the distracting borders between screens.

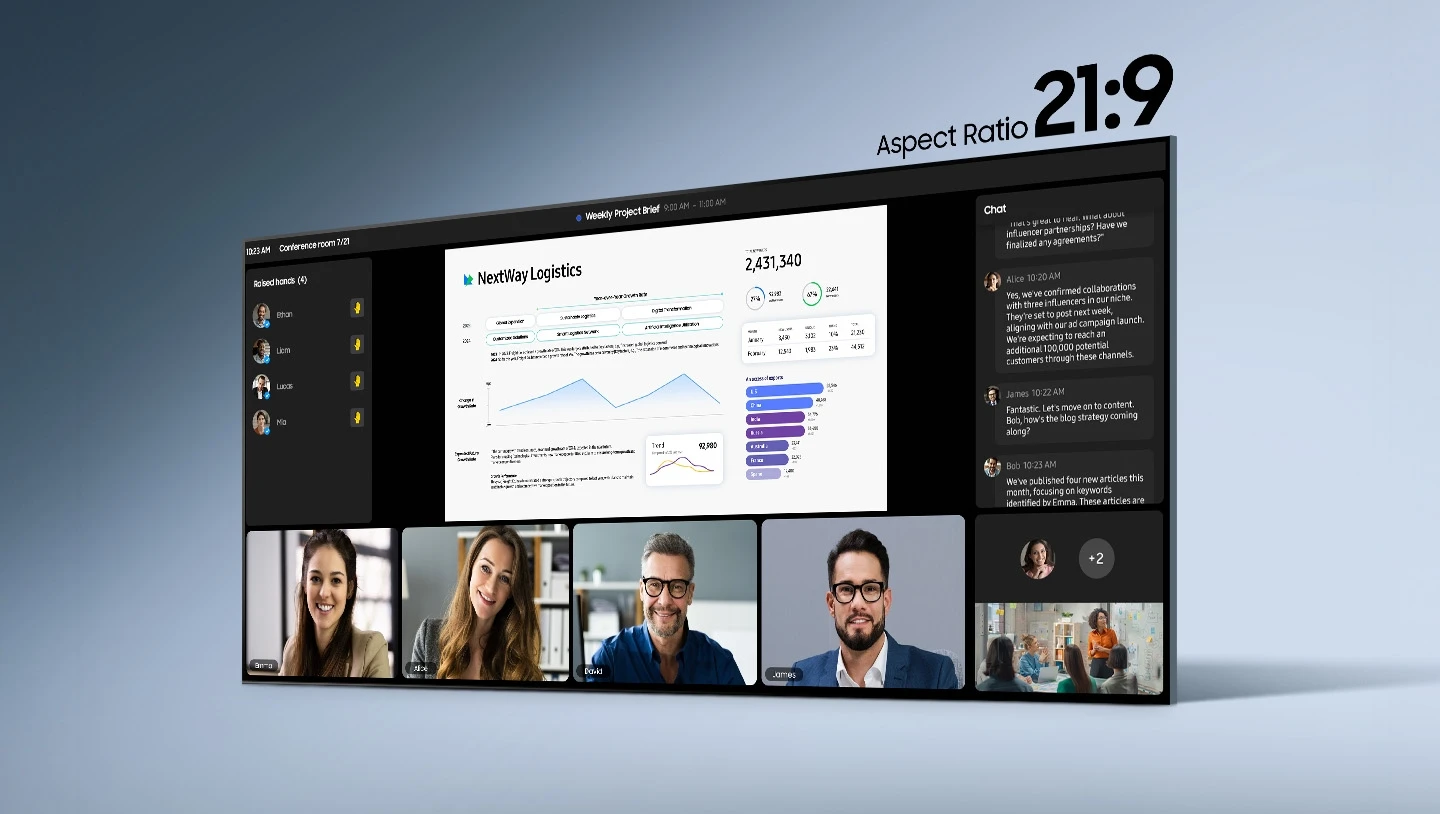

21:9 Ultra-Wide Screen
The QPDX-5K’s 21:9 aspect ratio is designed for today’s modern meeting spaces and optimised for the video conference layout. Whether attendees are in-person or remote, the display ensures equal engagement, providing a truly immersive meeting environment that fosters collaboration.

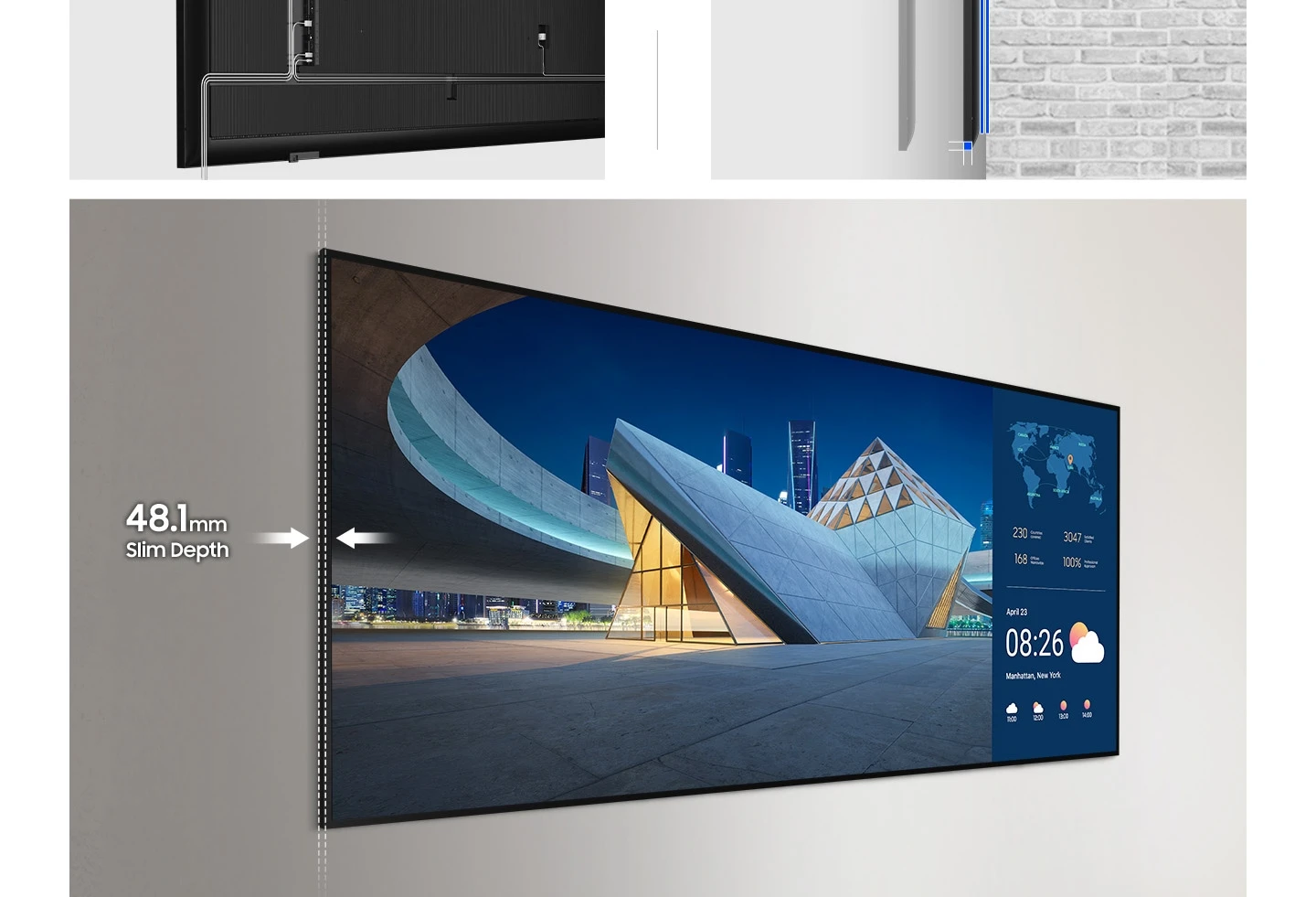

Slim Depth
Elevate your workspace with a sleek design that maximises both performance and space. At just 48.1mm in depth, this 105-inch display is the slimmest in its class. Outward-facing ports enable easy, flush wall mounting, making it ideal for meeting rooms that require both elegance and efficiency.
5K resolution
Experience enhanced collaboration with ultra-clear 5K resolution, delivering sharper images and finer details. A wide viewing angle ensures every participant enjoys clear, vivid visuals, so no one misses a detail, regardless of their position.

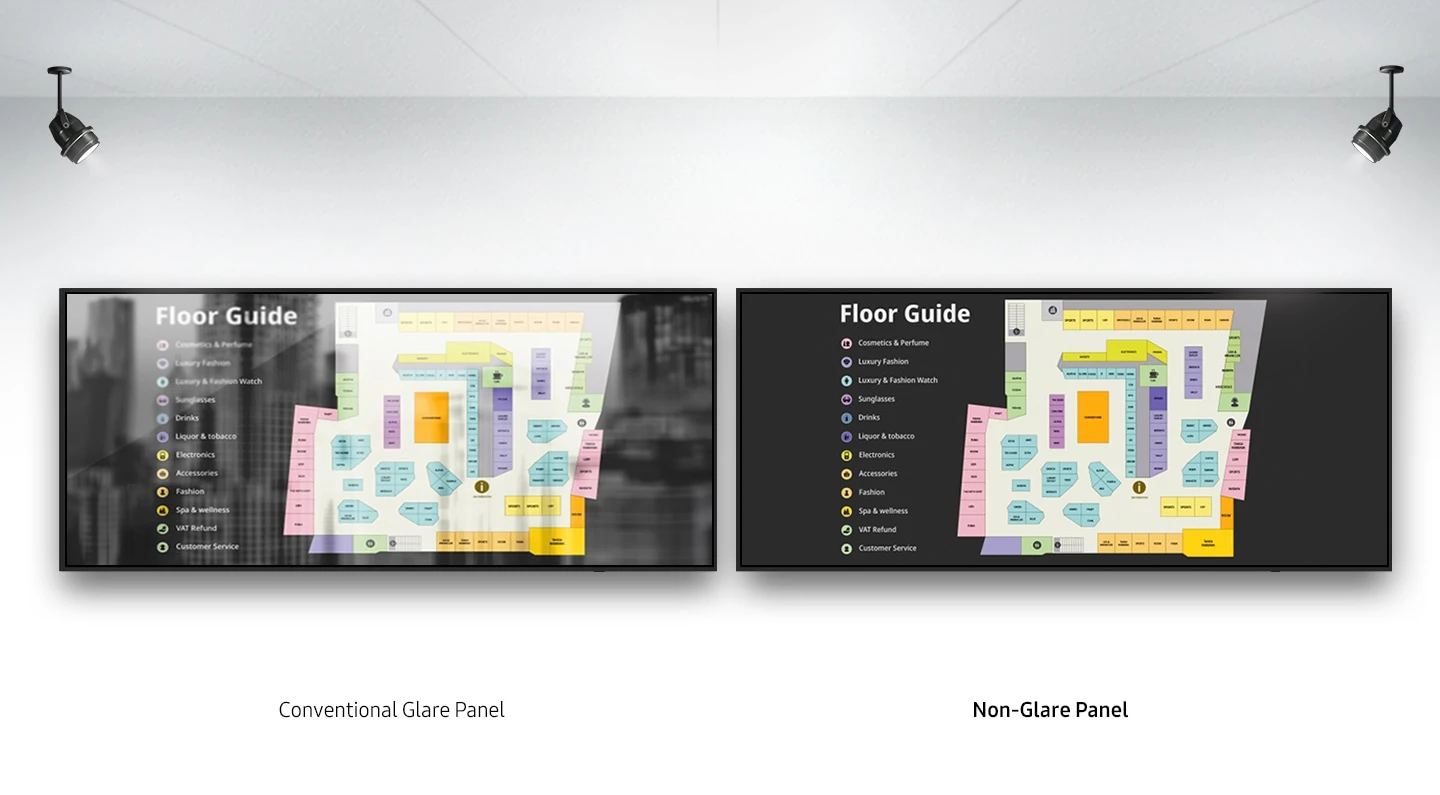

Non-Glare
Reliable, non-glare panels provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in the critical locations.

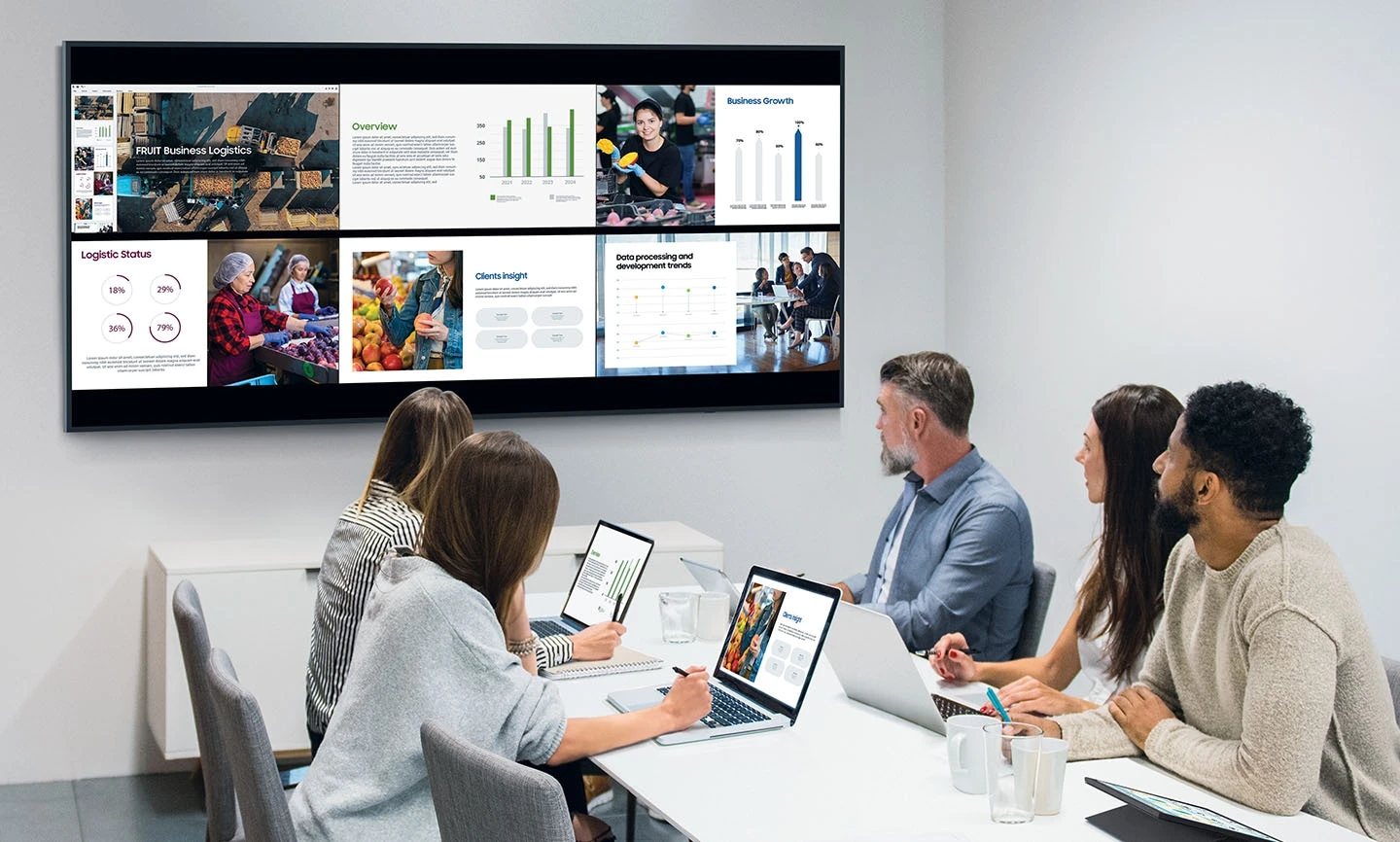

SMARTVIEW+
Enjoy wireless screen sharing for seamless collaboration. Start sharing right from the beginning of a meeting and switch between screens with a single click. The QPDX-5K supports up to 10 screens at once.

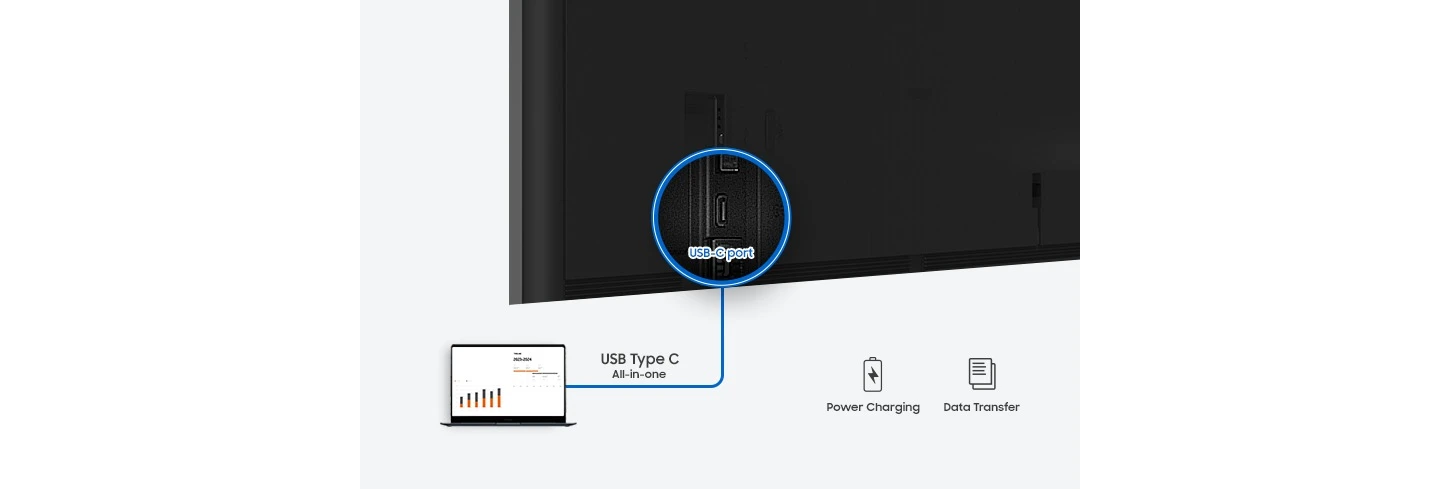

USB Type-C
Connectivity is enhanced with a USB-C port, allowing users to mirror screens and charge devices at the same time. A single connection through the USB Type-C port ensures seamless, captivating, and interactive communications.

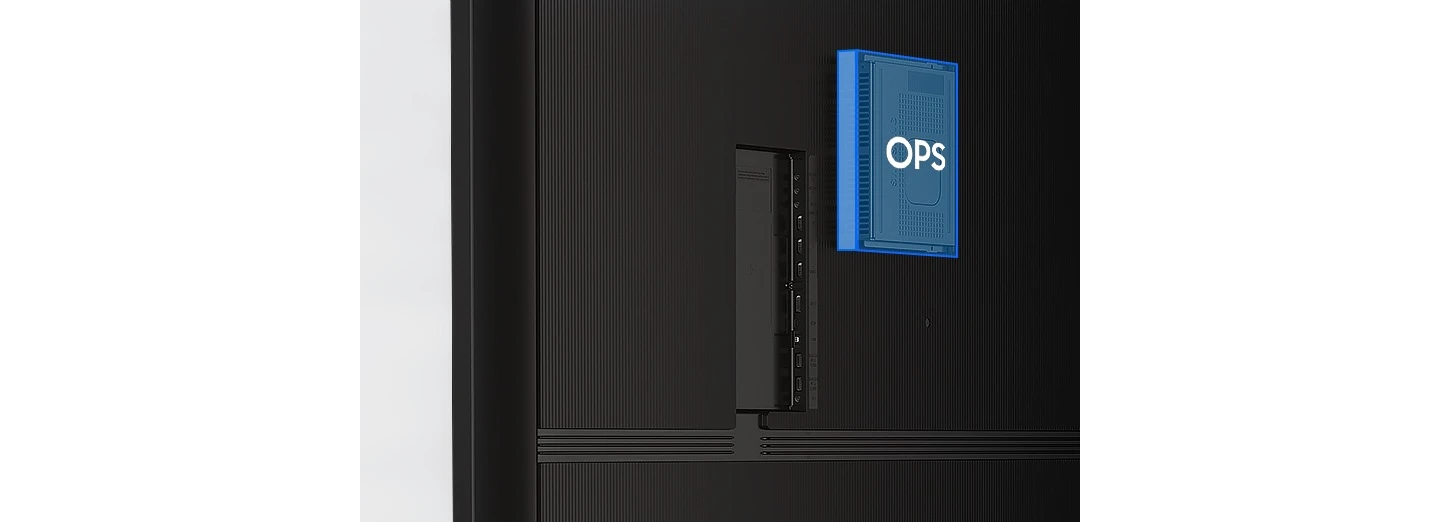

OPS (Open Pluggable Specification)
The QPDX-5K’s Open Pluggable Specification (OPS) transforms the display into a Windows device, eliminating the need for additional PCs or devices. With OPS, users can easily run their preferred software directly on the QPDX-5K, enhancing productivity and flexibility in meetings.
Technical specifications
- Diagonal Size 105"
- Panel Type VA
- Resolution WUHD (5120 x 2160)
- Pixel Pitch (HxV) 0.1595 x 0.4785 mm
- Brightness (Typ) 500 nit
- Contrast Ratio 4,000:1
- Viewing Angle (Horizontal/Vertical) 178 / 178
- Response Time 6 (GTG)
- Color Gamut 72%(NTSC)
- Glass Haze 25%
- H-Scanning Frequency 30~81kHz
- Maximum Pixel Frequency 742.5MHz
- V-Scanning Frequency 48~75Hz
- Contrast Ratio (Dynamic) Mega
- Operation Time Support 24/7
- HDMI In 3
- DP In 1
- Version of HDMI 2.1
- Version of DP 1.4
- Version of HDCP 2.2
- USB Type-A(2), Type-C(1)
- IR In Yes
- Audio In No
- Audio Out Stereo Mini Jack
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- WiFi Yes
- Bluetooth Yes
- Power Supply AC 100 - 240 V (50/60 Hz)
- Power Consumption (On Mode) 550 W
- Power Consumption (Sleep Mode) 0.5 W
- Set Dimension (WxHxD) 2484.3 x 1068.0 x 48.1 mm
- Package Dimension (WxHxD) 2668.0 x 1190.0 x 275.0 mm
- Set Weight 55.6 kg
- Package Weight 78.1 kg
- Temperature 0 ~ 40 ℃
- Humidity 10 ~ 80 (Non-Condensing)
- VESA Mount 1000 x 400 mm
- Bezel Width 14.8mm (Even)
- Bezel Color Slate Black
- Frame Material Non-Glossy(Metal)
- OS Version Tizen 8.0
- Flash Memory Size 16GB
- Energy Efficiency Class G
- EMC Class A
- Safety 62368-1, 60950-1
